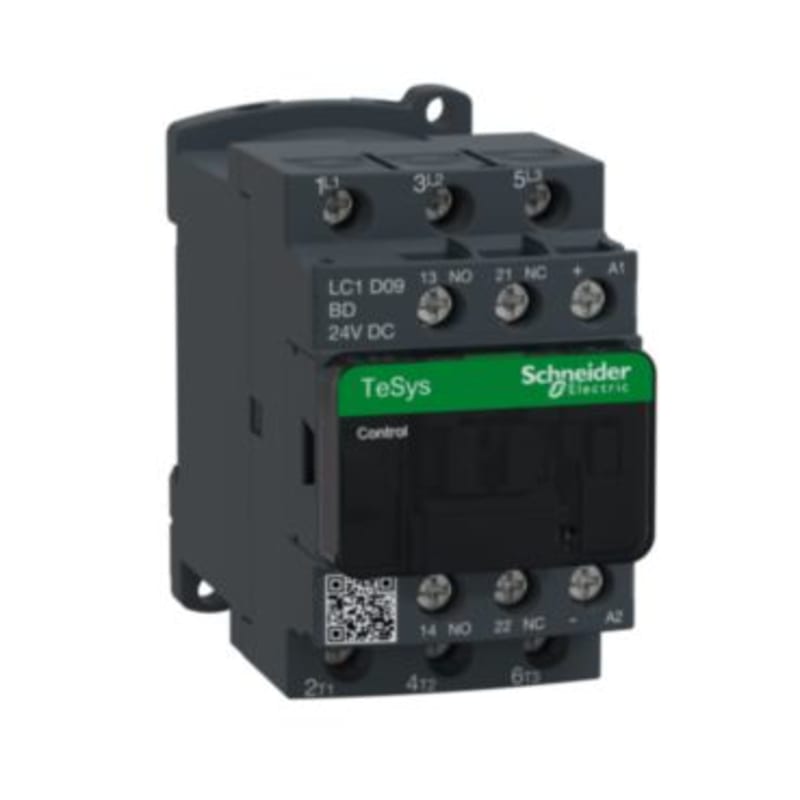

Schneider TeSys D Contactor LC1D09 9A 3P 24V DC Coil
Schneider Electric · Switchgear & Protection · Contactors
Schneider Electric LC1D09BD — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. TeSys D LC1D09 three-pole DC-coil contactor, 9A / 4kW at 400V AC-3, 24V DC coil, 1NO+1NC auxiliary, screw-clamp terminals. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units. Manufacturer: Schneider Electric. Manufacturer part number: LC1D09BD. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- LC1D09BD
- HS code
- 8536.50
- Material
- Thermoplastic housing, silver alloy contacts
- Temperature range
- -25°C to +55°C (ambient)
- Standard
- IEC 60947-4-1; UL 508
Compatibility
DC coil version (low-consumption electronic). Compatible with LAD4/LADN aux blocks, LAEN11 interlock, LRD thermal overloads.
Standards
Approvals
