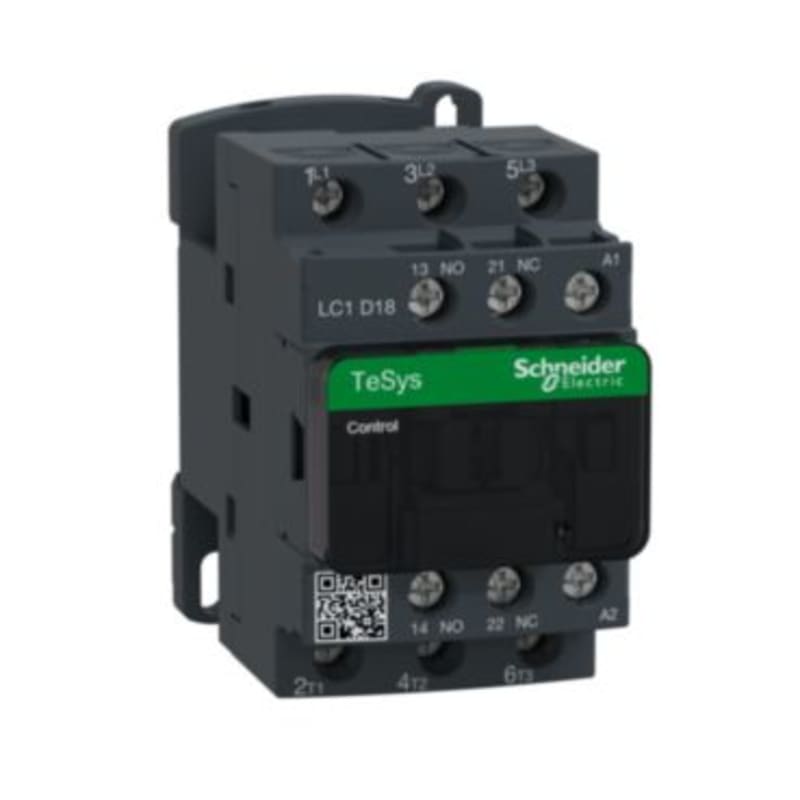

Schneider TeSys D Contactor LC1D18 18A 3P 24V AC Coil
Schneider Electric · Switchgear & Protection · Contactors
Schneider Electric LC1D18B7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. TeSys D LC1D18 three-pole AC contactor, 18A / 7.5kW at 400V AC-3 duty, 24V AC 50/60Hz coil, 1NO+1NC integrated auxiliaries, screw terminals. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units. Manufacturer: Schneider Electric. Manufacturer part number: LC1D18B7. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- LC1D18B7
- HS code
- 8536.50
- Material
- Thermoplastic housing, silver alloy contacts
- Temperature range
- -25°C to +55°C (ambient)
- Standard
- IEC 60947-4-1; UL 508
Compatibility
Compatible with LAD4 aux blocks, LADN add-on contacts, LAEN11 interlock; pairs with LRD16 thermal overload.
