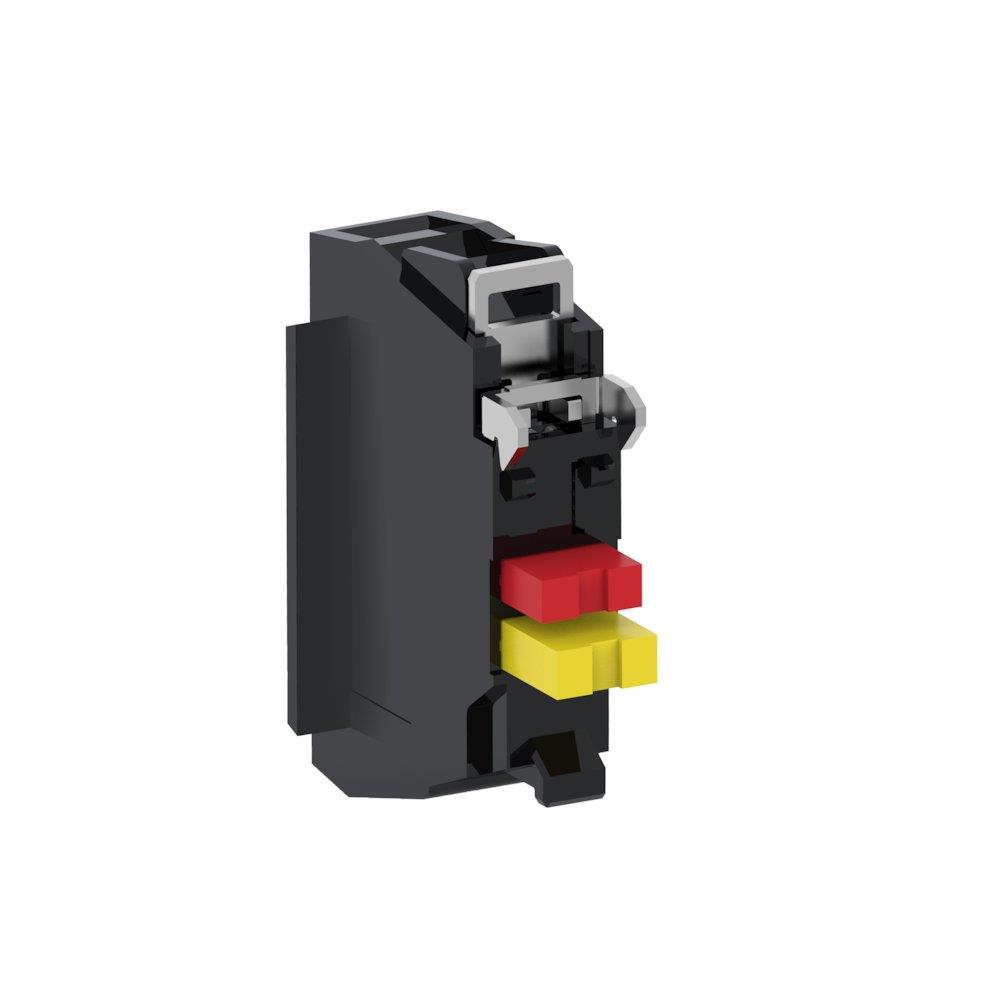

Schneider ZBE Contact Element with screw terminal - Harmony XB4, 1NC

Schneider ZBE Contact Element with screw terminal. Contact elements (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, contact type 1NC. Supplied under manufacturer part number ZBE302, EAN 3606482035027, HS code 8536.50, country of origin Indonesia.

Product type

Contact elements

Product group

Push buttons and signal units

Series

Harmony XB4

Contact type

1NC

Sales unit

Pack

Carbon footprint (EPD)

0.0899 kg CO2e per pcs

Country of origin

Indonesia

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

ZBE302

Range of product

Harmony XB4; Harmony XB5

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

5

IP degree of protection

IP20 conforming to IEC 60529

Contact operation

Slow-break

Contact block type

Single

Contacts usage

Monitoring contact

Connections - terminals

Screw clamp terminals, = 1 x 0.34 mm² without cable end conforming to IEC 60947-1

CAD overall width

10 mm

CAD overall height

41 mm

CAD overall depth

26 mm

Product weight

0.013 kg

Contacts type and composition

1 NC monitoring contact

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

5 N NC changing electrical state

Mechanical durability

300000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

6 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-7) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 3.4 mA in clean environment conforming to IEC 60947-5-4

Mounting of block

Front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-1; JIS C8201-5-1; GB/T 14048.5; BS EN 60947-5-1; GOST IEC 60947-5-1

Product certifications

CSA; EAC; BV; DNV; CE; LROS (Lloyds register of shipping); CCC; UL listed; CB Scheme; UKCA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

210

Warranty (in months)

18

EAN

3606482035027

HS Code

8536.50
