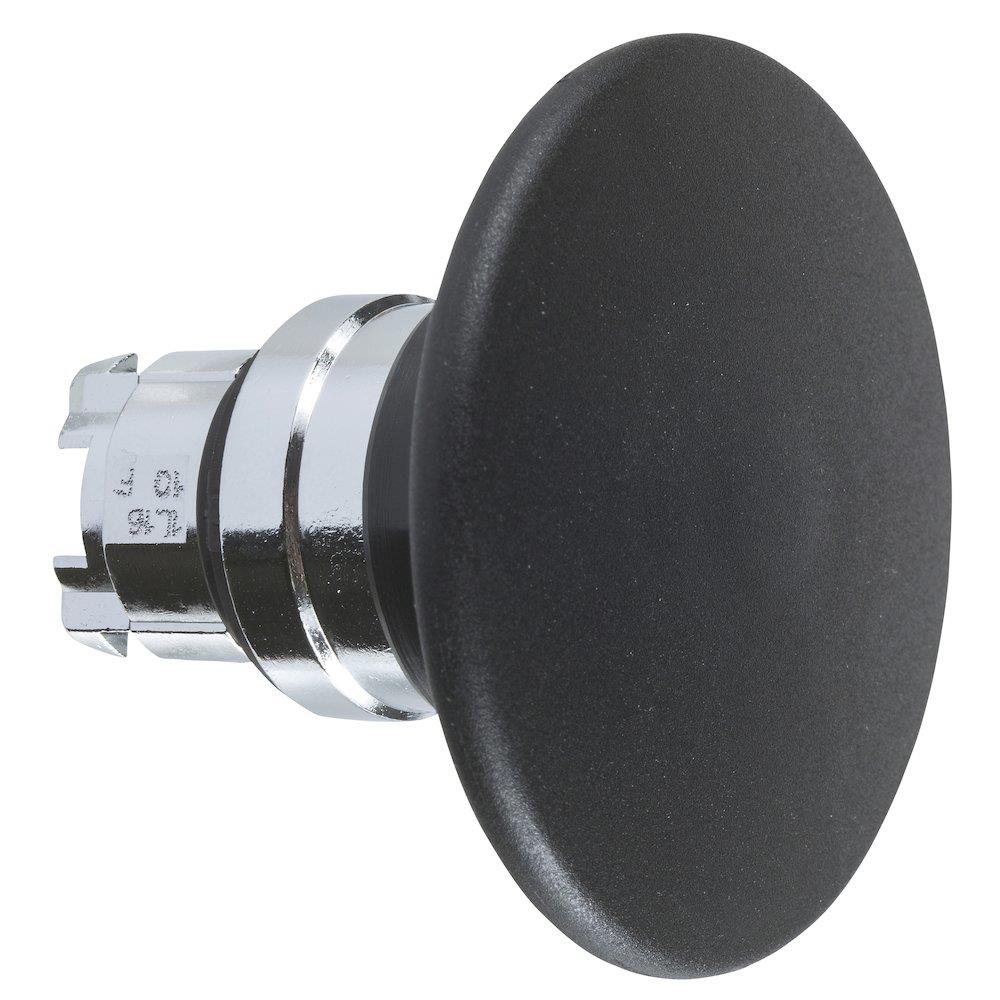

Schneider ZB4 Paddle Actuator Head - Harmony XB4, 60mm, black, Push - Drej
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB4 Paddle Actuator Head. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, diameter 60 mm, color Black, operation Pressure - Drej. Supplied under manufacturer part number ZB4BS62, EAN 3389110888751, HS code 8538.90, country of origin Czechia.
Technical Specifications
- Product type
- Pedal pressure and emergency stop button
- Product group
- Push buttons and signal units
- Series
- Harmony XB4
- Diameter
- 60 mm
- Color
- Black
- Operation
- Pressure - Drej
- Carbon footprint (EPD)
- 0.4015 kg CO2e per pcs
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- ZB4BS62
- Range of product
- Harmony XB4
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- latching
- Reset
- Turn to release
- Operator profile
- Black mushroom Ø 60 mm, unmarked
- CAD overall width
- 60 mm
- CAD overall height
- 60 mm
- CAD overall depth
- 57 mm
- Product weight
- 0.09 kg
- Mechanical durability
- 500000 cycles
- Electrical composition code
- C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C10 for <4 contacts using single and double blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- EN/IEC 60947-5-4; UL 508; EN/IEC 60947-5-5; EN/IEC 60947-1; JIS C8201-5-1; EN/IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 320
- Warranty (in months)
- 18
- EAN
- 3389110888751
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110888751
- MPN ZB4BS62
Product Documentation
