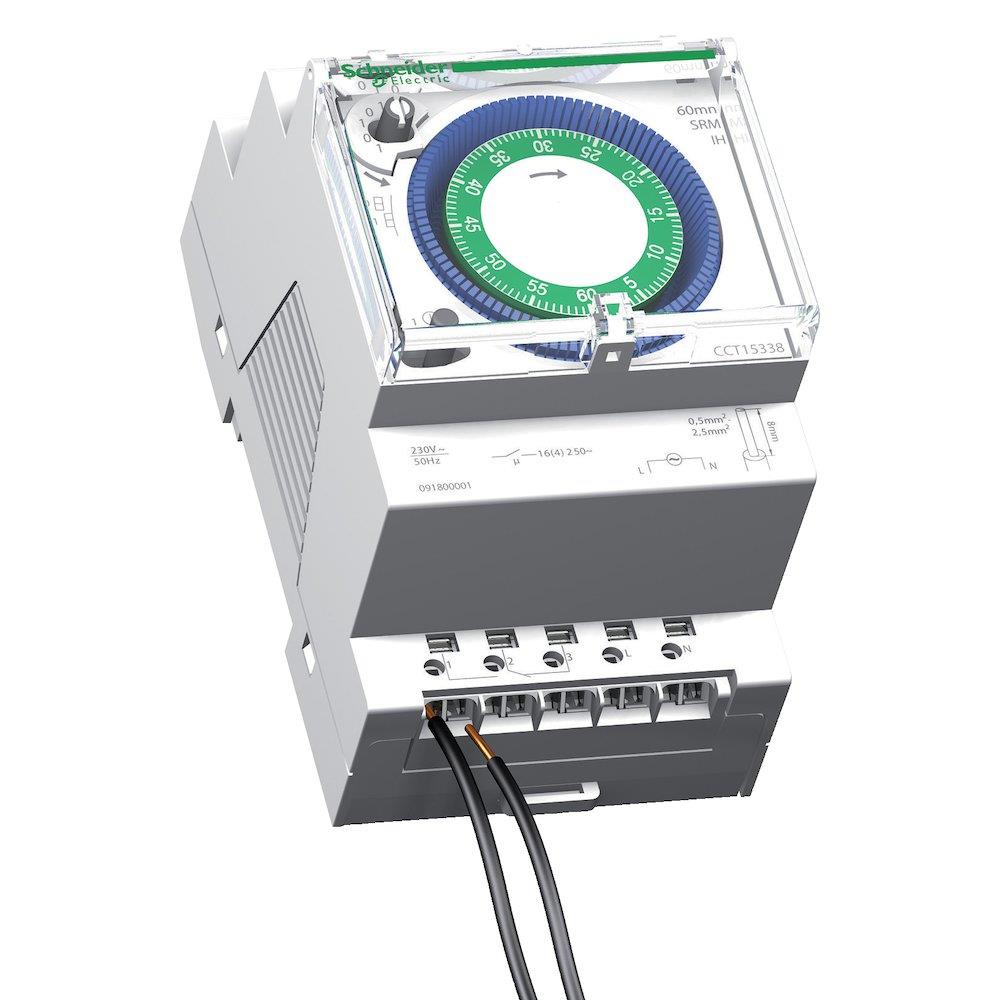

Schneider ACTI9 IH Mechanical timer - 230V, 54

Schneider Acti9 IH Mechanical timer. Time and function relays (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, module size 54. Supplied under manufacturer part number CCT15338, EAN 3606480179563, HS code 9107.00, country of origin Germany.

Product type

Time and function relays Product group: Components for panels and boxes Voltage: 230 V Module size: 54 REACH SVHC substance above 0.1%: Lead, Diarylmethane, Diboron-trioxide, Lead-monoxide, Octrizole Carbon footprint (EPD): 1.7666 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 91070000 HS code: 9107.00 Manufacturer part number: CCT15338 range of product: Acti9 Product name: Acti9 IH Device short name: IH Product or component type: Mechanical time switch Number of channels: 1 Function available: Manual time changeover Device application: Building Load type: 230 V AC halogen lamp 1000 W; 230 V AC incandescent lamp 1100 W; 230 V AC fluocompact lamp 600 VA; Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF; Compact fluorescent lampelectronic ballast 25 W; LED lamp < 2 W 20 W; LED lamp 2...8 W 180 W Cycle duration: 60 min Maximum number of switchings: 48 on - 48 off minimum interval duration: 37.5 s Type of setting: Manual time changeover Power consumption in W: 0.9 W Maximum switching current: 10 A - 250 V AC pf = 1; 4 A - 250 V AC pf = 0.6 [Ue] rated operational voltage: 230 V AC - 15...10 % at 50 Hz [Uimp] rated impulse withstand voltage: 4 kV Mounting support: DIN rail 9 mm pitches: 6 Colour tint: White (RAL 9003) Connections - terminals: Screwless terminals Clamping connection capacity: 2 x 0.5...2 .5 mm² Width: 54 mm Height: 90 mm Depth: 66 mm Product weight: 0.184 kg Standards: EN 60730-1 Ambient air temperature for operation: -20…55 °C Pollution degree: 2 IP degree of protection: IP20 conforming to EN 60529 Number of Units in Package 1: 1 Number of Units in Package 2: 36 Warranty (in months): 18 EAN: 3606480179563

HS Code

9107.00

• EAN 3606480179563
• MPN CCT15338
