Schneider ZB5 Push Button - Harmony XB5

Schneider ZB5 Push Button. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB5. Supplied under manufacturer part number ZB5AA71123, EAN 3389119603485, HS code 8538.90, country of origin France.

Product type

Push buttons

Product group

Push buttons and signal units

Series

Harmony XB5

Carbon footprint (EPD)

0.1484 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB5AA71123

Range of product

Harmony XB5

Product or component type

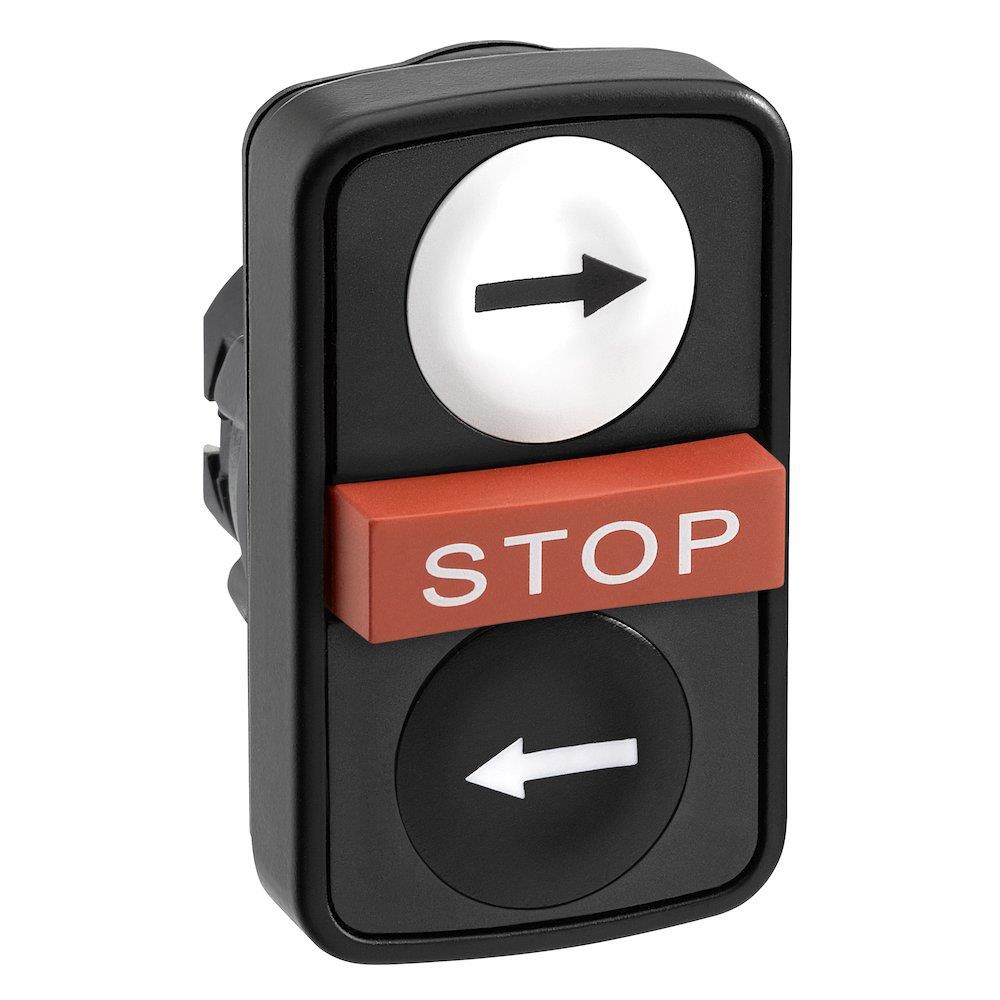

Head for triple-headed push-button

Device short name

XB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

2 flush - 1 central projecting STOP push-buttons

Operators description

White ''right arrow'' - black ''left arrow'' - red ''STOP''

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

35 mm

Product weight

0.023 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Mechanical durability

1000000 cycles

Station name

XALD 1 cut-out

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

EAN

3389119603485

HS Code

8538.90
