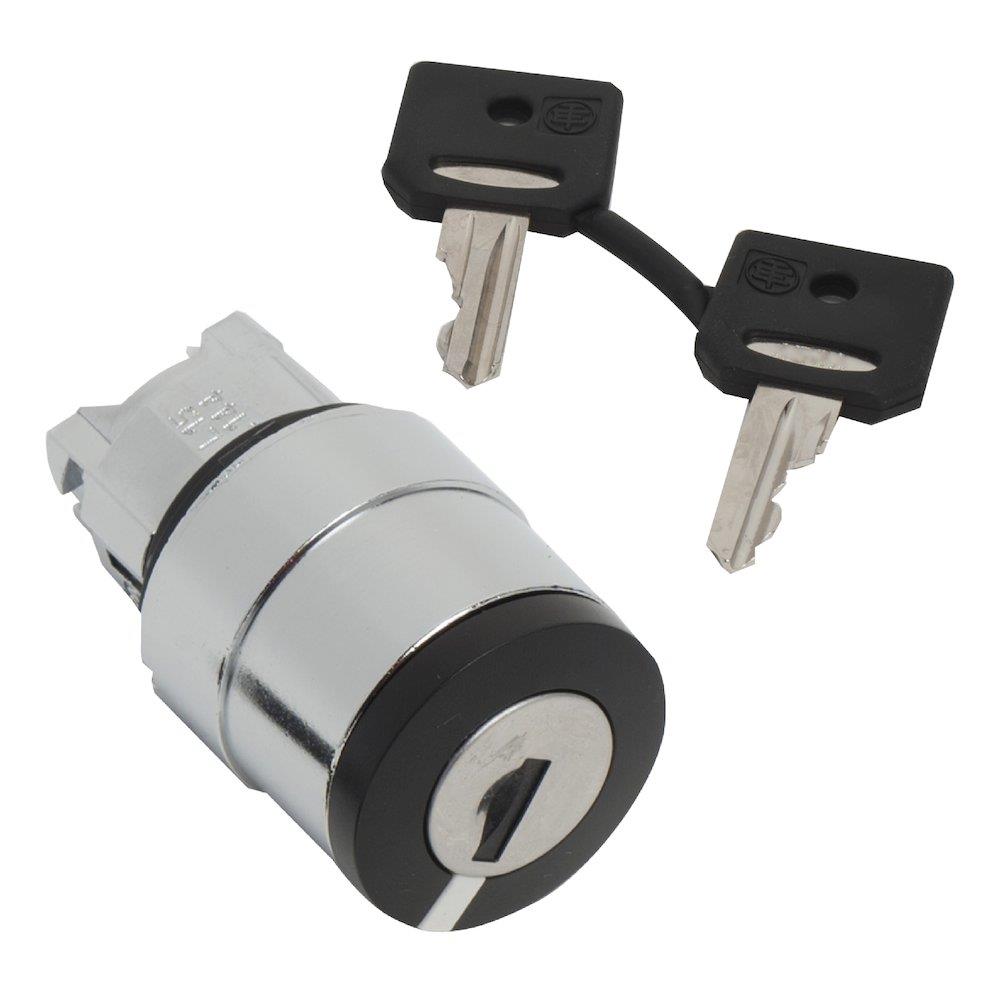

Schneider ZB4 Key Handle - Harmony XB4, 2PCS 3389110121377
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB4 Key Handle. Rotary switches and key switches (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, number of posts 2 pcs. Supplied under manufacturer part number ZB4BG214, EAN 3389110121377, HS code 8538.90, country of origin France.
Technical Specifications
- Product type
- Rotary switches and key switches
- Product group
- Push buttons and signal units
- Series
- Harmony XB4
- Number of posts
- 2 pcs
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.8332 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- ZB4BG214
- Range of product
- Harmony XB4
- Product or component type
- Head for key selector switch
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Operator profile
- Black key switch
- Type of operator
- Stay put
- Operator position information
- 2 positions 90°
- Type of keylock
- Key 520E
- Key withdrawal position
- Left
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 72 mm
- Product weight
- 0.098 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 1000000 cycles
- Electrical composition code
- C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- Standards
- EN/IEC 60947-5-1; GB 14048.5; EN/IEC 60947-1; CSA C22.2 No 14; EN/IEC 60947-5-5; UL 508; EN/IEC 60947-5-4
- Product certifications
- CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
- EAN
- 3389110121377
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110121377
- MPN ZB4BG214
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60, 1A, 3P, C
M9F42301
Schneider Electric
Schneider RESI9 CX Group Panel pre-assembled - 4, 1, 30
R9HPDK42074EV
Schneider Electric
Schneider ComPact NSXm Front Cover
LV426946
Schneider Electric
Schneider NSX100H Maximum breaker - 3606481998491
C10H3TM080
Schneider Electric
Schneider ClimaSys CA Filter - 220mm, 80mm, Synthetic, NSYCAF190
Schneider Electric

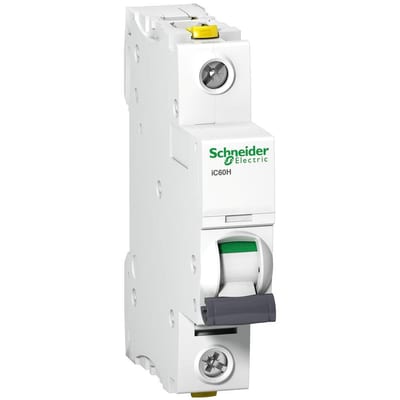

Schneider ACTI9 IC60H Circuit breaker - ACTI9 IC60, 1A, 1P, D
A9F08101
Schneider Electric

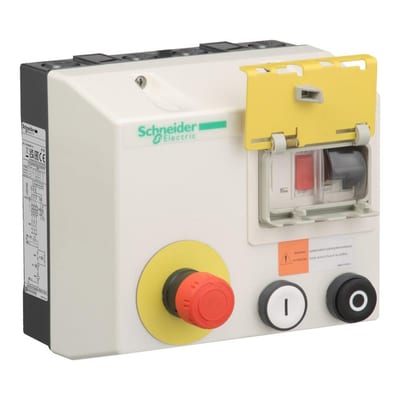

Schneider LG7D Motor Starter - 220V, 7.5kW, 65
LG7D18M720
Schneider Electric

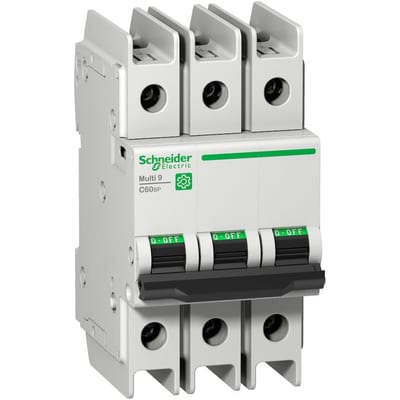

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60, 45A, 3P, C
