Product Description

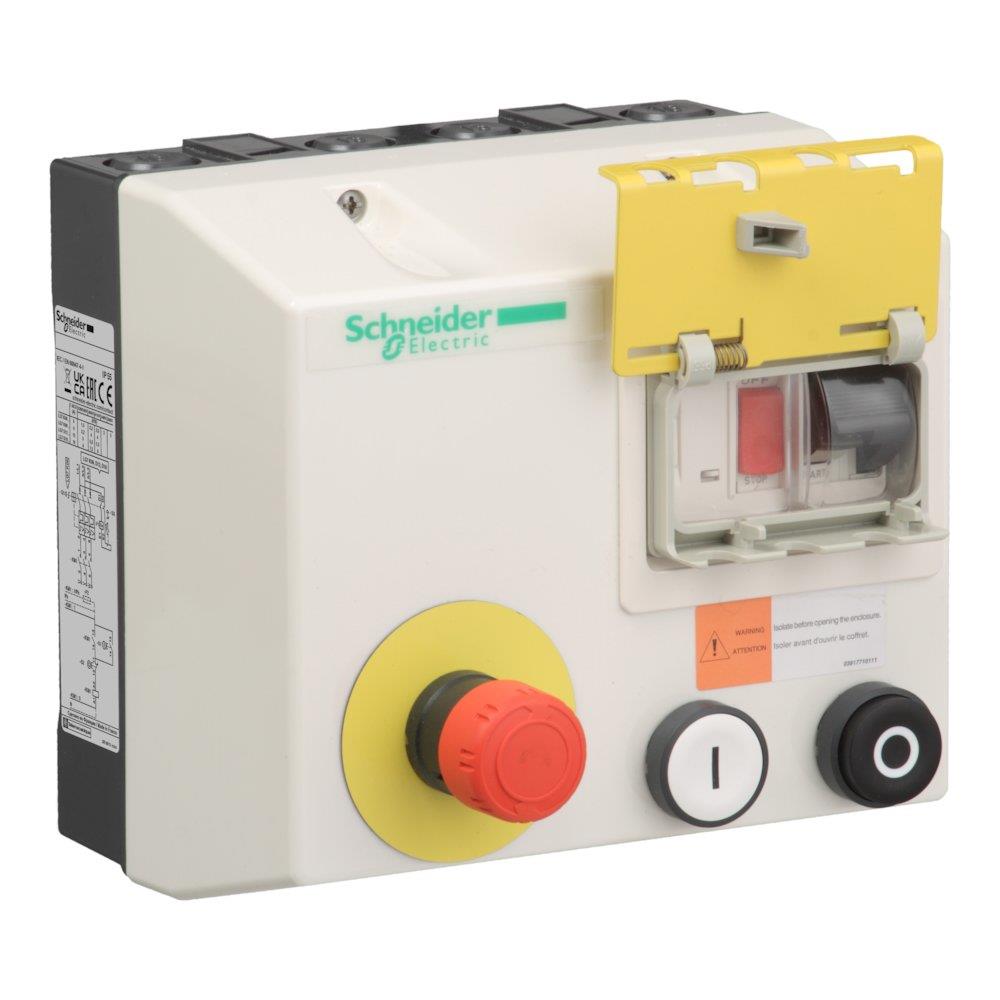

Schneider LG7D Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 220 V, power 7.5 kW, protection class (ip) 65. Supplied under manufacturer part number LG7D18M720, EAN 3389110657081, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 220 V
- Power
- 7.5 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 19.3974 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG7D18M720
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG7D
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Circuit-breaker
- Motor power kW
- 4 kW at 220/230 V AC 50/60 Hz; 9 kW at 440 V AC 50/60 Hz; 7.5 kW at 400/415 V AC 50/60 Hz
- Thermal protection adjustment range
- 13…18 A
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Mushroom head push-button emergency stop red
- Standards
- IEC 60204-1; IEC 60947-4-1
- Product certifications
- CE; UKCA
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Height
- 165 mm
- Depth
- 146 mm
- Product weight
- 1.63 kg
- Width
- 175 mm
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110657081
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110657081
- MPN LG7D18M720
