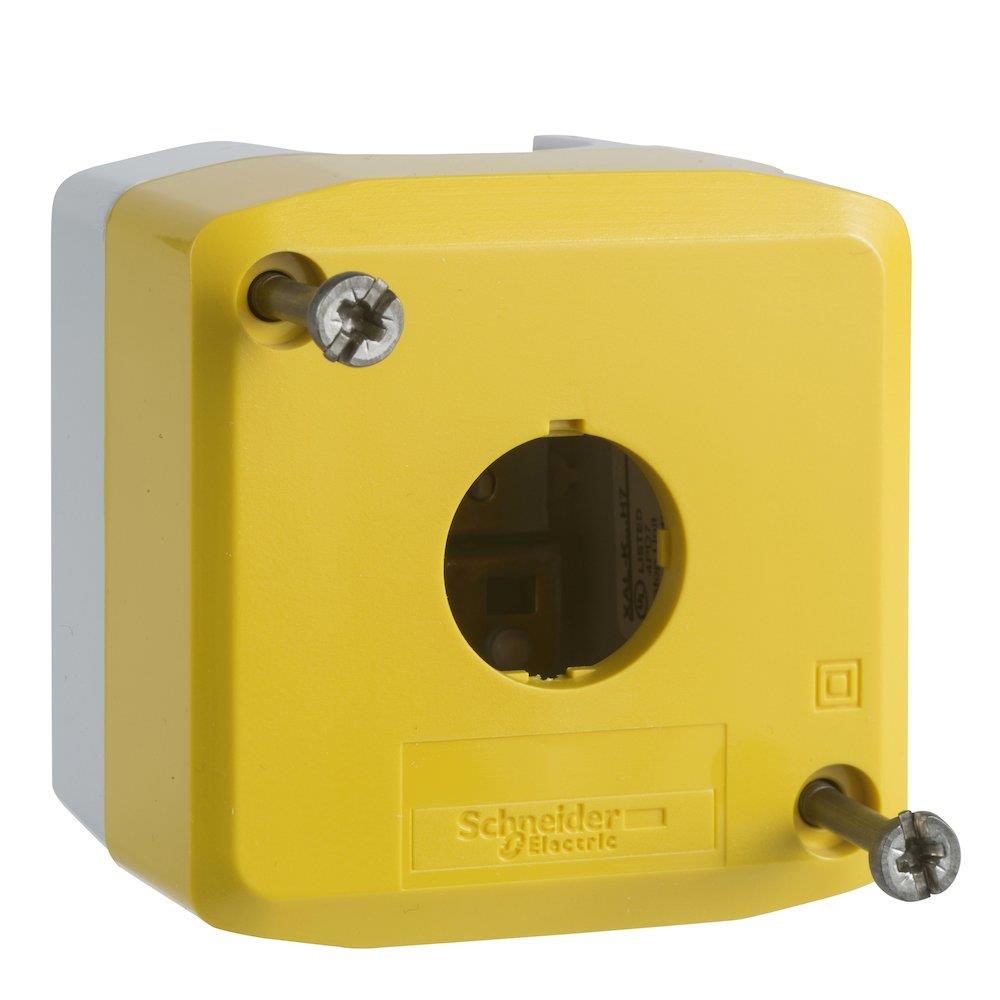

Schneider XALK Push button box - Harmony XALK, yellow 3389110115871
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XALK Push button box. Push button box empty (Electrical Engineering / Push buttons and signal units / Push button boxes). Principal data: series Harmony XALK, color Yellow. Supplied under manufacturer part number XALK01H7, EAN 3389110115871, HS code 3926.90, country of origin Czechia.
Technical Specifications
- Product type
- Push button box empty
- Product group
- Push buttons and signal units
- Series
- Harmony XALK
- Color
- Yellow
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.8287 kg CO2e per pcs
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 39269097
- HS code
- 3926.90
- Manufacturer part number
- XALK01H7
- Range of product
- Harmony XALK
- Product or component type
- Empty control station
- Device short name
- XALK
- Product destination
- For XB5 Ø 22 mm control and signalling units
- Control station application
- Emergency switching off function; Emergency stop function
- Number of cut-out
- 1 cut-out
- Colour of base of enclosure
- Light grey (RAL 7035)
- Colour of cover
- Yellow (RAL 1021)
- Material
- Polycarbonate
- Cable entry
- 1 knock-out for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Assembly style
- For customer assembly
- Number of horizontal rows
- 1
- Number of vertical rows
- 1
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mounting of block
- Front mounting; Rear mounting
- electrical composition code
- SF1; SR1; MF1; MR1
- Main group
- 1 cut-out
- Group of product
- UL-CSA yellow
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- NEMA degree of protection
- NEMA 13; NEMA 4X
- IK degree of protection
- IK03 conforming to IEC 62262
- Standards
- IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-5; UL 508; JIS C8201-1
- Product certifications
- UL; CSA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Warranty (in months)
- 18
- EAN
- 3389110115871
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3389110115871
- MPN XALK01H7
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 20A, 3P + N, B
A9F03720
Schneider Electric

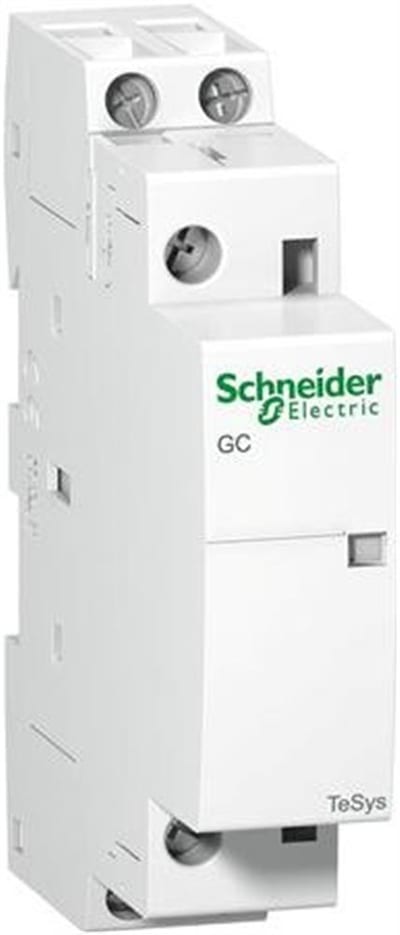

Schneider GC25 Modular contactor - 25A, 2P, 2NO, 230V, 17.5
GC2520M5
Schneider Electric

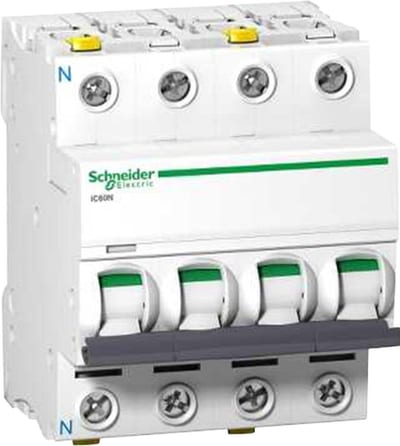

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 20A, 3P + N, C
A9F04720
Schneider Electric

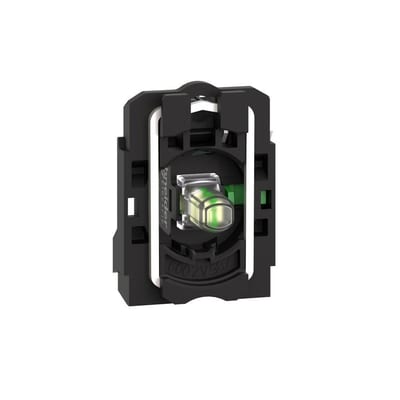

Schneider XB5 Lamp Actuator Body - Harmony XB5, 120V, 1NO
ZB5AW0G11
Schneider Electric

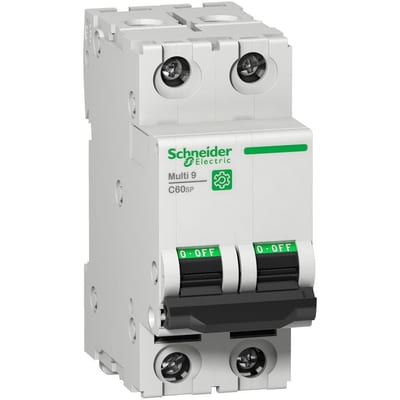

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 3A, 2P, C
M9F22203
Schneider Electric

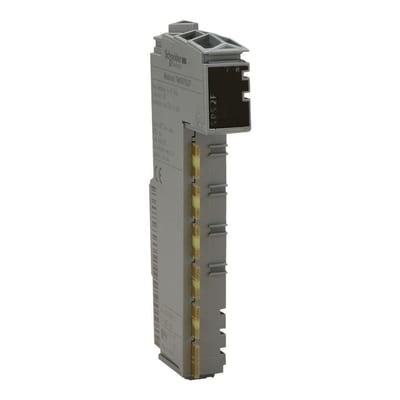

Schneider Modicon TM5 Expansion Module - 24V 3595864074931
TM5SPS2F
Schneider Electric

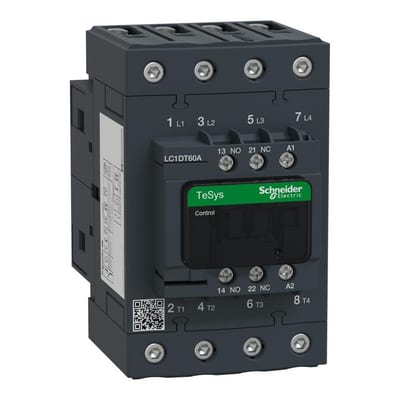

Schneider LC1D Contactor - TeSys D, 60A, 4P, 42 ACV
LC1DT60AD7
Schneider Electric

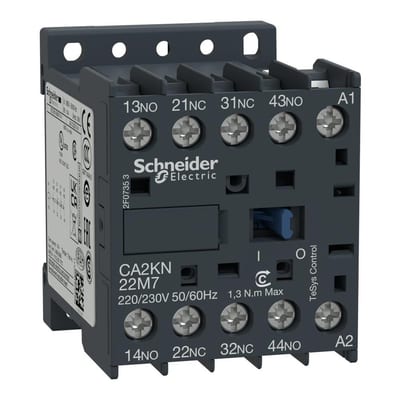

Schneider CA2K Control Relay - TeSys K, 2NO - 2NC, 48V
