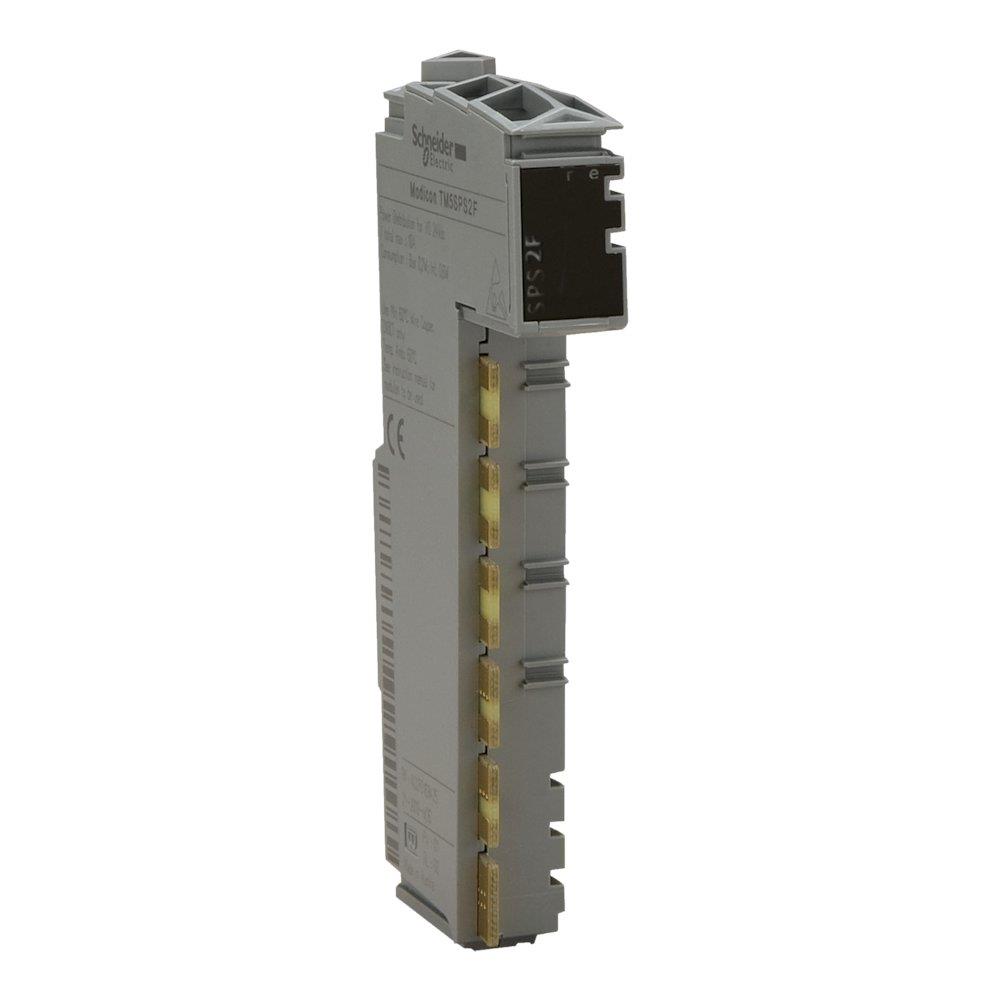

Schneider Modicon TM5 Expansion Module - 24V 3595864074931

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V. Supplied under manufacturer part number TM5SPS2F, EAN 3595864074931, HS code 8504.40, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Supply voltage

24 V

Carbon footprint (EPD)

0.4534 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85044083

HS code

8504.40

Manufacturer part number

TM5SPS2F

Range of product

Modicon TM5

Product or component type

Power distribution module with internal fuse

Product compatibility

Logic controller; Motion controller

Range compatibility

Modicon LMC058; Modicon M258

[Us] rated supply voltage

24 V for DC

Power supply output current

1136 mA for TM5 power bus; 740 mA for TM5 power bus; 6.3 A for I/O power segment

Input current

1136 mA for TM5 power bus; 740 mA for TM5 power bus; 6300 mA for I/O power segment

Maximum power dissipation in W

2.13 W

Typical current consumption

34 mA at 24 V DC

Short-circuit protection

6.3 A

Housing colour

Grey

Electrical connection

Screw/spring terminal block

Height

99 mm

Width

12.5 mm

Depth

75 mm

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; GOST-R; CULus; C-Tick

Standards

IEC 61131-2; UL 508; CSA C22.2 No 213; CSA C22.2 No 142

Ambient air temperature for operation

-10…55 °C without derating (horizontal installation); 55…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074931

HS Code

8504.40

• EAN 3595864074931
• MPN TM5SPS2F
