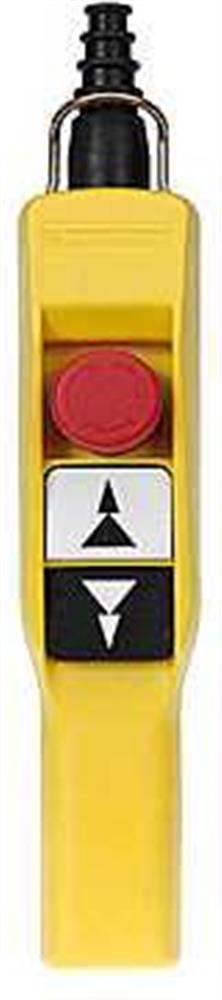

Schneider XACA Hanging pressure 2-Step with emergency stop - Harmony XAC, yellow, 2NO - 2NO - 1NC

Schneider XACA Hanging pressure 2-step with emergency stop. Hanging pressure (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XAC, color Yellow, contact type 2NO -2NO -1NC. Supplied under manufacturer part number XACA2074, EAN 3389110559248, HS code 8536.50, country of origin France.

Product type

Hanging pressure

Product group

Push buttons and signal units

Series

Harmony XAC

Color

Yellow

Contact type

2NO -2NO -1NC

Protection class (IP)

65

Material

PP ( Polypropylene )

Number of pressures

2

Carbon footprint (EPD)

1.8993 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

XACA2074

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACA pistol grip

Control station type

Double insulated

Enclosure material

Polypropylene

Control type

Intuitive

Electrical circuit type

Control circuit

enclosure type

Complete ready for use

Control station application

Control of 2-speed hoist motor

Control station composition

2 push-buttons + 1 emergency stop

Control button type

Emergency stop push-button Ø 30 mm 1 NC trigger action; First push-button 2 NO (2 step) raise, slow-fast; Second push-button 2 NO (2 step) lower, slow-fast

Product compatibility

ZB2BE102 for emergency stop; ZB2BE101 + ZB2BE201 for each direction

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

CSA C22.2 No 14; EN/IEC 60204-32; UL 508; EN/IEC 60947-5-1; EN/ISO 13850: 2006; EN/IEC 60947-5-5

Product certifications

UL; CSA

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 50102

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…15 mm

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Slow-break; Staggered

Maximum resistance across terminals

25 MOhm

Operating force

13…15 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(23-24)NO_CL; (13-14)NO

Terminals description ISO n°2

(11-12)NC

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

0.36 kg

Number of Units in Package 1

1

Number of Units in Package 2

15

Number of Units in Package 3

120

Warranty (in months)

18

EAN

3389110559248

HS Code

8536.50

• EAN 3389110559248
• MPN XACA2074
