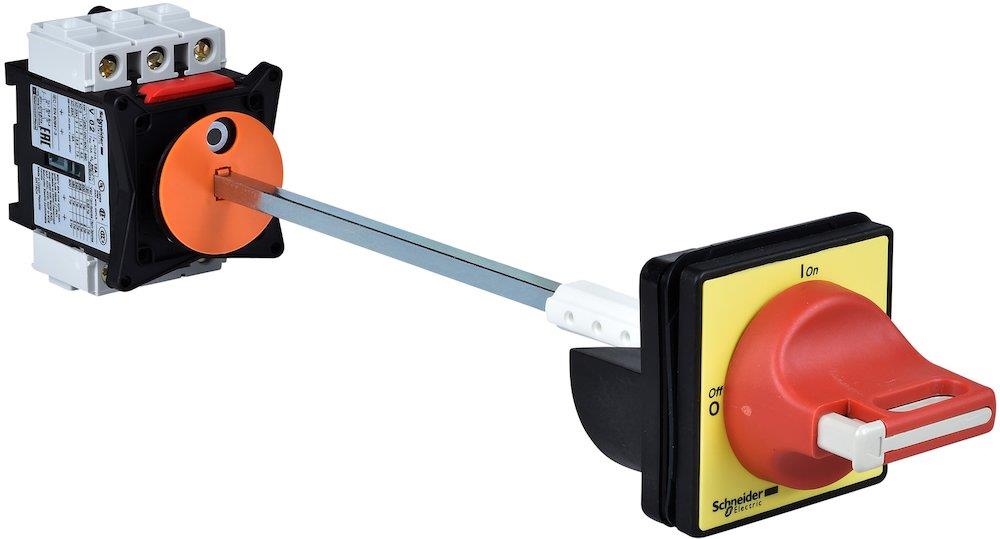

Schneider VCCF Safety Switch complete - TeSys Vario, 80A, 3P, red - yellow

Schneider VCCF Safety Switch complete. Main and safety switches (Electrical Engineering / Safety switches, CEE equipment, and multi-sockets). Principal data: series TeSys Vario, current 80 A, number of poles 3P, color Red - yellow. Supplied under manufacturer part number VCCF4, EAN 3389110194029, HS code 8536.20, country of origin Czechia.

Product type

Main and safety switches Product group: Safety switches, CEE equipment, and multi-sockets Series: TeSys Vario Current: 80 A Number of poles: 3P Color: Red - yellow REACH SVHC substance above 0.1%: Lead Carbon footprint (EPD): 4.4032 kg CO2e per pcs Country of origin: Czechia Customs tariff code (EU CN): 85362010 HS code: 8536.20 Manufacturer part number: VCCF4 Range: TeSys Product Name: TeSys VARIO Device Short Name: VCCF Device Composition: Handle; Switch; Shaft extension Mounting Support: Handle: door; Switch: symmetrical rail; Switch: plate Mounting Method: By 4 screws for handle; By clips for switch; By screws for switch Performance Level: High performance Contact Type and Composition: 3 NO [Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz IEC Rated Operational Power in W: 18.5 kW at 690 V (AC-3); 15 kW at 230...240 V (AC-3); 22 kW at 400...415 V (AC-3); 30 kW at 500 V (AC-3); 30 kW at 690 V (AC-23A); 37 kW at 500 V (AC-23A); 18.5 kW at 230...240 V (AC-23A); 30 kW at 400...415 V (AC-23A) [Ie] Rated Operational Current: 57 A AC-23 Ue: 400 V [Ith] Conventional Free Air Thermal Current: 80 A [Ithe] Conventional Enclosed Thermal Current: 63 A Making Capacity ( I Rms): 800 A at 400 V AC-21A; 800 A at 400 V AC-22A; 800 A at 400 V AC-23A Breaking Capacity: 640 A at 400 V (AC-21A); 640 A at 400 V (AC-22A); 640 A at 400 V (AC-23A) Rated Conditional Short Circuit Current: 10 kA at 400 V - associated fuse 80 A aM; 10 kA at 400 V - associated fuse 80 A gG [Icm] Rated Short Circuit Making Capacity: 2.1 kA at 400 V at Ipeak [Icw] Rated Short Time Withstand Current: 960 A at 400 V duration: 1 s [Uimp] Rated Impulse Withstand Voltage: 8 kV Suitability for Isolation: Yes Network Type: DC; AC Intermittent Duty Class: 30 Control Type: Rotary handle Rotary Handle Mounting Style: Extended Handle Color: Red Handle Front Plate Color: Yellow Rotary Handle Padlocking: 1 to 3 padlocks 4…8 mm Marking: 0 - 1 Mechanical Durability: 30000 cycles Electrical Durability: 30000 cycles AC-21; 30000 cycles DC-1...5 IEC Terminal Connection: Power circuit: screw clamp terminals25 mm² - solid; Power circuit: screw clamp terminals16 mm² - flexible - with cable end Tightening Torque: Power circuit: 4 N.m - on screw clamp terminals Base Dimension: 60 x 60 mm Height: 83 mm Width: 60 mm Product Weight: 0.68 kg Standards: IEC 60947-3 Product Certifications: UL; GL; CSA; CCC; UKCA Degree of Protection: IP20 conforming to IEC 60529; IP65 Protective Treatment: TC Mechanical Robustness: Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 Ambient Air Temperature for Operation: -20…50 °C Fire Resistance: 960 °C conforming to IEC 60695-2-1 Compatibility Code: Main switch disconnector Number of Units in Package 1: 1 Number of Units in Package 2: 55 Warranty (in months): 18 EAN: 3389110194029

HS Code

8536.20

• EAN 3389110194029
• MPN VCCF4
