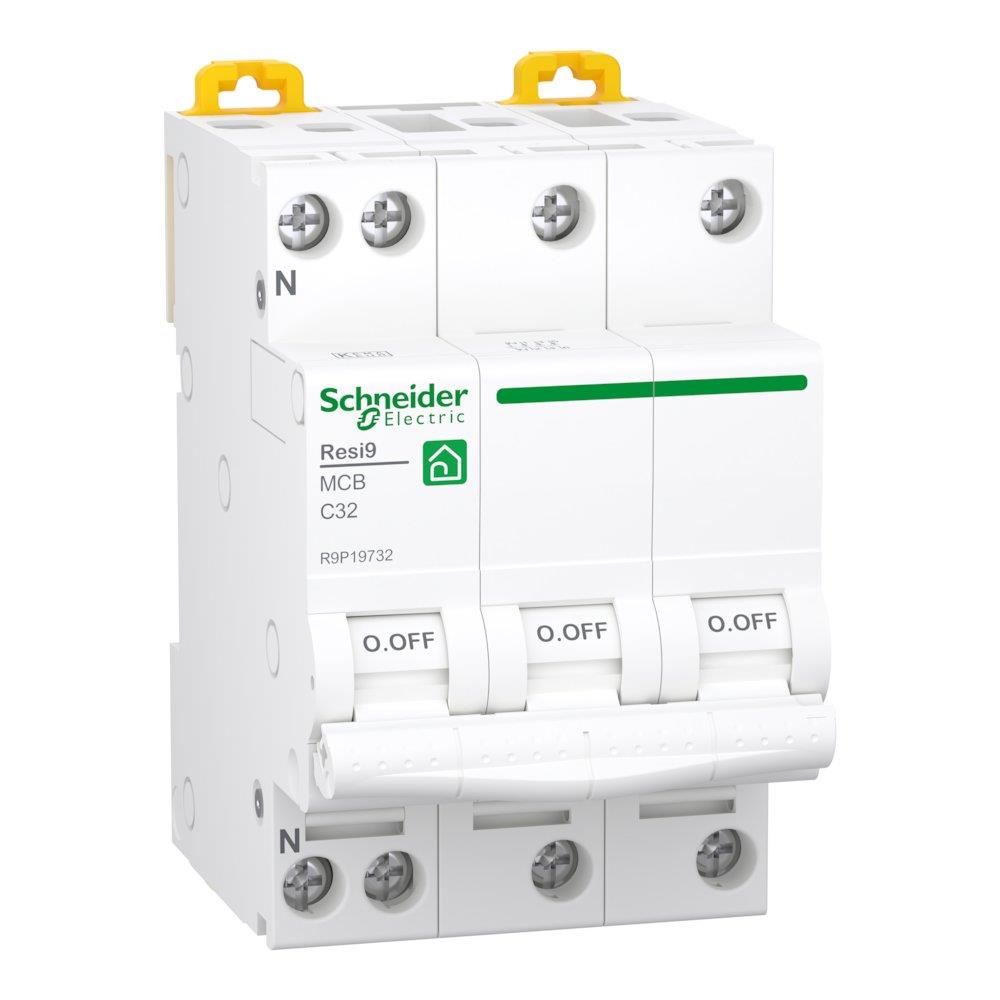

Schneider RESI9 XP MCB Circuit breaker - RESI9 XP, 32A, 3P + N, C

Schneider Resi9 XP MCB Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Resi9 XP, current rating 32 A, number of poles 3P + N, tripping characteristic C. Supplied under manufacturer part number R9P19732, EAN 3606481905086, HS code 8536.20, country of origin Hungary.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Resi9 XP

Current rating

32 A

Number of poles

3P + N

Tripping characteristic

C

Breaking capacity

6 kA

Width

54 mm

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

1.5849 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

R9P19732

Range

Resi9

Product name

Resi9 MCB

Product or component type

Miniature circuit-breaker

Device application

Distribution

Poles description

3P + N

Number of protected poles

3

Neutral position

Left

[In] rated current

32 A

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

C

Standards

EN/IEC 60898-1

Quality labels

KEMA

Network frequency

50/60 Hz

[Ue] rated operational voltage

400 V AC 50/60 Hz

Magnetic tripping limit

5...10 x In AC

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

440 V AC

[Uimp] rated impulse withstand voltage

4 kV

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

81 mm

Depth

73.5 mm

Embedding depth

44 mm

Product weight

320 g

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

7500 cycles

Connections - terminals

Tunnel type terminals (top or bottom) - 1...16 mm² - rigid; Tunnel type terminals (top or bottom) - 1...10 mm² - flexible with ferrule; Tunnel type terminals (top or bottom) - 1...10 mm² - flexible

Wire stripping length

13 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20

Pollution degree

2 conforming to EN/IEC 60898-1

Overvoltage category

III

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

48

Warranty (in months)

18

EAN

3606481905086

HS Code

8536.20

• EAN 3606481905086
• MPN R9P19732
