Schneider RESI9 Quick PF Transient protection

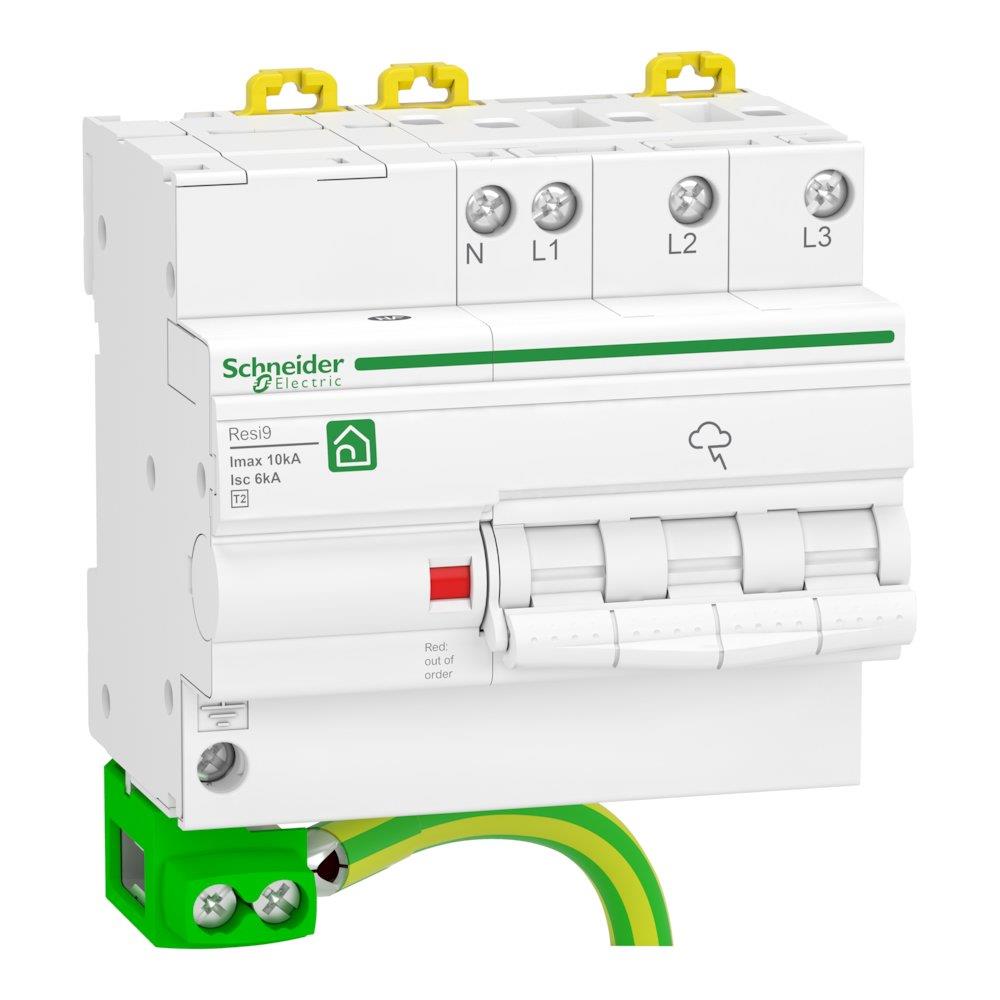

Schneider Resi9 Quick PF Transient protection. Accessories for electrical cabinets and boxes (Electrical Engineering / Tables, cabinets, and boxes). Supplied under manufacturer part number R9L16710, EAN 3606480500688, HS code 8536.30, country of origin Belgium.

Product type

Accessories for electrical cabinets and boxes

Product group

Tables, cabinets, and boxes

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

4.6594 kg CO2e per pcs

Country of origin

Belgium

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

R9L16710

GTIN (EAN)

3606480500688

range of product

Resi9

Product or component type

Surge arrester

Device short name

Resi9 Quick PF

Poles description

3P + N

Remote signalling

Without

Surge arrester type

Electrical distribution network

Earthing system

TT; TN-S

Surge arrester class type

Type 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230/400 V +/- 10 % AC 50/60 Hz

Nominal discharge current

Differential mode: 5 kA (L/N); Common mode: 20 kA (N/PE)

Maximum discharge current

Differential mode: 10 kA L/N; Common mode: 20 kA N/PE

[Uc] maximum continuous operating voltage

Common mode: 275 V N/PE; Differential mode: 275 V L/N

Response time

<= 25 ns

Maximum [Up] voltage protection level

Common mode 1.5 kV type 2 N/PE; Differential mode 1.5 kV type 2 L/N

[Out] temporary overvoltage

337 V L/N 5 s withstand; 1200 V N/PE 200 ms safe failure mode; 442 V L/PE 5 s withstand

[Ifi] follow current

0.1 kA common mode N/PE

[Isccr] short-circuit current rating

6 kA

Local signalling

White/red flag

Disconnector device type

Integrated circuit breaker - Icu 6 kA

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

10

Height

106.8 mm

Width

88.4 mm

Depth

74.1 mm

Colour

White (RAL 9003)

Maximum residual current

1 mA

Connections - terminals

Tunnel type terminal (L/N) 1…16 mm² rigid; Tunnel type terminal (L/N) 1…10 mm² flexible; Tunnel type terminal (ground) 6…25 mm² rigid; Tunnel type terminal (ground) 6…16 mm² flexible with ferrule

Tightening torque

2 N.m

Provided equipment

Pre-fitted PE earth cable; 1 intermediary terminal block

Standards

EN 61643-11:2012; IEC 61643-11:2011

Quality labels

NF

IK degree of protection

IK03 conforming to IEC 62262

Relative humidity

5…95 %

Ambient air temperature for operation

-5…40 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

HS Code

8536.30
