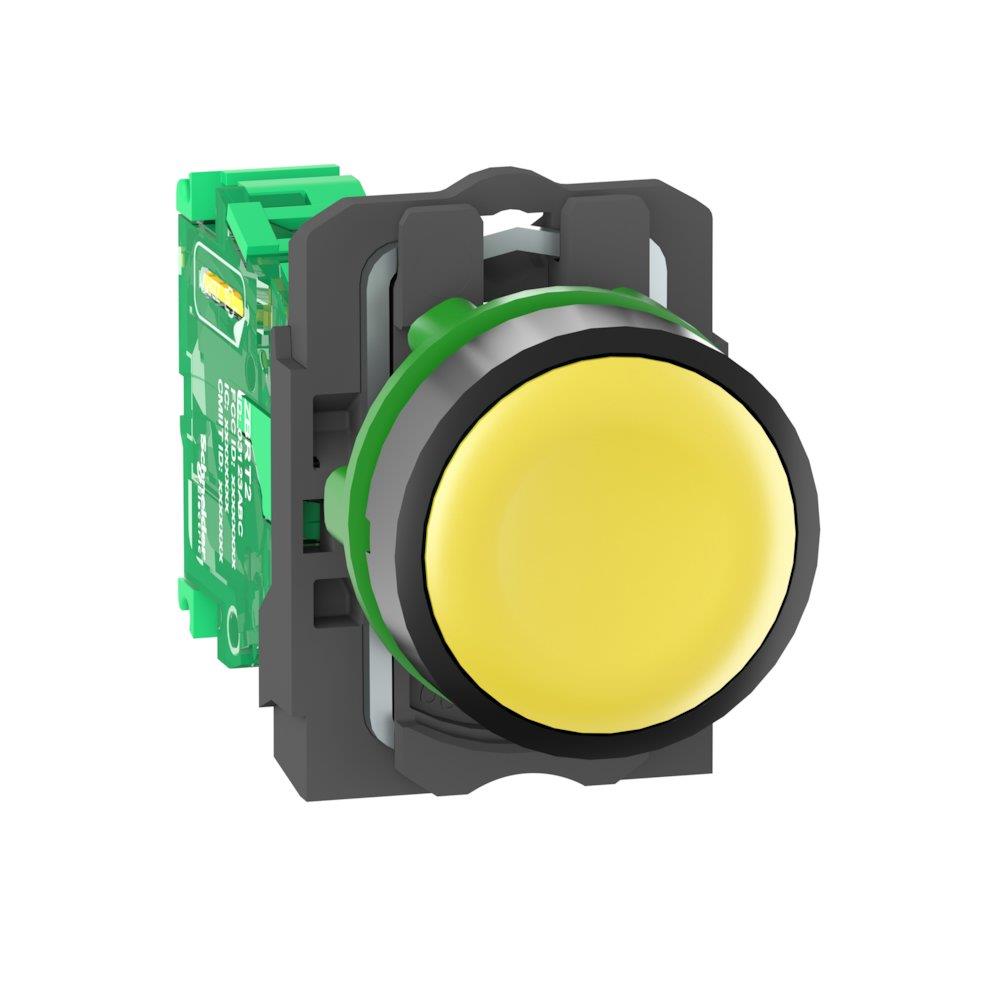

Schneider XB5R Wireless Push Button with spring-return and ZBRT1 transmitter - Harmony XB5R, yellow

Schneider XB5R Wireless Push Button with spring-return and ZBRT1 transmitter. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB5R, color Yellow. Supplied under manufacturer part number ZB5RTA5, EAN 3606480334634, HS code 8526.92, country of origin France.

Product type

Push buttons

Product group

Push buttons and signal units

Series

Harmony XB5R

Color

Yellow

REACH SVHC substance above 0.1%

Lead-monoxide, Lead, Octamethylcyclotetrasiloxane

Carbon footprint (EPD)

0.7299 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85269200

HS code

8526.92

Manufacturer part number

ZB5RTA5

Range of product

Harmony XB5

Product or component type

Wireless and batteryless transmitter

Device short name

XB5R

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Mounting diameter

22 mm

Transmission frequency

2405 MHz

emission class

5M00G7W

Antenna type

Omnidirectional

Shape of signaling unit head

Round

Type of operator

spring return push-button with transmitter

Operator profile

Yellow flush

Max power consumption in W

1 mW

Number of channels

16

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Embedding depth

42 mm

CAD overall height

41.5 mm

CAD overall width

30 mm

CAD overall depth

43 mm

Product weight

0.045 kg

Operating travel

4.3 mm (total travel)

Operating force

10 N C/O changing electrical state

Mechanical robustness

Free fall resistance 1000 mm conforming to IEC 60068-2-32

Standards

CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; UL 508

Radio agreement

ANATEL; ARIB T66; FCC; ICASA; RSS

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Maximum sensing distance

100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2 ms

Emission power

3 mW

Fixing mode

Fixing nut beneath head: 2…2.4 N.m

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

PW1

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Relative humidity

95 % at -40…70 °C without condensation

IP degree of protection

IP66 (front face) conforming to IEC 60529; IP67 (front face) conforming to IEC 60529; IP69 (front face) conforming to IEC 60529; IP69K (front face) conforming to IEC 60529

IK degree of protection

IK03 conforming to IEC 50102

Mechanical durability

1000000 cycles

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3

Product certifications

BT 2006/95/EC; GOST; C-Tick; CSA; UL

Directives

1999/5/EC - R&TTE directive; 2004/108/EC - electromagnetic compatibility

Number of Units in Package 1

1

Number of Units in Package 2

25

Warranty (in months)

18

EAN

3606480334634

HS Code

8526.92
