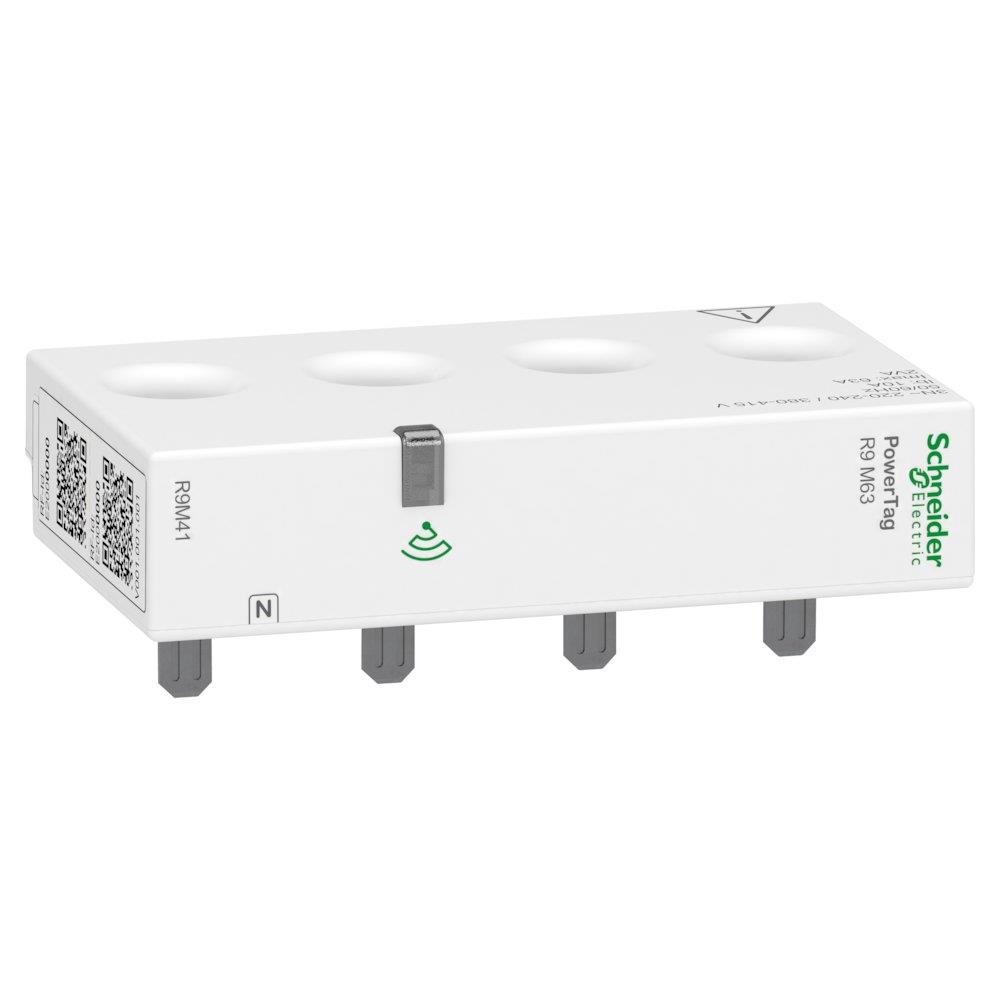

Schneider PowerTag R9 M63 Energy sensor - 3606489524791
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider PowerTag R9 M63 Energy sensor. Meters (Electrical Engineering / Components for panels and boxes). Supplied under manufacturer part number R9M41, EAN 3606489524791, HS code 9030.33, country of origin Latvia.
Technical Specifications
- Product type
- Meters
- Product group
- Components for panels and boxes
- REACH SVHC substance above 0.1%
- Lead, Lead-monoxide
- Carbon footprint (EPD)
- 1.2900 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Latvia
- Customs tariff code (EU CN)
- 90303370
- HS code
- 9030.33
- Manufacturer part number
- R9M41
- GTIN (EAN)
- 3606489524791
- Range of product
- PowerLogic
- Product name
- PowerTag R9 M63
- Product or component type
- Energy sensor
- Poles
- 3P + N
- Maximum current [Imax]
- 63 A
- Mobile App name
- Wiser by SE; Wiser Home
- [Ib] Basic current
- 10 A
- Starting current
- 40 mA
- Saturation current
- 130 A
- Product specific application
- Load monitoring; Circuit monitoring; Overload alarm; Energy production monitoring (photovoltaic); Energy management
- Concentrator compatibility
- Wiser hub generation 1; Wiser hub generation 2
- Application
- Residential: breaker voltage monitoring; Residential: overload alarm
- Range compatibility
- Resi9
- Type of measurement
- Voltage; Active energy; Current
- Accuracy class
- Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12
- Mounting location
- Top
- Mounting support
- On circuit breaker
- Product destination
- Switchboard
- Event management
- Voltage loss with measured current at voltage loss
- Transmission support medium
- Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
- Emission power
- 10 mW
- Colour tint
- White (RAL 9003)
- Form factor
- Monoconnect
- Mounting mode
- By screws (terminals)
- Electrical connection (voltage sensing & power supply)
- Connector tooth
- Cable cross section
- 1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²
- supply voltage
- 220...240 V AC, +/- 20 %, between phase and neutral; 380...415 V AC, +/- 20 %, between phases
- Network frequency
- 50 Hz; 60 Hz
- Maximum power consumption
- 2 VA
- Standards
- IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1
- Height
- 16.5 mm
- Width
- 72 mm
- Depth
- 43 mm
- Product weight
- 35 g
- Colour
- White (RAL 9003)
- Main colour tint
- White
- Total power losses
- 2 W
- Quality labels
- CE
- Directives
- 2014/53/EU - radio equipment directive
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Overvoltage category
- III conforming to IEC 61010-1
- Measurement category
- Category III conforming to IEC 61010-2-030
- IP degree of protection
- IP20 conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Relative humidity
- 0…95 % at 45 °C conforming to IEC 60721-3-3
- Vibration resistance
- 3M4 conforming to IEC 60721-3-3
- Electromagnetic compatibility
- Residential electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311
- environmental characteristics
- Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use
- Warranty (in months)
- 18
