Schneider Powerpact Maximum breaker - 3606480529184

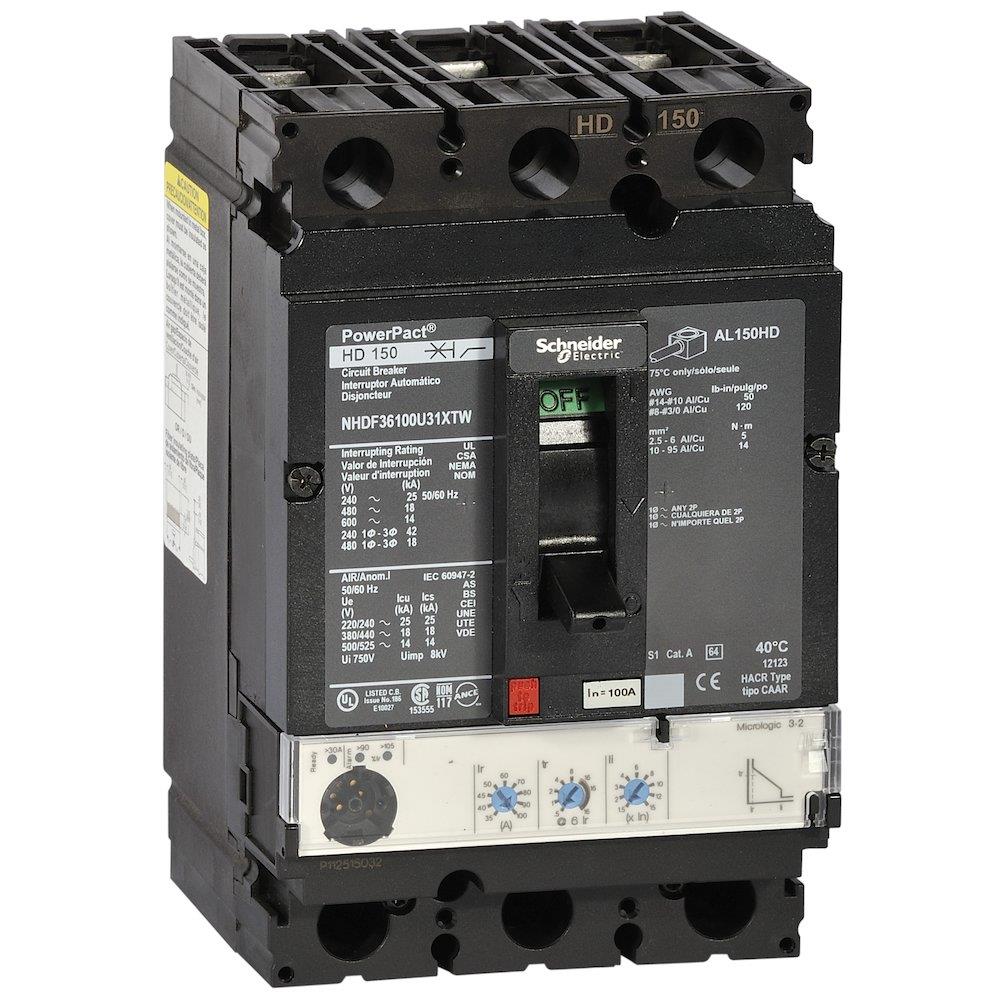

Schneider Powerpact Maximum breaker. Molded case circuit breakers (Electrical Engineering / Components for panels and boxes). Supplied under manufacturer part number NHJF36100U31XTW, EAN 3606480529184, HS code 8536.20, country of origin United States.

Product type

Molded case circuit breakers

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

Lead, DME, Lead titanium zirconium oxide, Lead-monoxide, Trimellitic anhydride

Carbon footprint (EPD)

14.0158 kg CO2e per pcs

Country of origin

United States

Customs tariff code (EU CN)

85362090

HS code

8536.20

Manufacturer part number

NHJF36100U31XTW

GTIN (EAN)

3606480529184

Range of product

PowerPact multistandard

Range

PowerPact

Product name

H-Frame

Device short name

H-Frame

Product or component type

Circuit breaker

Device application

Distribution

Poles description

3P

Control type

Toggle

mounting mode

Unit mount

Mounting support

DIN rail; Flush; Backplate

Electrical connection

Terminal nut, line side; Terminal nut, load side

[In] rated current

100 A at 40 °C

[Ui] rated insulation voltage

750 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ue] rated operational voltage

525 V AC 50/60 Hz conforming to IEC 60947-2; 690 V AC 50/60 Hz conforming to IEC 947-2; 600 V AC 50/60 Hz conforming to UL 489

Breaking capacity code

HJ

Suitability for isolation

Yes

Utilisation category

Category A

Mechanical durability

4000 cycles

Electrical durability

4000 cycles

Connection pitch

45 mm

Local signalling

ON/OFF indication

Contact position indicator

Yes

Trip unit name

MicroLogic 3.0

Trip unit technology

Electronic

Trip unit protection functions

LI

Trip unit rating

100 A

Thermal memory

20 mn

Display type

3 LEDs

Breaking capacity

Icu: 100 kA at 220/240 V - AC conforming to IEC 947-2; Icu: 65 kA at 380/415 V - AC conforming to IEC 947-2; Icu: 65 kA at 440/480 V - AC conforming to IEC 947-2; Icu: 25 kA at 500/525 V - AC conforming to IEC 947-2; 100 kA at 240 V - AC conforming to UL 489; 65 kA at 480 V - AC conforming to UL 489; 25 kA at 600 V - AC conforming to UL 489

[Ics] rated service breaking capacity

Ics: 100 kA at 220/240 V - AC conforming to IEC 947-2; Ics: 65 kA at 380/415 V - AC conforming to IEC 947-2; Ics: 65 kA at 440/480 V - AC conforming to IEC 947-2; Ics: 25 kA at 500/525 V - AC conforming to IEC 947-2

Long time pick-up adjustment type Ir

Adjustable 9 settings

Long time pick-up adjustment range

0.35...1 x In

[tr] long-time delay adjustment range

1 s; 8 s; 2 s; 4 s; 16 s; 0.5 s

Instantaneous pick-up adjustment type Ii

Adjustable 9 settings

Instantaneous pick-up adjustment range

1.5...15 x In

Overvoltage category

II

Provision for padlocking

Non padlockable

Height

163 mm

Width

104 mm

Depth

86 mm

Standards

NEMA AB1; IEC 60947-2; CSA C22.2 No 5; NMX J-266; W-C-375B/GEN; UL 489

Product certifications

CE; CCC

Product weight

2.2 kg

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Pollution degree

3 conforming to IEC 60947-1; 3 conforming to IEC 60664-1

Ambient air temperature for operation

40 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.20

• EAN 3606480529184
• MPN NHJF36100U31XTW
