Schneider NSX100F Maximum breaker - 415V

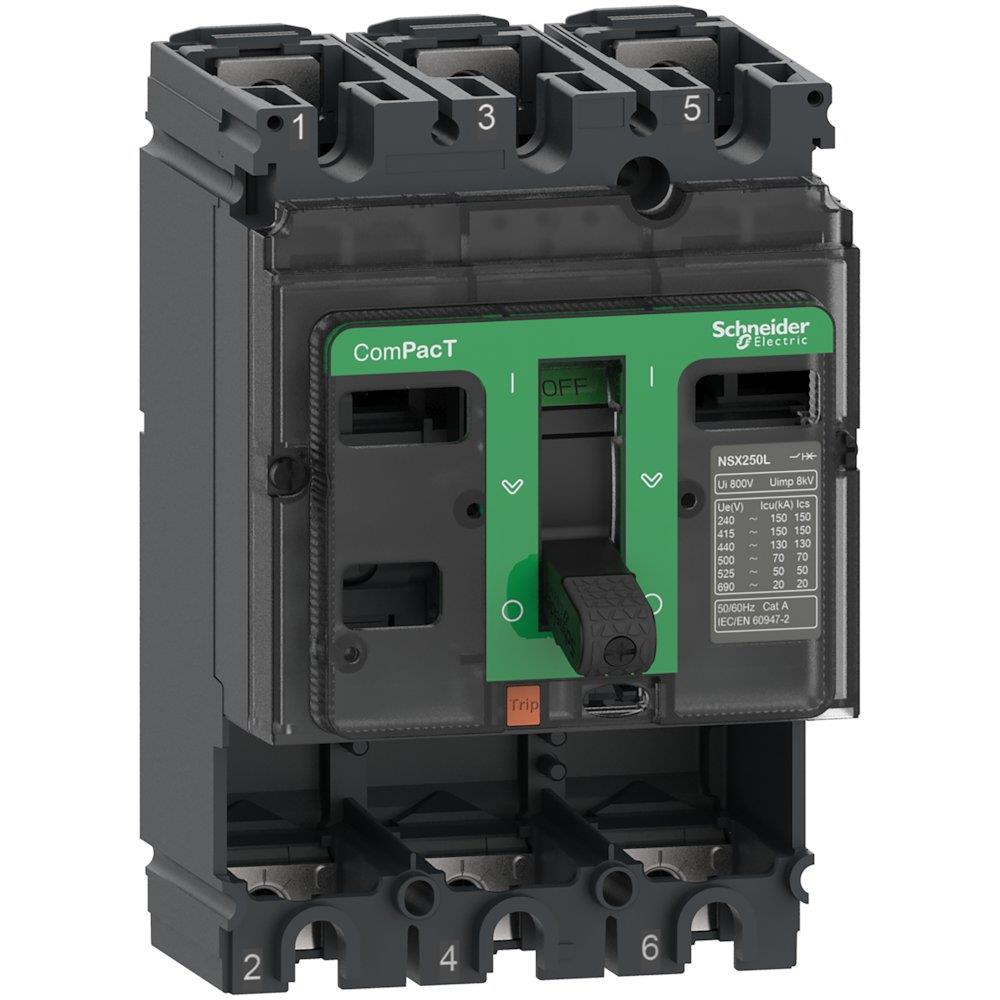

Schneider NSX100F Maximum breaker. Molded case circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: supply voltage 415 V. Supplied under manufacturer part number C10F3, EAN 3606481999320, HS code 8538.10, country of origin Poland.

Product type

Molded case circuit breakers

Product group

Components for panels and boxes

Supply voltage

415 V

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

11.4000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Poland

Customs tariff code (EU CN)

85381000

HS code

8538.10

Manufacturer part number

C10F3

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX100F

Product or component type

Basic frame

Device application

Distribution

Poles description

3P

[In] rated current

100 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

10 kA at 600 V AC 50/60 Hz conforming to UL 508; 25 kA at 480 V AC 50/60 Hz conforming to UL 508; 85 kA at 240 V AC 50/60 Hz conforming to UL 508; 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

F 36 kA 415 V AC

Control type

Toggle

mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 12.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

50000 cycles conforming to IEC 60947-2

Electrical durability

10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Protection type

Without protection

Width (W)

105 mm

Height (H)

161 mm

Depth (D)

86 mm

Standards

EN/IEC 60947-2; UL 60947-4-1

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

EAN

3606481999320

HS Code

8538.10

• EAN 3606481999320
• MPN C10F3
