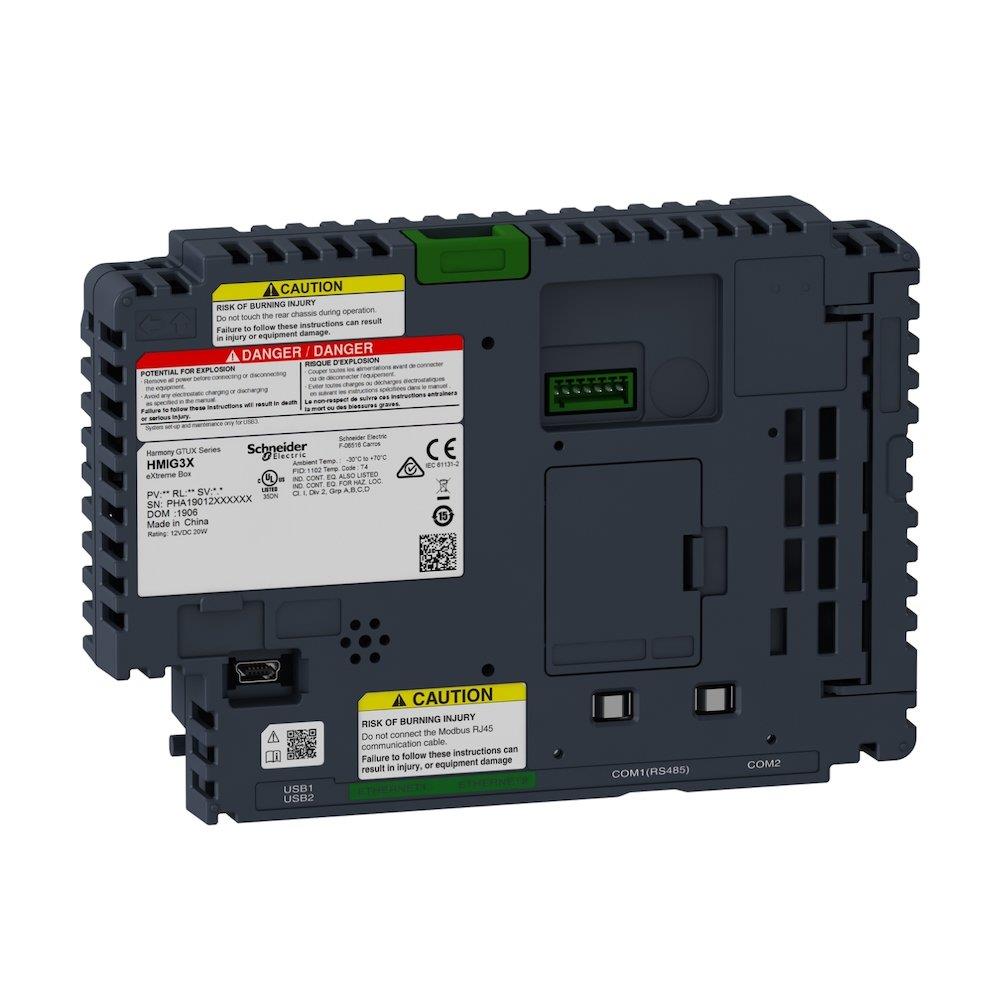

Schneider Harmony GTUX Base Unit - 12V 3606489747930
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Harmony GTUX Base Unit. Operator panel (Electrical Engineering / Industry and automation). Principal data: supply voltage 12 V. Supplied under manufacturer part number HMIG3X, EAN 3606489747930, HS code 8537.10, country of origin China.
Technical Specifications
- Product type
- Operator panel
- Product group
- Industry and automation
- Supply voltage
- 12 V
- REACH SVHC substance above 0.1%
- Lead, Diboron-trioxide, Lead-monoxide, Triphenyl phosphate
- Carbon footprint (EPD)
- 8.2903 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 85371091
- HS code
- 8537.10
- Manufacturer part number
- HMIG3X
- Range of product
- Harmony GTUX
- Product or component type
- Base unit
- Device short name
- eXtreme Box
- [Us] rated supply voltage
- 12 V DC power supply
- Power consumption in W
- 20.0 W
- Integrated connection type
- Ethernet TCP/IP with 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T; COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s; COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s; COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s; Auxiliary port terminal block; Expansion unit fieldbus card; USB 2.0 port with 2 USB type A; USB 2.0 port mini B USB
- Communication port protocol
- Modbus TCP/IP; Modbus serial; Uni-Telway
- Software package
- EcoStruxure Operator Terminal Expert; Vijeo Designer
- Processor name
- ARM Cortex-A9
- Data storage equipment
- 1 GB SD card
- Memory description
- 256 MB RAM internal (2 x 13 mm board); 512 KB NVRAM backup memory
- Number of slots
- 2 slot(s) for SD card
- Type of cooling
- Natural convection
- Width
- 188 mm
- Height
- 131 mm
- Depth
- 45 mm
- Product weight
- 0.9 kg
- Standards
- UL 61010; UL 121201; CSA C22.2 No 213; CSA C22.2 No 61010-1; IEC 61132-2
- Product certifications
- CE; KC; RCM; EAC; ATEX zone 2/22; IEC-Ex; UL; CSA; UKCA; UKEX
- Resistance to fast transients
- 1 kV (signal ports) conforming to IEC 61000-4-4; 2 kV (power ports) conforming to IEC 61000-4-4
- Resistance to electrostatic discharge
- 6 kV contact discharge conforming to IEC 61000-4-2 level 3; 8 kV air discharge conforming to IEC 61000-4-2 level 3
- Ambient air temperature for operation
- -30…70 °C
- Ambient air temperature for storage
- -30…70 °C
- Pollution degree
- 2 conforming to IEC 61131-2 ed.3
- Environmental characteristic
- Corrosive gas free
- Relative humidity
- 10…90 % non-condensing
- Operating altitude
- 2000 m
- Vibration resistance
- 7 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2; 19.6 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
- Shock resistance
- 392 m/s² (X, Y, Z directions for 3 times) conforming to IEC 61131-2
- Electromagnetic compatibility
- Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 16
- Warranty (in months)
- 18
- EAN
- 3606489747930
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606489747930
- MPN HMIG3X
