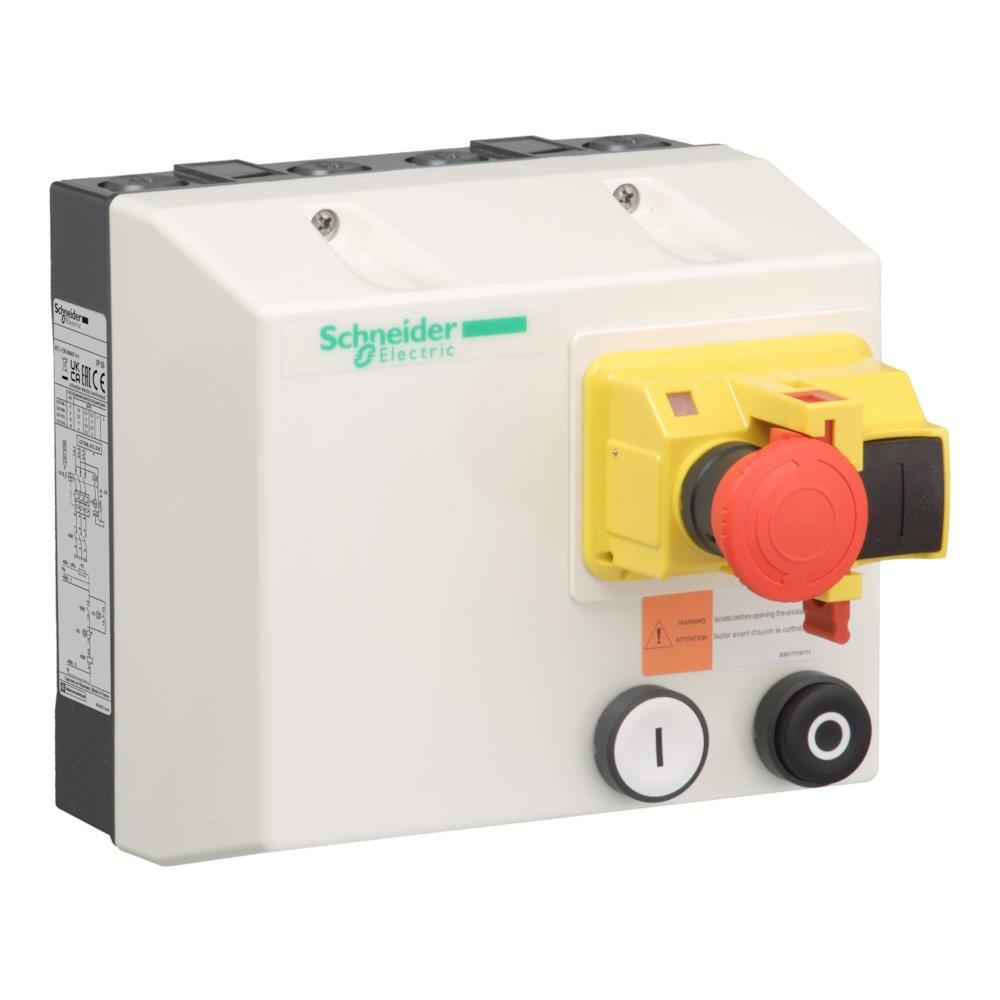

Schneider LG7K Motor Starter - 400V, 1.5kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LG7K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 1.5 kW, protection class (ip) 65. Supplied under manufacturer part number LG7K06Q708, EAN 3389110660647, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 400 V
- Power
- 1.5 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 20.2373 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG7K06Q708
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG7K
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Circuit-breaker
- Motor power kW
- 0.75 kW at 220/230 V AC 50/60 Hz; 1.5 kW at 400/415 V AC 50/60 Hz; 1.5 kW at 440 V AC 50/60 Hz
- Thermal protection adjustment range
- 2.5…4 A
- [Uc] control circuit voltage
- 380/400 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Mushroom head push-button emergency stop red
- Standards
- IEC 60947-4-1; IEC 60204-1
- Product certifications
- CE; UKCA
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Height
- 165 mm
- Depth
- 177 mm
- Product weight
- 1.3 kg
- Width
- 175 mm
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110660647
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110660647
- MPN LG7K06Q708
More from Schneider Electric
Schneider Electric

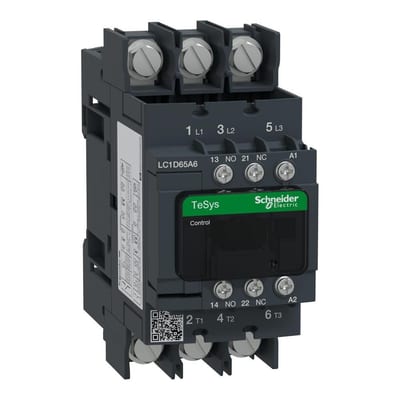

Schneider LC1D Contactor - TeSys D, 65A, 3P, 110 ACV 3389119400848
LC1D65A6F7
Schneider Electric

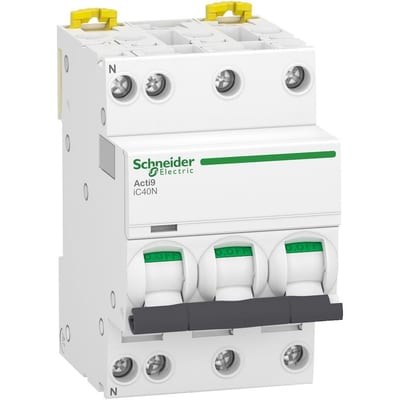

Schneider ACTI9 IC40N Circuit breaker - ACTI9 IC40N, 6A, 3P + N, D
A9P64706
Schneider Electric

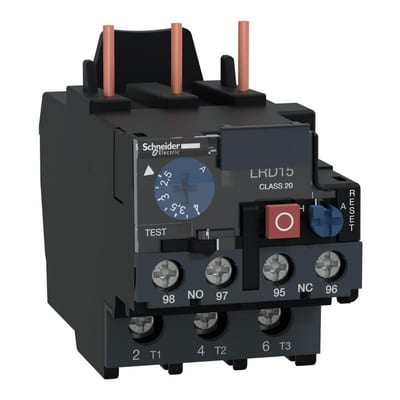

Schneider LRD Thermal Relay - TeSys D, 2,4 - 4A
LRD1508
Schneider Electric

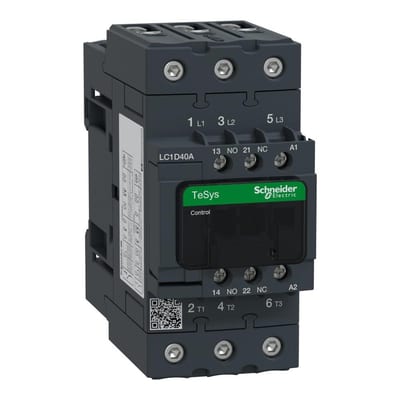

Schneider LC1D Contactor - TeSys D, 40A, 3P, 42 ACV
LC1D40AD7
Schneider Electric

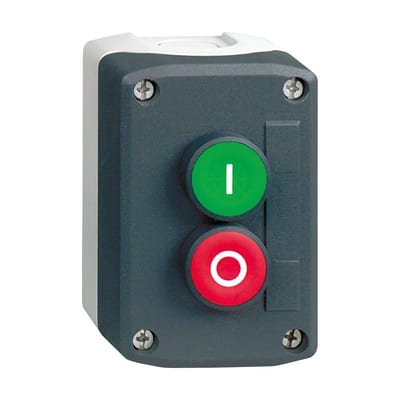

Schneider XALK Push button box - Harmony XALK 3389110114140
XALD213E
Schneider Electric

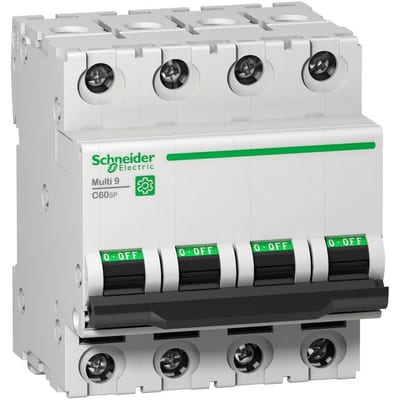

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 6A, 4P, B
M9F21406
Schneider Electric

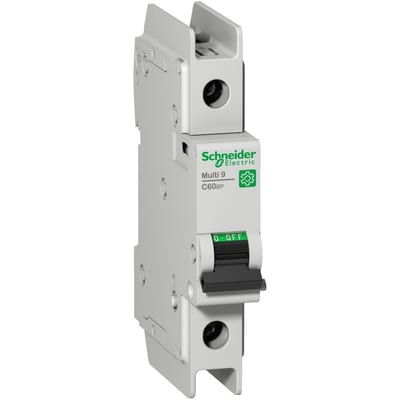

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60BP, 5A, 1P, Z
M9F44105
Schneider Electric

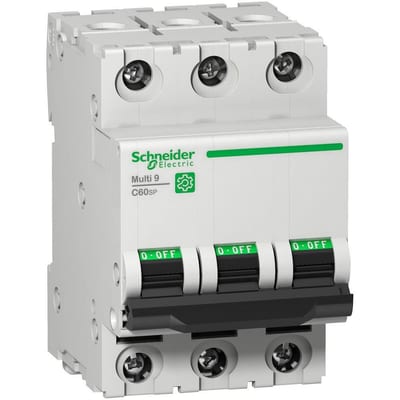

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 40A, 3P, D
