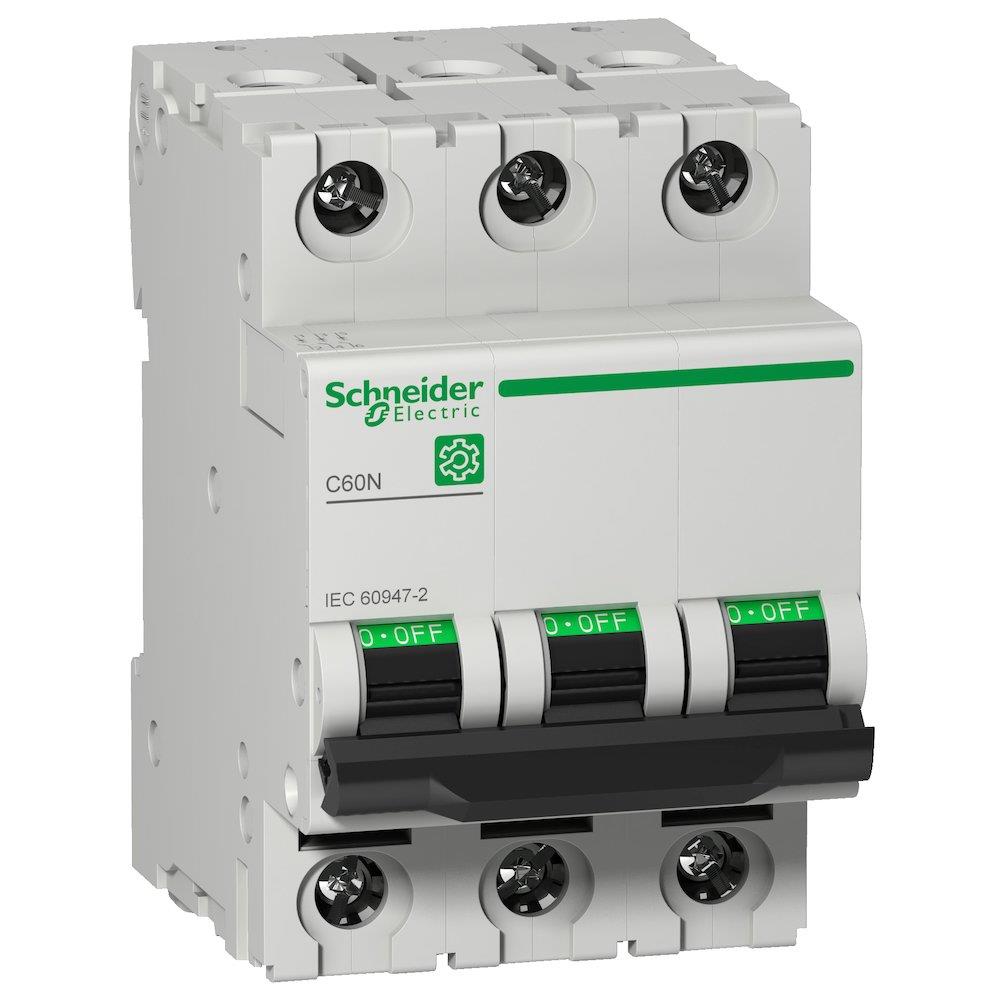

Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 16A, 3P, C

Schneider Multi9 C60N Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Multi9 C60, current rating 16 A, number of poles 3P, tripping characteristic C. Supplied under manufacturer part number M9F11316, EAN 3606480576386, HS code 8536.20, country of origin Bulgaria.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Multi9 C60

Current rating

16 A

Number of poles

3P

Tripping characteristic

C

Breaking capacity

10 kA

Width

54 mm

REACH SVHC substance above 0.1%

Triphenyl phosphate

Carbon footprint (EPD)

0.7980 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Bulgaria

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

M9F11316

Range

Multi9

Product name

Multi9 C60

Product or component type

Miniature circuit-breaker

Device short name

C60N

Device application

Distribution

Poles description

3P

Number of protected poles

3

[In] rated current

16 A at 50 °C conforming to EN/IEC 60947-2

Network type

DC; AC

Network frequency

50/60 Hz

Trip unit technology

Thermal-magnetic

Curve code

C

Utilisation category

Category A conforming to EN/IEC 60947-2

Standards

EN/IEC 60947-2; GB/T 14048.2

Product certifications

EAC; KC; CCC

Quality labels

UKCA; RCM

[Ue] rated operational voltage

240 V AC 50/60 Hz between phases; 415 V AC 50/60 Hz between phases; 440 V AC 50/60 Hz between phases; <= 125 V DC

Magnetic tripping limit

8.5 x In +/- 20 % AC; 12 x In +/- 20 % DC

[Ics] rated service breaking capacity

16 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz; 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz; 30 kA 100 % conforming to EN/IEC 60947-2 - <= 180 V DC; 16 kA 75 % conforming to GB/T 14048.2 - 240 V AC 50/60 Hz; 7.5 kA 75 % conforming to GB/T 14048.2 - 415 V AC 50/60 Hz; 4.5 kA 75 % conforming to GB/T 14048.2 - 440 V AC 50/60 Hz; 30 kA 100 % conforming to GB/T 14048.2 - <= 180 V DC

Limitation class

3

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

81 mm

Depth

72 mm

Product weight

0.36 kg

Colour

Grey

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Provision for padlocking

Padlockable

Connections - terminals

Tunnel type terminal (top or bottom)1…25 mm² - rigid; Tunnel type terminal (top or bottom)1…25 mm² - flexible; Tunnel type terminal (top or bottom)1…25 mm² - flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Separate block

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-30…70 °C

Ambient air temperature for storage

-40…80 °C

Warranty (in months)

18

EAN

3606480576386

HS Code

8536.20

• EAN 3606480576386
• MPN M9F11316
