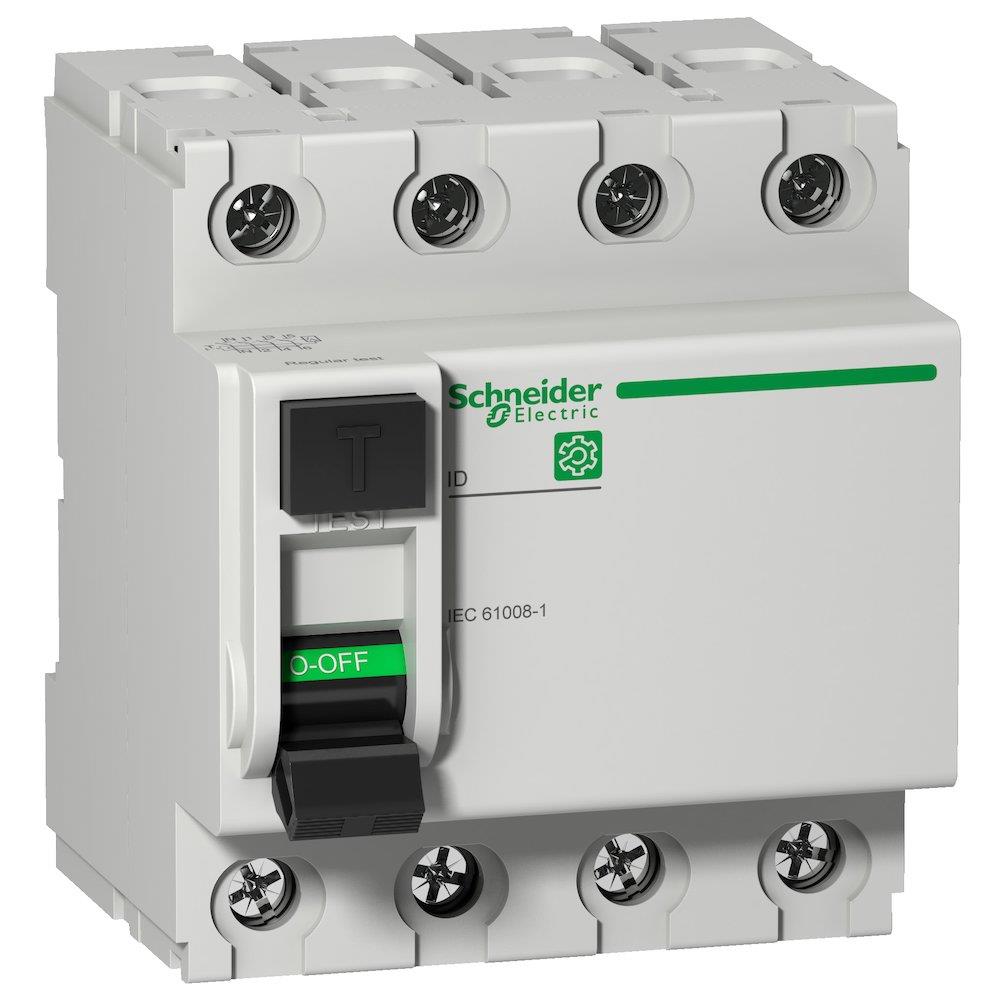

Schneider MULTI9 C60 RCCB Residual current circuit breaker HPFI - MULTI9 C60, 40A, 4P, 30MA

Schneider Multi9 C60 RCCB Residual current circuit breaker HPFI. Residual current devices (RCD, PFI, Combo) (Electrical Engineering / Components for panels and boxes). Principal data: series Multi9 C60, current rating 40 A, number of poles 4P, rated residual current 30 mA. Supplied under manufacturer part number M9R31440, EAN 3606480578380, HS code 8536.20, country of origin Spain.

Product type

Residual current devices (RCD, PFI, Combo)

Product group

Components for panels and boxes

Series

Multi9 C60

Current rating

40 A

Number of poles

4P

Rated residual current

30 mA

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide

Carbon footprint (EPD)

4.0000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Spain

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

M9R31440

Range

Multi9

Product name

Multi9 ID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

ID

Device application

Distribution

Poles description

4P

Neutral position

Left

[In] rated current

40 A

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A-SI (Super Immunised)

Standards

EN/IEC 61008-1

Product certifications

CE

Network frequency

50 Hz

[Ue] rated operational voltage

380...415 V AC 50 Hz

Residual current tripping technology

Voltage independent

Rated breaking and making capacity

Idm 400 A conforming to EN/IEC 61008-1

Rated conditional short-circuit current

Inc 10 kA

[Ui] rated insulation voltage

440 V AC 50 Hz conforming to EN/IEC 61008-1

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 61008-1

Surge current

3000 A

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON, OFF, fault trip

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

8

Height

81 mm

Width

72 mm

Depth

73 mm

Product weight

0.45 kg

Colour

Grey

Mechanical durability

20000 cycles

Electrical durability

2000 cycles

Locking options description

Padlocking device

Connections - terminals

Tunnel type terminal (top or bottom)1…35 mm² - rigid; Tunnel type terminal (top or bottom)1…25 mm² - flexible; Tunnel type terminal (top or bottom): 3 cable(s) 16 mm² - rigid; Tunnel type terminal (top or bottom): 3 cable(s) 10 mm² - flexible; Tunnel type terminal (top or bottom)1…25 mm² - flexible with ferrule

Wire stripping length

15 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Electromagnetic compatibility

8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…40 °C

Ambient air temperature for storage

-40…60 °C

Warranty (in months)

18

EAN

3606480578380

HS Code

8536.20

• EAN 3606480578380
• MPN M9R31440
