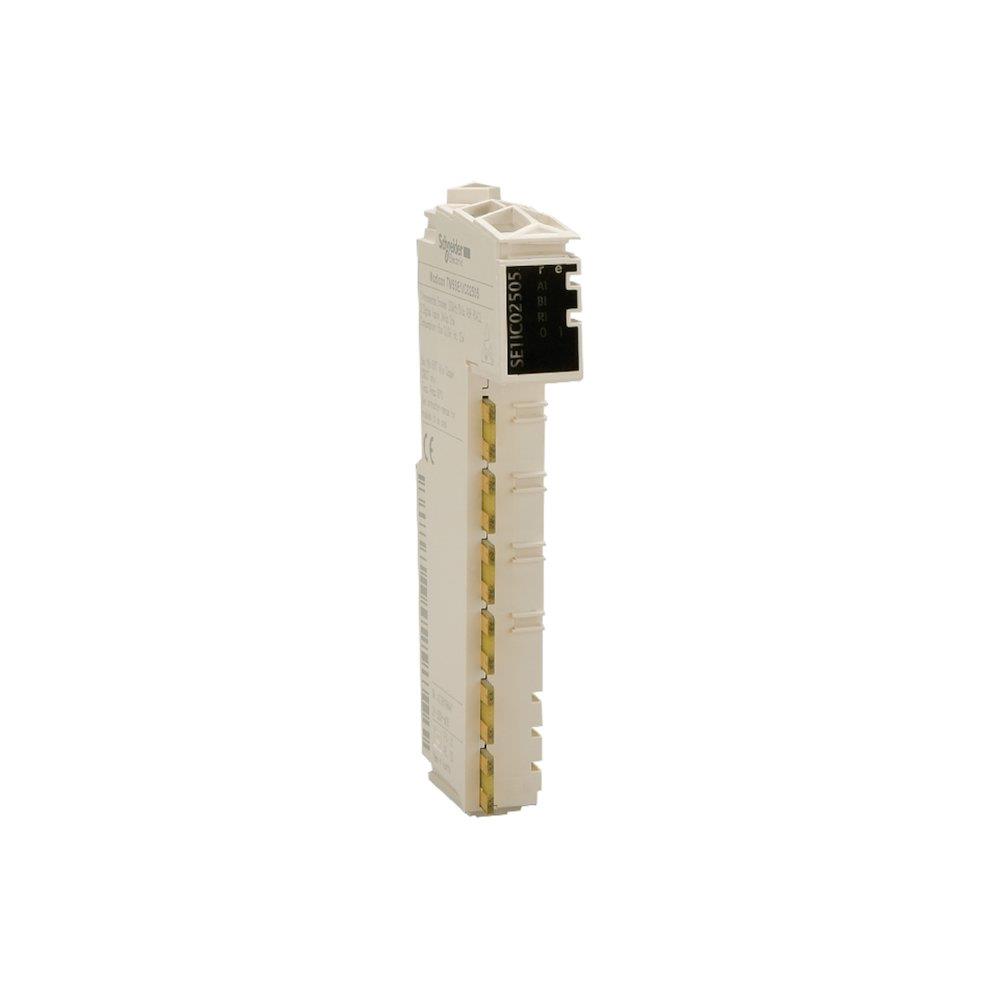

Schneider Modicon TM5 Module - 24V, 2

Schneider Modicon TM5 Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V, number of digital inputs 2. Supplied under manufacturer part number TM5SDI2DF, EAN 3595864074498, HS code 9029.10, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Supply voltage

24 V

Number of digital inputs

2

Carbon footprint (EPD)

0.1725 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

90291000

HS code

9029.10

Manufacturer part number

TM5SDI2DF

Range of product

Modicon TM5

Product or component type

Counter module

Product specific application

Frequency meter; Period measurement; Frequency generator; Upcounting; Downcounting

Function of module

Interval measurement; Event counting

Discrete input number

2

Counting frequency

50 kHz

Product compatibility

Logic controller; Motion controller

Range compatibility

Modicon M258; Modicon LMC058

Isolation

500 Vrms AC insulation between channel and bus; No insulation between channels

Discrete input logic

Sink

Discrete input voltage

24 V DC

Discrete input current

10.5 mA at 24 V

Input filtering

<= 10 ms hardware; <= 25 ms configurable by software

Current consumption

30 mA at 5 V DC bus; 34 mA at 24 V DC input/output

Maximum power dissipation in W

0.97 W

Marking

CE

Product weight

0.025 kg

DC supply voltage

24 V

Height

99 mm

Width

12.5 mm

Depth

75 mm

Standards

UL 508; CSA C22.2 No 213; CSA C22.2 No 142; IEC 61131-2

Product certifications

CSA; GOST-R; cULus; C-Tick

Ambient air temperature for operation

0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation); 0…50 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20 conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

1 gn at 8.4…150 Hz on DIN rail; 3.5 mm at 5…8.4 Hz on DIN rail

Shock resistance

15 gn for 11 ms

Resistance to electrostatic discharge

4 kV on contact conforming to IEC 61000-4-2; 8 kV in air conforming to IEC 61000-4-2

Resistance to electromagnetic fields

1 V/m 2...2.7 GHz conforming to IEC 61000-4-3; 10 V/m 80...2000 MHz conforming to IEC 61000-4-3

Resistance to fast transients

1 kV (I/O) conforming to IEC 61000-4-4; 1 kV (shielded cable) conforming to IEC 61000-4-4; 2 kV (power lines) conforming to IEC 61000-4-4

Surge withstand

0.5 kV differential mode conforming to IEC 61000-4-5; 1 kV common mode conforming to IEC 61000-4-5

Electromagnetic compatibility

EN/IEC 61000-4-6

Disturbance radiated/conducted

CISPR 11

Warranty (in months)

18

EAN

3595864074498

HS Code

9029.10

• EAN 3595864074498
• MPN TM5SDI2DF
