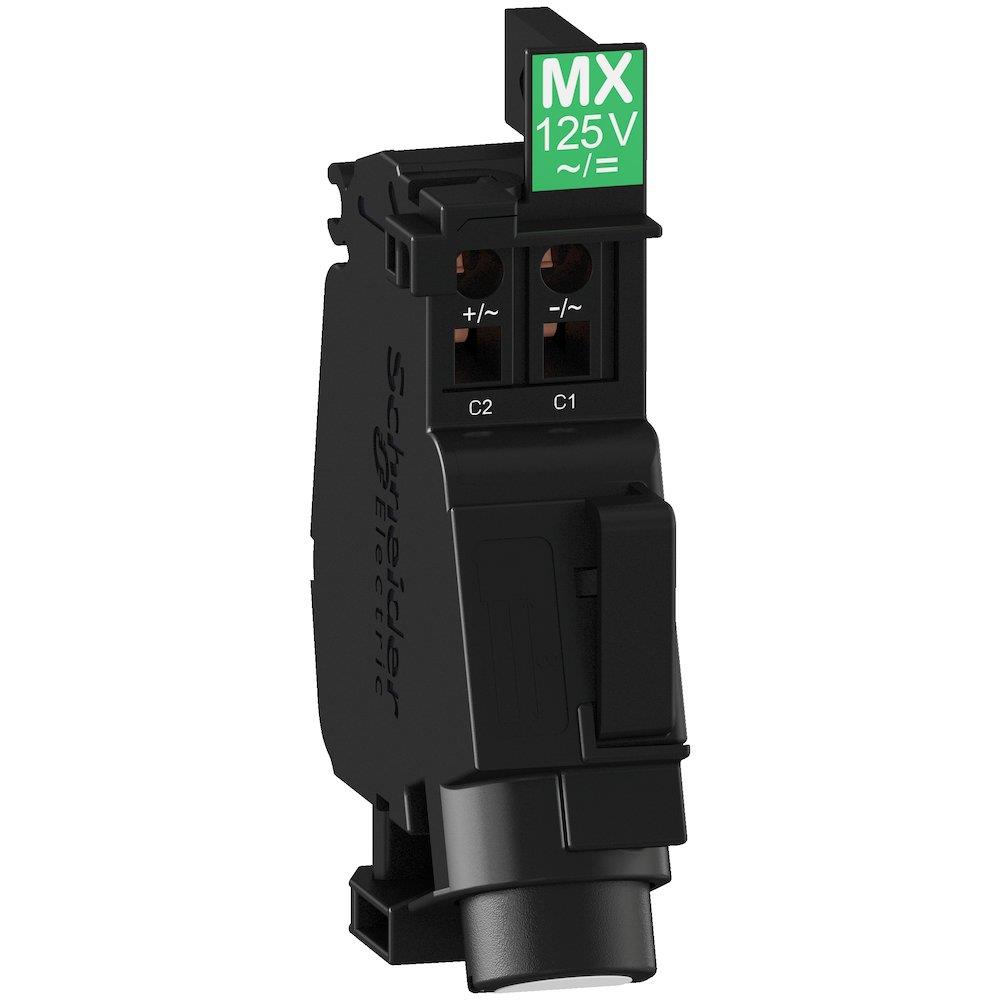

Schneider GV4AS MX Shunt Trip Coil - TeSys 3606485444888

Schneider GV4AS MX Shunt Trip Coil. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys. Supplied under manufacturer part number GV4AS027, EAN 3606485444888, HS code 8536.30, country of origin France.

Product type

Motor protection and accessories

Product group

Components for panels and boxes

Series

TeSys

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

2.0200 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

France

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

GV4AS027

Range

TeSys

Device short name

MX

Product or component type

Voltage release

Device application

Control

Range compatibility

TeSys TeSys GV4; TeSys TeSys BV4

Voltage release type

Shunt trip release

[Uc] control circuit voltage

24 V AC 50/60 Hz; 24 V DC

[Ui] rated insulation voltage

24 V conforming to IEC 60947-1

Threshold tripping voltage

0.7...1.1 Un failsafe opening; < 0.7 Un possible opening

Impulse duration

>= 20 ms

mounting mode

Internal mounting

Maximum inrush power in VA

6 VA

Maximum inrush power in W

4 W

Maximum hold-in power consumption in VA

10 VA

Maximum hold-in power consumption in W

1 W

Mechanical durability

20000 cycles

Operating time

< 50 ms

Connections - terminals

Spring terminals 1 0.5…1.5 mm² - cable stiffness: flexible without cable end

Wire stripping length

8 mm

Quantity per set

Set of 1

Warranty (in months)

18

EAN

3606485444888

HS Code

8536.30

• EAN 3606485444888
• MPN GV4AS027
