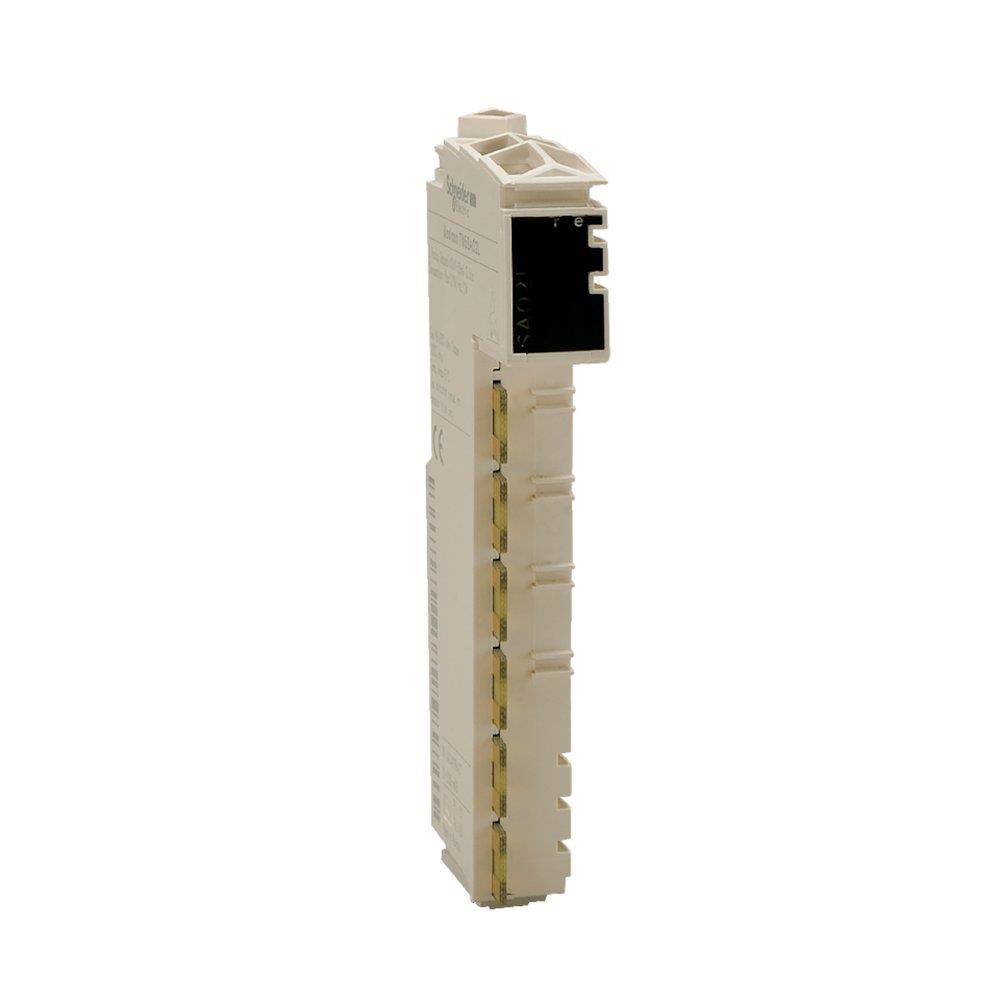

Schneider Modicon TM5 Expansion Module - 4 3595864074771
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: number of analogue outputs 4. Supplied under manufacturer part number TM5SAI4PH, EAN 3595864074771, HS code 8538.90, country of origin Austria.
Technical Specifications
- Product type
- Distributed I/O
- Product group
- Industry and automation
- Number of analogue outputs
- 4
- Carbon footprint (EPD)
- 0.3575 kg CO2e per pcs
- Country of origin
- Austria
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- TM5SAI4PH
- Range of product
- Modicon TM5
- Product or component type
- Analog input module
- Product compatibility
- Logic controller; Motion controller
- Range compatibility
- Modicon LMC058; Modicon M258
- Analogue input number
- 4
- Measurement resolution
- 0.1 °C
- Colour
- White
- Temperature coefficient
- 0.004 %FS/°C, analogue input type: temperature probe
- Supply
- Internal
- [Us] rated supply voltage
- 24 V DC -15...20 %
- Analogue input type
- Temperature probe - 200...850 °C Pt 100/Pt 1000
- Analogue input resolution
- 16 bits
- Type of cable
- Shielded cable
- Measurement error
- < 0.037 % of full scale - 200...850 °C Pt 100/Pt 1000 25 °C
- Non-linearity
- 0.001 %FS, analogue input type: temperature probe
- Common mode rejection
- > 95 dB
- Typical current consumption
- 2 mA at 5 V DC; 46 mA at 24 V DC input/output
- Power dissipation in W
- 1.11 W
- Isolation between channels
- None
- Isolation between channels and bus
- 500 Vrms AC
- Local signalling
- 1 LED green for power supply; 1 LED red for power supply; 4 LEDs green for input status
- Housing colour
- White
- Height
- 99 mm
- Width
- 12.5 mm
- Depth
- 75 mm
- Product weight
- 0.025 kg
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- GOST-R; CSA; C-Tick; CULus
- Standards
- UL 508; CSA C22.2 No 213; IEC 61131-2; CSA C22.2 No 142
- Ambient air temperature for operation
- 0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation); 0…50 °C (vertical installation)
- Ambient air temperature for storage
- -25…70 °C
- Relative humidity
- 5…95 % without condensation
- Operating altitude
- 0...2000 m
- Pollution degree
- 2
- Vibration resistance
- 1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail
- Shock resistance
- 15 gn for 11 ms
- Warranty (in months)
- 18
- EAN
- 3595864074771
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595864074771
- MPN TM5SAI4PH
