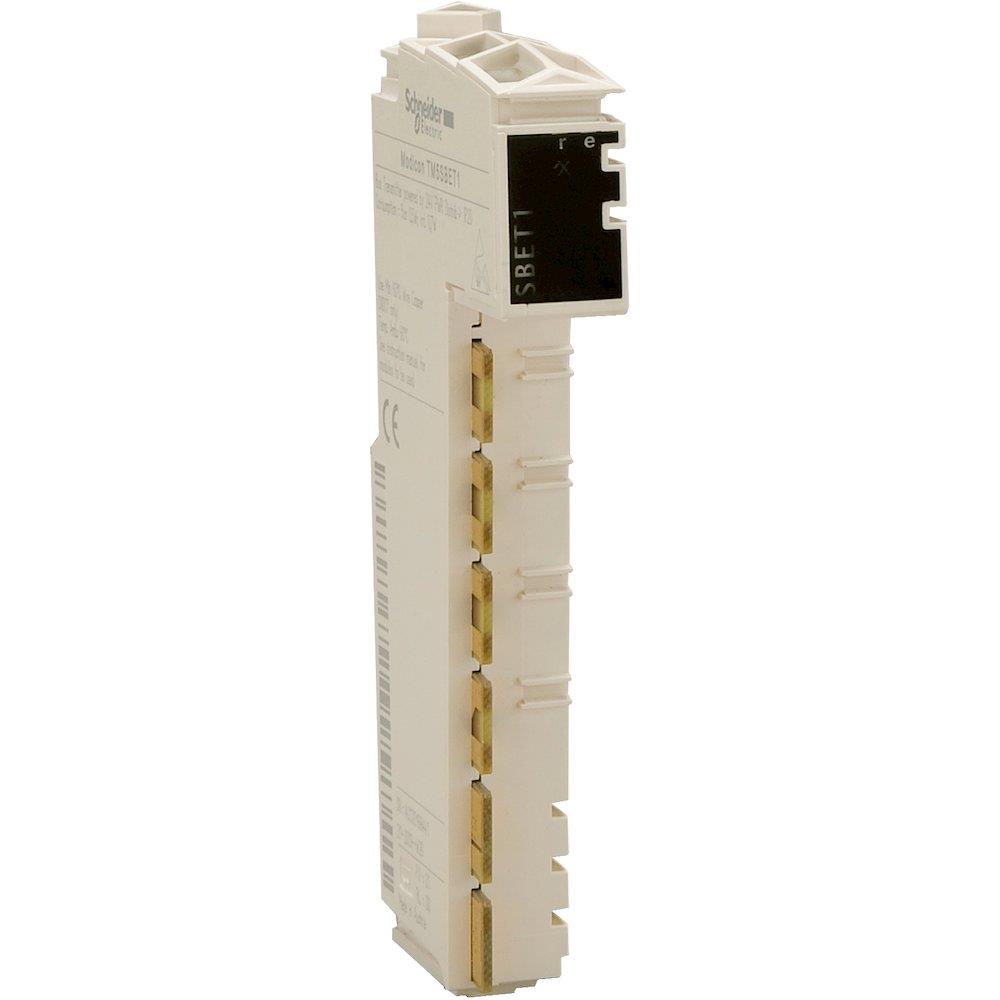

Schneider Modicon TM5 Expansion Module - 3595864074887
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Supplied under manufacturer part number TM5SBET1, EAN 3595864074887, HS code 8517.62, country of origin Austria.
Technical Specifications
- Product type
- Distributed I/O
- Product group
- Industry and automation
- Carbon footprint (EPD)
- 0.3932 kg CO2e per pcs
- Country of origin
- Austria
- Customs tariff code (EU CN)
- 85176200
- HS code
- 8517.62
- Manufacturer part number
- TM5SBET1
- Range of product
- Modicon TM5
- Product or component type
- Remote transmitter module
- Product compatibility
- Logic controller; Motion controller
- Range compatibility
- Modicon M258; Modicon LMC058
- Bus length
- 2500 m
- Current consumption
- 25 mA at 24 V DC for input/output; 100 mA at 5 V DC for bus
- Power dissipation in W
- 1.1 W
- Local signalling
- 1 LED green for power supply; 1 LED red for power supply; 1 LED yellow for communication data bus
- Housing colour
- White
- Height
- 99 mm
- Width
- 12.5 mm
- Depth
- 75 mm
- Product weight
- 0.025 kg
- IP degree of protection
- IP20; IP67
- Marking
- CE
- Product certifications
- CULus; GOST-R; CSA; C-Tick
- Standards
- UL 508; IEC 61131-2; CSA C22.2 No 213; CSA C22.2 No 142
- Ambient air temperature for operation
- 0…50 °C (vertical installation); 0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation)
- Ambient air temperature for storage
- -25…70 °C
- Relative humidity
- 5…95 % without condensation
- Operating altitude
- 0...2000 m
- Pollution degree
- 2
- Vibration resistance
- 1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail
- Shock resistance
- 15 gn for 11 ms
- Warranty (in months)
- 18
- EAN
- 3595864074887
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3595864074887
- MPN TM5SBET1
More from Schneider Electric
Schneider Electric
Schneider NSX100H Maximum breaker - 3606481998590
C10H32D040
Schneider Electric

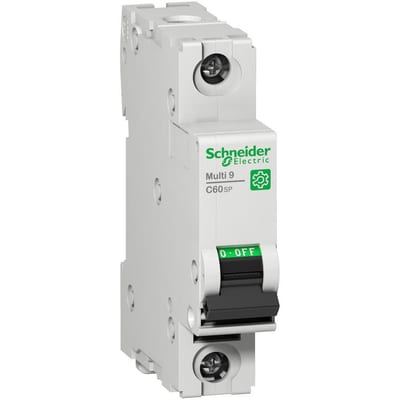

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 40A, 1P, C
M9F22140
Schneider Electric

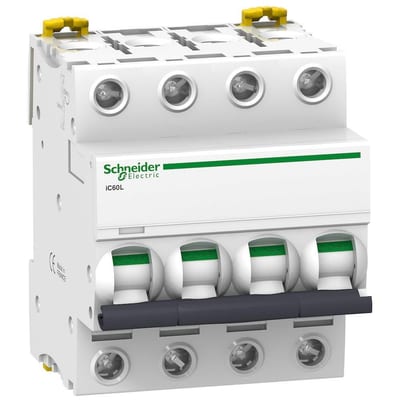

Schneider ACTI9 IC60L Circuit breaker - ACTI9 IC60, 1A, 4P, B
A9F93401
Schneider Electric

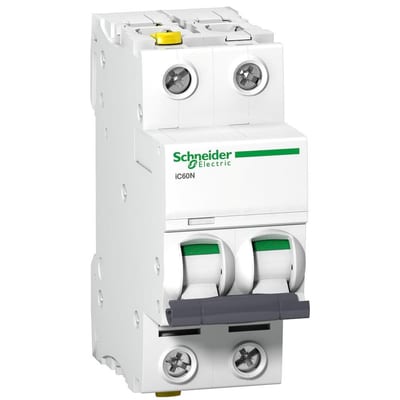

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 32A, 2P, D
A9F05232
Schneider Electric

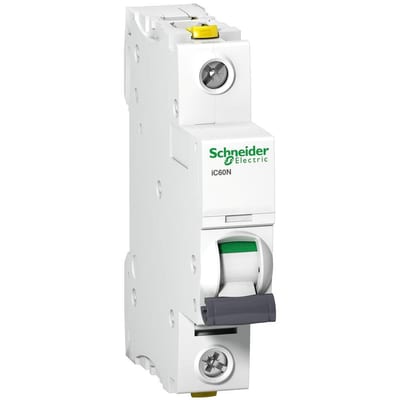

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 25A, 1P, B
A9F03125
Schneider Electric

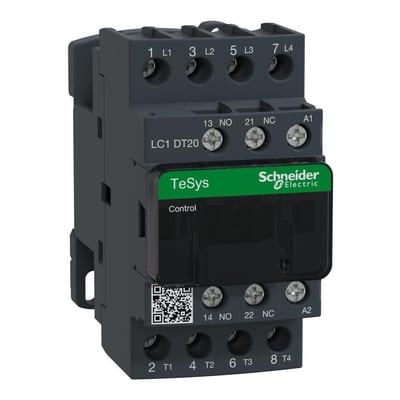

Schneider LC1D Contactor - TeSys D, 4P, 1NO - 1NC, 24V
LC1DT20B7
Schneider Electric

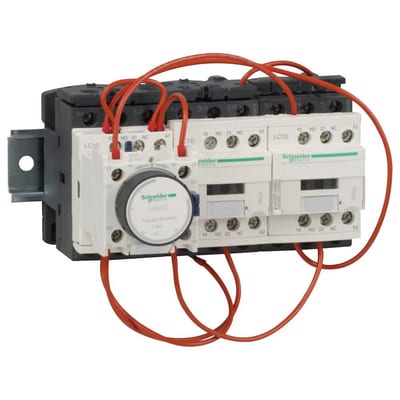

Schneider LC3D Y/D Starter - 24V, 18.5kW 3389110549225
