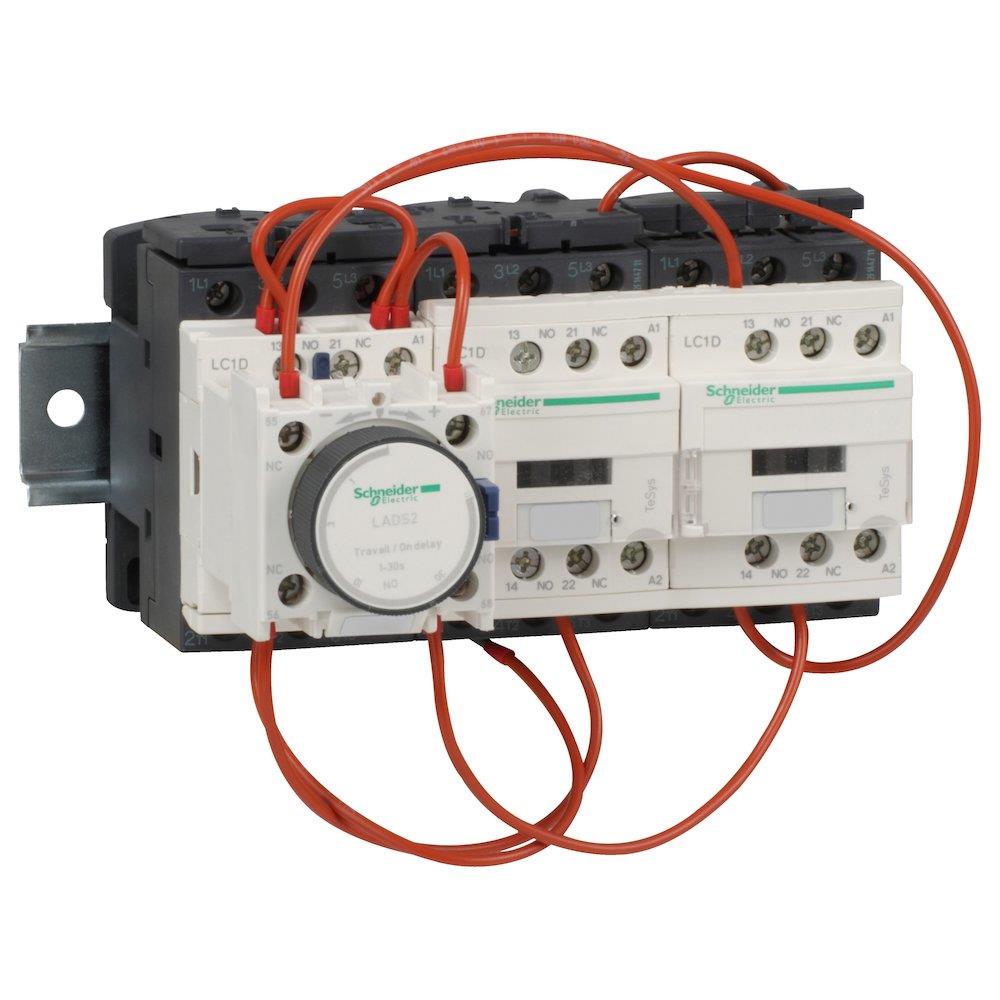

Schneider LC3D Y/D Starter - 24V, 18.5kW 3389110549225

Schneider LC3D Y/D Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 24 V, power 18.5 kW. Supplied under manufacturer part number LC3D180AB7, EAN 3389110549225, HS code 8536.50, country of origin France.

Product type

Motor starters Product group: Components for panels and boxes Voltage: 24 V Power: 18.5 kW REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 10.7574 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85365080 HS code: 8536.50 Manufacturer part number: LC3D180AB7 Range: TeSys; TeSys Deca Product name: TeSys Deca Product or component type: Star delta starter Device short name: LC3D Contactor application: Motor control Utilisation category: AC-3 Device presentation: Pre-wired Poles description: 3 x 3P power pole contact composition: 3 x 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit Motor power kW: 11 kW at 220/230 V AC 50/60 Hz; 22 kW at 415 V AC 50/60 Hz; 22 kW at 440 V AC 50/60 Hz; 18.5 kW at 380/400 V AC 50/60 Hz Control circuit type: AC at 50/60 Hz [Uc] control circuit voltage: 24 V AC 50/60 Hz Auxiliary contact composition: 1 NC for KM1 star contactor [Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947 Overvoltage category: III [Ui] rated insulation voltage: Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1; Signalling circuit: 1000 V conforming to IEC 60947-1 Electrical durability: 1.65 Mcycles 18 A AC-3 at Ue <= 440 V safety cover: Protective cover Interlocking type: Mechanical Mounting support: Rail Standards: EN 60947-4-1; EN 60947-5-1; IEC 60947-5-1; UL 508; IEC 60947-4-1; CSA C22.2 No 14; IEC 60335-1 Product certifications: CSA; DNV; UL; CCC; BV; RINA; GOST; LROS (Lloyds register of shipping); GL Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Tightening torque: Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Maximum operating rate: 30 cyc/h 60 °C Starting time: 30 s Coil technology: Without built-in suppressor module Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W at 50/60 Hz Auxiliary contacts type: Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC; Mirror contact conforming to IEC 60947-4-1 3 x 1 NC Signalling circuit frequency: 25...400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Width: 144 mm Height: 124 mm Depth: 143 mm Product weight: 1.73 kg Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 front face conforming to IEC 60529 Climatic withstand: conforming to IACS E10; conforming to IEC 60947-1 Annex Q category D Protective treatment: TH conforming to IEC 60068-2-30 Pollution degree: 3 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz; Vibrations contactor closed: 4 Gn, 5...300 Hz; Shocks contactor closed: 15 Gn for 11 ms; Shocks contactor open: 6 Gn for 11 ms Warranty (in months): 18 EAN: 3389110549225

HS Code

8536.50

• EAN 3389110549225
• MPN LC3D180AB7
