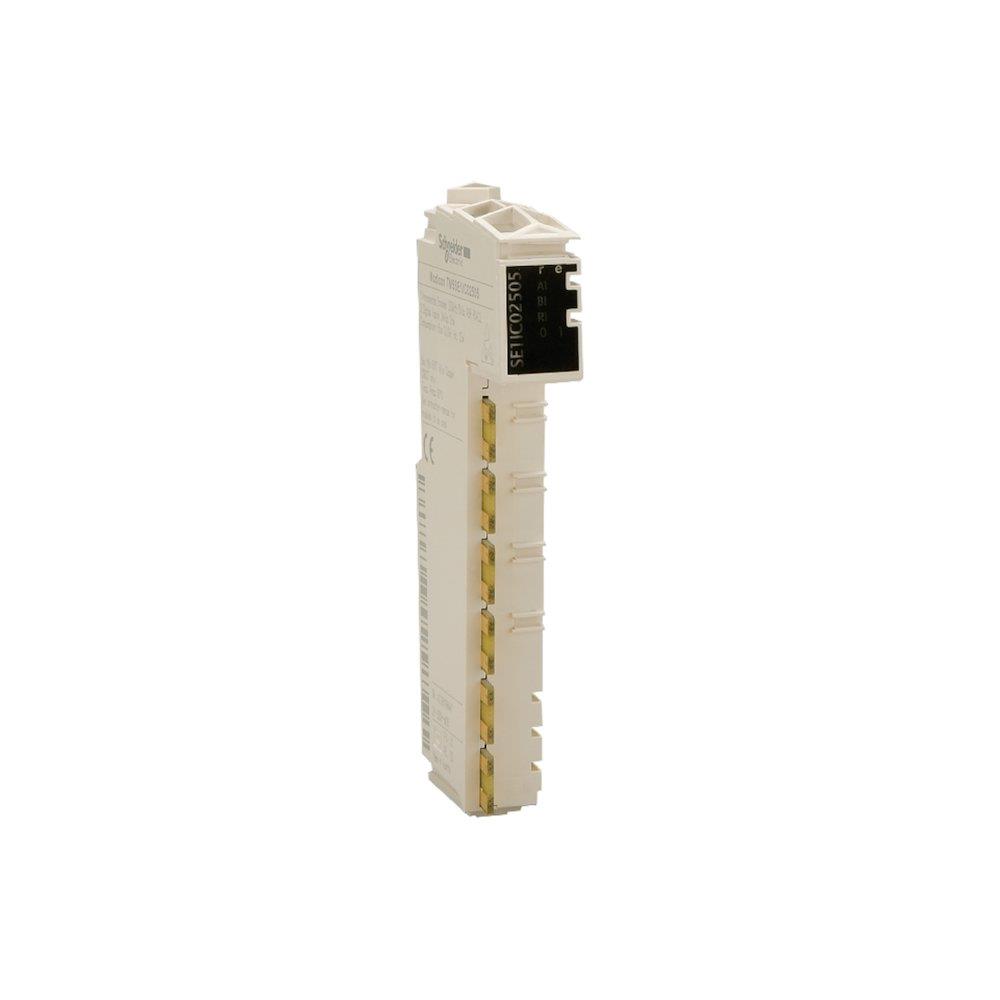

Schneider Modicon TM5 Expansion Module - 3595864074863

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Supplied under manufacturer part number TM5SE1SC10005, EAN 3595864074863, HS code 9029.10, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Carbon footprint (EPD)

0.3401 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

90291000

HS code

9029.10

Manufacturer part number

TM5SE1SC10005

Range of product

Modicon TM5

Product or component type

Counter module

Function of module

2 x 24 V DC sink auxiliary inputs; 24 V DC encoder power supply

Discrete input number

1

Counting frequency

1 MHz

Encoder type

1 absolute encoder

Product compatibility

Logic controller; Motion controller

Range compatibility

Modicon LMC058; Modicon M258

Counter inputs resolution

32 bits

Maximum cycle time

2 ms

Input compatibility

1 absolute encoder (5 V)

Isolation

500 Vrms AC insulation between channel and bus

Discrete input logic

Sink

Discrete input voltage

24 V DC

Discrete input current

3.3 mA at 24 V

Input resistance

7.19 kOhm

Current consumption

2 mA at 5 V DC bus; 63 mA at 24 V DC input/output

Maximum power dissipation in W

1.51 W

Marking

CE

DC supply voltage

24 V

Height

99 mm

Width

12.5 mm

Depth

75 mm

Standards

CSA C22.2 No 213; IEC 61131-2; UL 508; CSA C22.2 No 142

Product certifications

GOST-R; C-Tick; CSA; cULus

Ambient air temperature for operation

0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation); 0…50 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20 conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

1 gn at 8.4…150 Hz on DIN rail; 3.5 mm at 5…8.4 Hz on DIN rail

Shock resistance

15 gn for 11 ms

Resistance to electrostatic discharge

4 kV on contact conforming to IEC 61000-4-2; 8 kV in air conforming to IEC 61000-4-2

Resistance to electromagnetic fields

1 V/m 2...2.7 GHz conforming to IEC 61000-4-3; 10 V/m 80...2000 MHz conforming to IEC 61000-4-3

Resistance to fast transients

1 kV (I/O) conforming to IEC 61000-4-4; 1 kV (shielded cable) conforming to IEC 61000-4-4; 2 kV (power lines) conforming to IEC 61000-4-4

Surge withstand

0.5 kV differential mode conforming to IEC 61000-4-5; 1 kV common mode conforming to IEC 61000-4-5

Electromagnetic compatibility

EN/IEC 61000-4-6

Disturbance radiated/conducted

CISPR 11

Warranty (in months)

18

EAN

3595864074863

HS Code

9029.10

• EAN 3595864074863
• MPN TM5SE1SC10005
