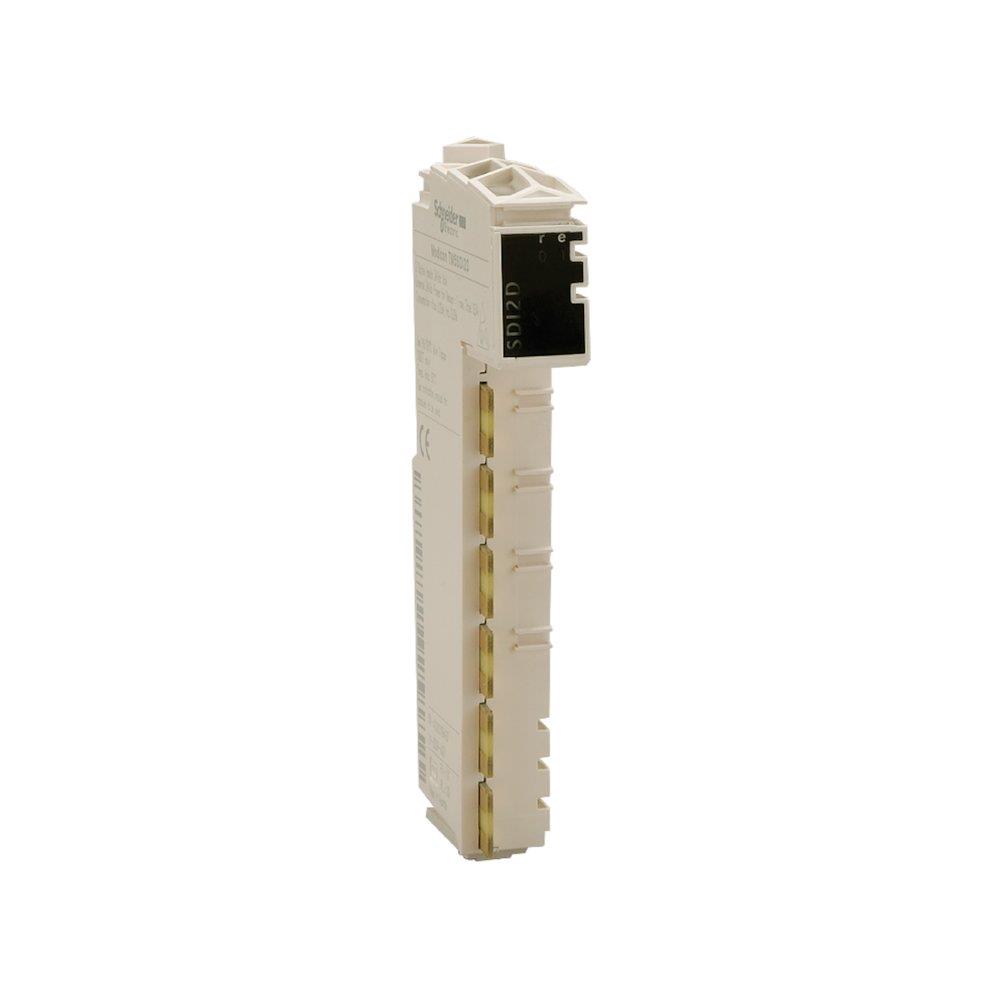

Schneider Modicon TM5 Expansion Module - 24V, 4

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V, number of digital outputs 4. Supplied under manufacturer part number TM5SDO4T, EAN 3595864074627, HS code 8538.90, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Supply voltage

24 V

Number of digital outputs

4

Carbon footprint (EPD)

0.3313 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

TM5SDO4T

Range of product

Modicon TM5

Product or component type

Discrete output module

Product compatibility

PacDrive LMC Pro 2; PacDrive LMC Pro; PacDrive LMC Eco; Logic controller; Motion controller

Range compatibility

Modicon LMC058; PacDrive LMC motion controller; Modicon M258

Discrete output number

4

Discrete output logic

Source

Discrete output voltage

24 V DC (20.4...28.8 V) for transistor

Current per channel

0.5 A

Maximum current per output common

2 A

Peak output current

12 A

Switching frequency

<= 500 Hz resistive load

Response time

<= 300 µs from state 0 to state 1 for output; <= 300 µs from state 1 to state 0 for output

Maximum leakage current

5 µA 24 V DC when switched off

Maximum voltage drop

<0.3 V at 500 mA for output; <2 V at 500 mA for sensor supply

Typical current consumption

20 mA at 24 V DC; 32 mA at 5 V DC

Electrical connection

3 wires

Power dissipation in W

0.86 W

Local signalling

1 LED (green) for power supply; 1 LED (red) for power supply; 4 LEDs (yellow) for output status

Height

99 mm

Width

12.5 mm

Depth

75 mm

Product weight

0.025 kg

Electromagnetic compatibility

Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2; Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Conducted and radiated emissions conforming to CISPR 11

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; GOST-R; CULus; C-Tick

Standards

IEC 61131-2; CSA C22.2 No 213; UL 508; CSA C22.2 No 142

Ambient air temperature for operation

-10…55 °C without derating (horizontal installation); -10…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation)

Ambient air temperature for storage

-40…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074627

HS Code

8538.90
