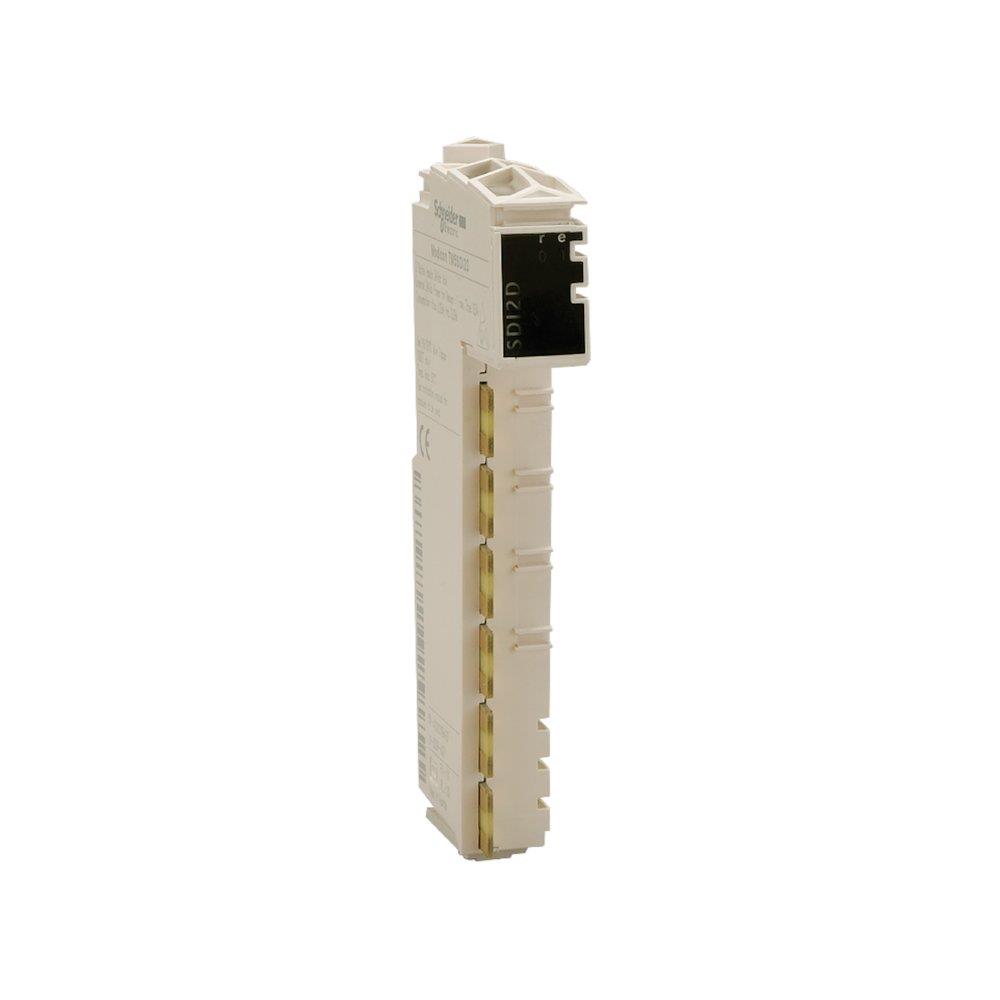

Schneider Modicon TM5 Expansion Module - 24V, 12 3595864074450

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V, number of digital inputs 12. Supplied under manufacturer part number TM5SDI12D, EAN 3595864074450, HS code 8538.90, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Supply voltage

24 V

Number of digital inputs

12

Carbon footprint (EPD)

0.3725 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

TM5SDI12D

Range of product

Modicon TM5

Product or component type

Discrete input module

Product compatibility

Motion controller; PacDrive LMC Pro; PacDrive LMC Pro 2; Logic controller; PacDrive LMC Eco

Range compatibility

PacDrive LMC motion controller; Modicon M258; Modicon LMC058

Discrete input number

12

Discrete input voltage

24 V DC (voltage limits: 20.4...28.8 V)

Discrete input logic

Sink

Discrete input compatibility

12 at 24 V DC

Discrete input current

3.75 mA at 24 V DC

Voltage state 1 guaranteed

>= 15 V

Voltage state 0 guaranteed

<= 5 V

Input impedance

6.4 kOhm

Input filtering

<= 25 ms configurable by software; <= 100 ms hardware

Typical current consumption

36 mA at 5 V DC; 73 mA at 24 V DC

Electrical connection

1 wire

Power dissipation in W

1.93 W

Local signalling

1 LED (green) for power supply; 1 LED (red) for power supply; 12 LEDs (green) for input status

Height

99 mm

Width

12.5 mm

Depth

75 mm

Product weight

0.025 kg

Electromagnetic compatibility

Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2; Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Conducted and radiated emissions conforming to CISPR 11

IP degree of protection

IP20

Marking

CE

Product certifications

CULus; C-Tick; GOST-R; CSA

Standards

CSA C22.2 No 213; IEC 61131-2; UL 508; CSA C22.2 No 142

Ambient air temperature for operation

-10…55 °C without derating (horizontal installation); -10…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation)

Ambient air temperature for storage

-40…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074450

HS Code

8538.90
