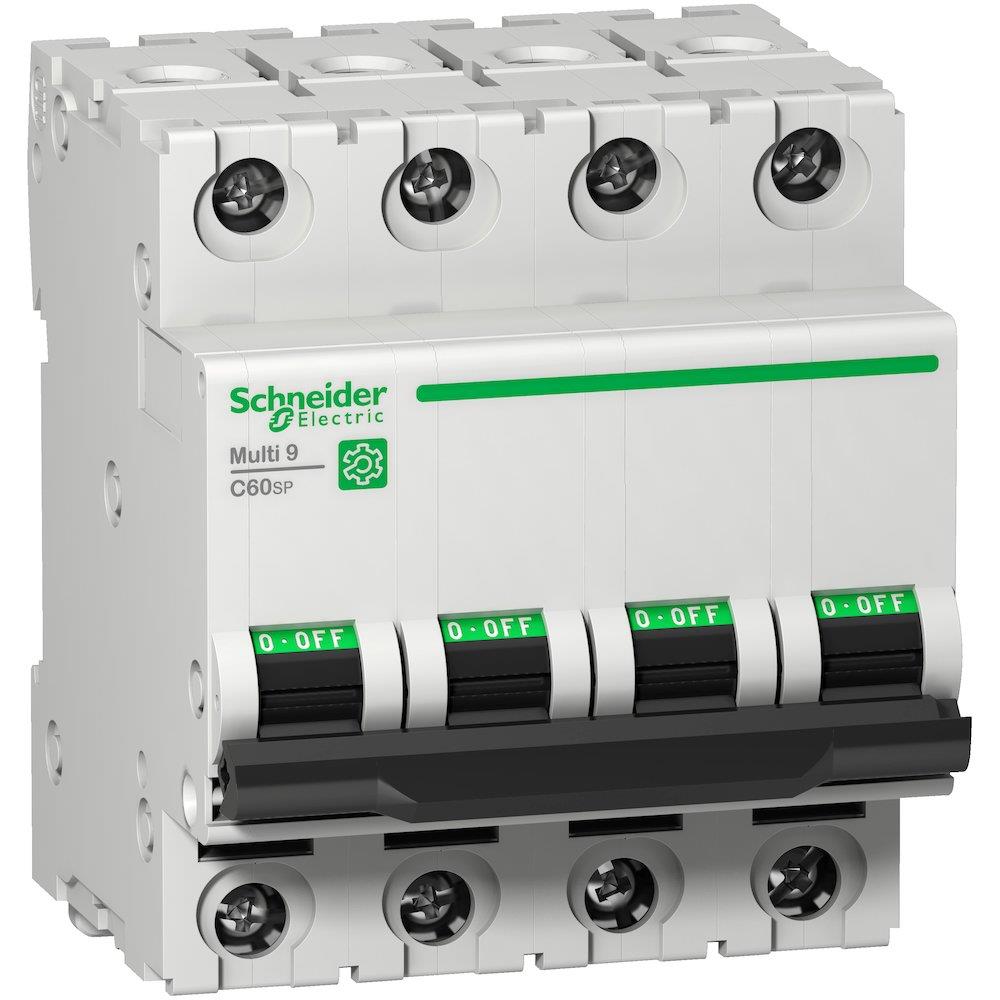

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 20A, 4P, D

Schneider Multi9 C60SP Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Multi9 C60, current rating 20 A, number of poles 4P, tripping characteristic D. Supplied under manufacturer part number M9F23420, EAN 3606481169266, HS code 8536.20, country of origin France.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Multi9 C60

Current rating

20 A

Number of poles

4P

Tripping characteristic

D

Breaking capacity

10 kA

Width

72 mm

REACH SVHC substance above 0.1%

Triphenyl phosphate

Carbon footprint (EPD)

0.7980 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

France

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

M9F23420

Range

Multi9

Product name

Multi9 C60

Product or component type

Miniature circuit-breaker

Device short name

C60SP

Device application

Distribution

Poles description

4P

Number of protected poles

4

[In] rated current

20 A at 25 °C conforming to EN/IEC 60947-2

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

D

Standards

EN/IEC 60947-2; GB/T 14048.2; UL 1077; CSA C22.2 No 235

Product certifications

IEC; CCC; UR; CSA

[Ue] rated operational voltage

240 V AC 50/60 Hz; 415 V AC 50/60 Hz; 440 V AC 50/60 Hz

Magnetic tripping limit

12 x In +/- 20 % AC

[Ics] rated service breaking capacity

4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC; 15 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC; 4.5 kA 75 % conforming to GB/T 14048.2 - 440 V AC; 7.5 kA 75 % conforming to GB/T 14048.2 - 415 V AC; 15 kA 75 % conforming to GB/T 14048.2 - 240 V AC

[Ui] rated insulation voltage

500 V AC conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

8

Height

81 mm

Depth

72 mm

Colour

Grey

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Provision for padlocking

Padlockable

Connections - terminals

Tunnel type terminal (top or bottom)1…25 mm² (18 AWG...8 AWG) - rigid; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible with ferrule; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2.5 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-30…70 °C

Ambient air temperature for storage

-40…80 °C

Warranty (in months)

18

EAN

3606481169266

HS Code

8536.20

• EAN 3606481169266
• MPN M9F23420
