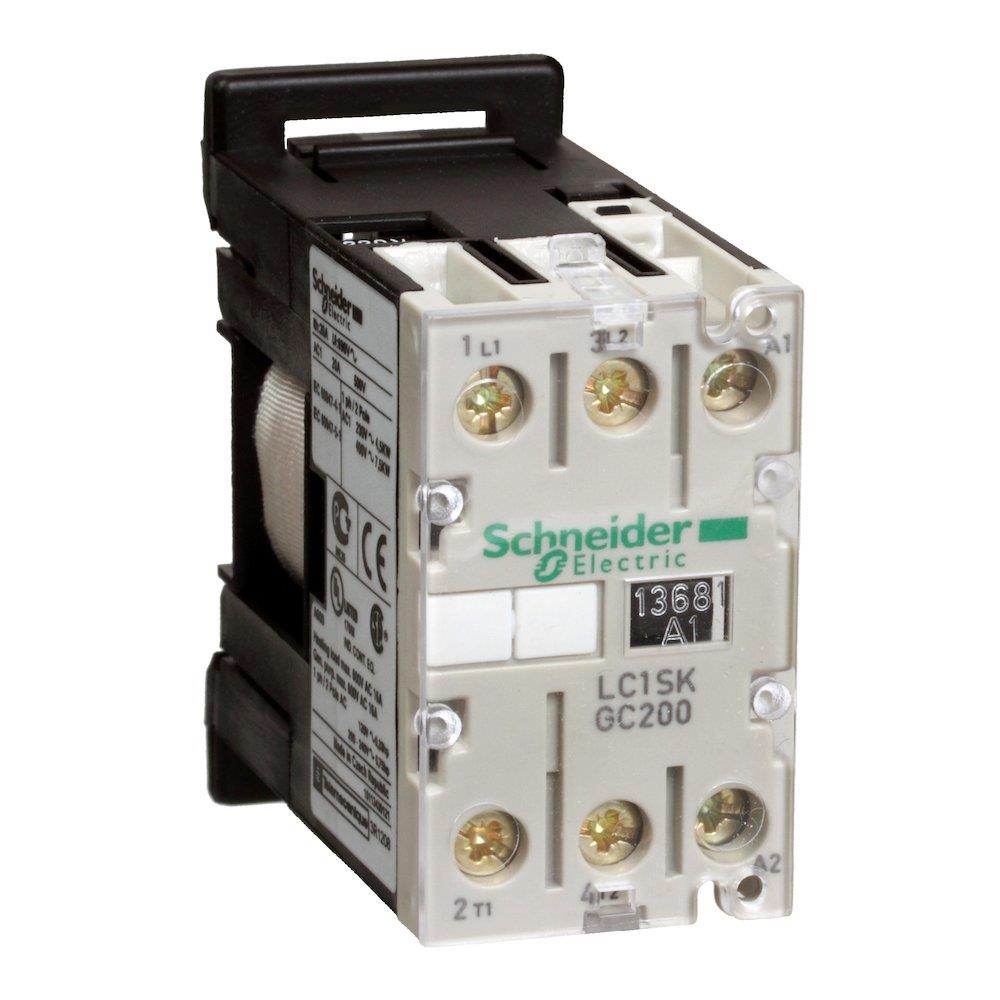

Schneider LC1SK Contactor - TeSys SK, 24V

Schneider LC1SK Contactor. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys SK, voltage 24 V. Supplied under manufacturer part number LC1SKGC200B7, EAN 3389110562972, HS code 8536.41, country of origin Czechia.

Product type

Contactors and thermal relays motor control

Product group

Components for panels and boxes

Series

TeSys SK

Voltage

24 V

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.5893 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85364190

HS code

8536.41

Manufacturer part number

LC1SKGC200B7

Range

TeSys

Product name

TeSys SK

Product or component type

Mini contactor

Device short name

LC1SKGC

Contactor application

Resistive load; Motor control

Utilisation category

AC-3; AC-1

power pole contact composition

2P

Pole contact composition

2 NO

[Ie] rated operational current

5 A at <= 400 V AC AC-3; 20 A (at <50 °C) AC AC-1

[Ue] rated operational voltage

Power circuit: 690 V AC 50/60 Hz

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

24 V AC 50/60 Hz

[Ith] conventional free air thermal current

20 A (at 55 °C) for power circuit

Irms rated making capacity

50 A AC conforming to NF C 63-110; 50 A AC conforming to IEC 60947

Rated breaking capacity

40 A at <= 400 V conforming to NF C 63-110; 40 A at <= 400 V conforming to IEC 60947

[Icw] rated short-time withstand current

40 A 55 °C for power circuit

Associated fuse rating

20 A gI at <= 440 V for power circuit

Average impedance

4 mOhm - Ith 20 A 50 Hz for power circuit

[Ui] rated insulation voltage

Power circuit: 690 V conforming to BS 5424; Power circuit: 690 V conforming to IEC 60947; Power circuit: 690 V conforming to UL 508; Power circuit: 690 V conforming to VDE 0110 group C; Power circuit: 690 V conforming to CSA C22.2 No 14

Mounting support

Rail

Standards

EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

CB Scheme; CE; UKCA; EAC; cULus

Connections - terminals

Connector 1 cable(s) 1.5…6 mm²solid; Connector 2 cable(s) 1.5…4 mm²solid; Connector 1 cable(s) 0.5…6 mm²flexible without cable end; Connector 2 cable(s) 0.35…2.5 mm²flexible without cable end; Connector 1 cable(s) 0.35…6 mm²flexible with cable end; Connector 2 cable(s) 0.35…1.5 mm²flexible with cable end

Tightening torque

Power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1

Operating time

6...8 ms coil de-energisation and NO opening; 7...14 ms coil energisation and NO closing

Mechanical durability

10 Mcycles

Maximum operating rate

1200 cyc/h

Control circuit voltage limits

Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C); Drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C)

Inrush power in VA

16 VA 50/60 Hz (at 20 °C)

Hold-in power consumption in VA

4.2 VA 50/60 Hz (at 20 °C)

Heat dissipation

1.4 W at 50/60 Hz

IP degree of protection

IP2X conforming to VDE 0106

Protective treatment

TC conforming to IEC 60068; TC conforming to DIN 50015

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-50…70 °C

Operating altitude

2000 m without derating

Height

56 mm

Width

27 mm

Depth

55.5 mm

Product weight

0.132 kg

Warranty (in months)

18

EAN

3389110562972

HS Code

8536.41

• EAN 3389110562972
• MPN LC1SKGC200B7
