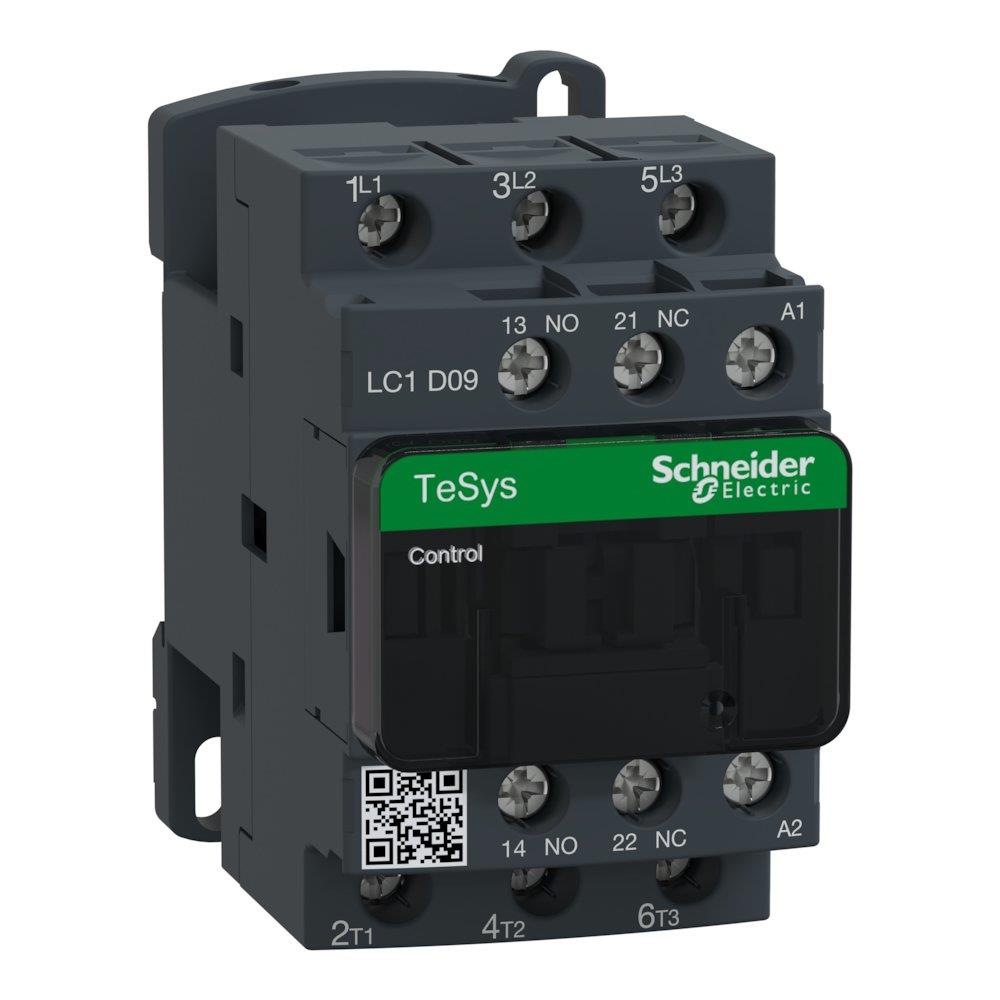

Schneider LC1D Contactor - TeSys D, 3P, 1NO - 1NC, 24V

Schneider LC1D Contactor. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, number of poles 3P, contact type 1NO -1NC, voltage 24 V. Supplied under manufacturer part number LC1D09B7TQ, EAN 3389110348699, HS code 8536.41, country of origin France.

Product type

Contactors and thermal relays motor control Product group: Components for panels and boxes Series: TeSys D Number of poles: 3P Contact type: 1NO -1NC Voltage: 24 V REACH SVHC substance above 0.1%: None Sales unit: Pack Carbon footprint (EPD): 1.9099 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85364190 HS code: 8536.41 Manufacturer part number: LC1D09B7TQ Range: TeSys; TeSys Deca Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Motor control; Resistive load Utilisation category: AC-3; AC-1; AC-3e Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage: 24 V AC 50/60 Hz Motor power kW: 4 kW at 380...400 V AC 50/60 Hz; 5.5 kW at 500 V AC 50/60 Hz; 5.5 kW at 660...690 V AC 50/60 Hz; 4 kW at 415...440 V AC 50/60 Hz; 2.2 kW at 220...230 V AC 50/60 Hz; 2.2 kW at 400 V AC (AC-4) Motor power hp: 0.5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA; 0.5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL; 1 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA; 1 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL; 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to CSA; 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors conforming to CSA; 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors conforming to UL; 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to CSA; 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to UL; 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to CSA; 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to UL; 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to UL Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit; 25 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1; 250 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 250 kA at 440 V for power circuit conforming to IEC 60947 Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1; 20 A at <= 690 V coordination type 2 for power circuit; 25 A at <= 690 V coordination type 1 for power circuit Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit Power dissipation per pole: 0.2 W AC-3; 1.56 W AC-1; 0.2 W AC-3e [Ui] rated insulation voltage: Control circuit: 600 V CSA certified; Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Control circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 690 V conforming to IEC 60947-4-1 Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 15 Mcycles Control circuit type: AC at 50/60 Hz Coil technology: Without built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (60 °C):operational AC 50 Hz; 0.85...1.1 Uc (60 °C):operational AC 60 Hz Inrush power in VA: 70 VA cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 7 VA 50/60 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W at 50/60 Hz for control circuit Operating time: 4...19 ms opening; 12...22 ms closing Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Tightening torque: Control circuit: 1.7 N.m - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - with screwdriver Philips No 2; Power circuit: 1.7 N.m - with screwdriver flat Ø 6 mm; Power circuit: 1.7 N.m - with screwdriver Philips No 2; Control circuit: 1.7 N.m - with screwdriver pozidriv No 2; Power circuit: 1.7 N.m - with screwdriver pozidriv No 2 Auxiliary contact composition: 1 NO + 1 NC minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts; 1.5 ms on energisation between NC and NO contacts Mounting support: Plate; Rail Standards: EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 14; EN/IEC 60947-5-1; IEC 60335-1 Product certifications: UL; DNV; BV; CSA; LROS (Lloyds register of shipping); CCC; GOST; GL; RINA; UKCA IP degree of protection: IP2X conforming to IEC 60529; IP2X conforming to VDE 0106 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device: -5…60 °C; -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor opened (10 Gn for 11 ms) ; Shocks contactor closed (15 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) Height: 77 mm Width: 45 mm Depth: 86 mm Product weight: 3.2 kg Quantity per set: Set of 10 Warranty (in months): 18 EAN: 3389110348699

HS Code

8536.41

• EAN 3389110348699
• MPN LC1D09B7TQ
