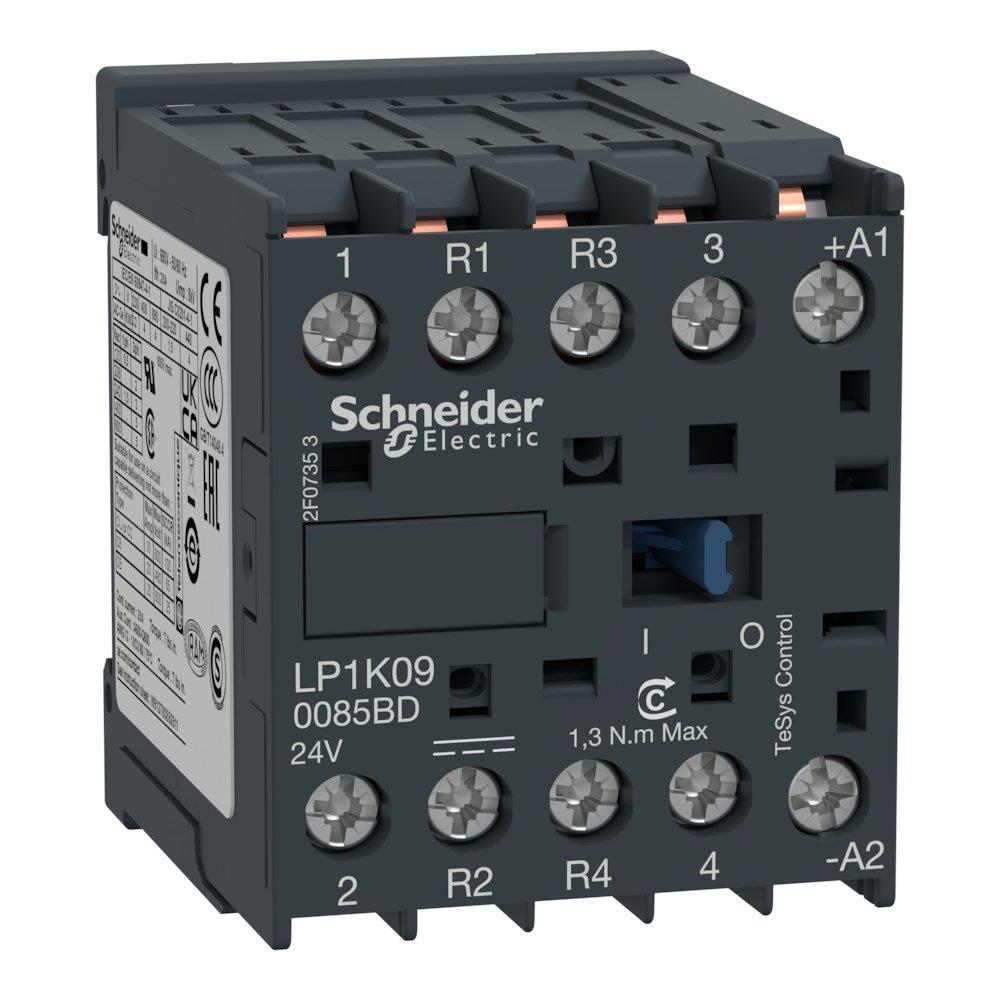

Schneider LP1K Contactor - TeSys K

Schneider LP1K Contactor. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys K. Supplied under manufacturer part number LP1K090085MD, EAN 3389110496161, HS code 8536.49, country of origin France.

Product type

Contactors and thermal relays motor control

Product group

Components for panels and boxes

Series

TeSys K

Carbon footprint (EPD)

1.0359 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85364900

HS code

8536.49

Manufacturer part number

LP1K090085MD

Range

TeSys

Product or component type

Contactor

Device short name

LP1K

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

power pole contact composition

2 NO + 2 NC

[Ue] rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz

[Ie] rated operational current

20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

Control circuit type

DC standard

[Uc] control circuit voltage

220 V DC

Motor power kW

4 kW at 690 V AC 50/60 Hz AC-4

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit

Irms rated making capacity

110 A AC for power circuit conforming to IEC 60947

Rated breaking capacity

110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947; 110 A at 415 V conforming to IEC 60947; 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947

[Icw] rated short-time withstand current

90 A 50 °C - 1 s for power circuit; 85 A 50 °C - 5 s for power circuit; 80 A 50 °C - 10 s for power circuit; 60 A 50 °C - 30 s for power circuit; 45 A 50 °C - 1 min for power circuit; 40 A 50 °C - 3 min for power circuit; 20 A 50 °C - >= 15 min for power circuit

Associated fuse rating

25 A gG at <= 440 V for power circuit; 25 A aM for power circuit

Average impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

[Ui] rated insulation voltage

Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA C22.2 No 14

Inrush power in W

3 W (at 20 °C)

Hold-in power consumption in W

3 W at 20 °C

Heat dissipation

1.3 W

Control circuit voltage limits

Operational: 0.8...1.15 Uc (at = 0.10 Uc (at <50 °C)

Connections - terminals

Solder pins (external diameter: 0.035 mm)

Maximum operating rate

3600 cyc/h

Coil technology

Without built-in suppressor module

Mounting support

Printed circuit boards

Operating time

30...40 ms coil energisation and NO closing; 10 ms coil de-energisation and NO opening; 25...35 ms coil energisation and NC opening; 15 ms coil de-energisation and NC closing

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

10 Mcycles

Electrical durability

0.16 Mcycles 20 A AC-1 at Ue <= 690 V

Height

58 mm

Width

45 mm

Depth

57 mm

Product weight

0.225 kg

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4

Product certifications

CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

IP degree of protection

IP2X

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-50…80 °C

Operating altitude

2000 m without derating

Flame retardance

V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Warranty (in months)

18

EAN

3389110496161

HS Code

8536.49

• EAN 3389110496161
• MPN LP1K090085MD
