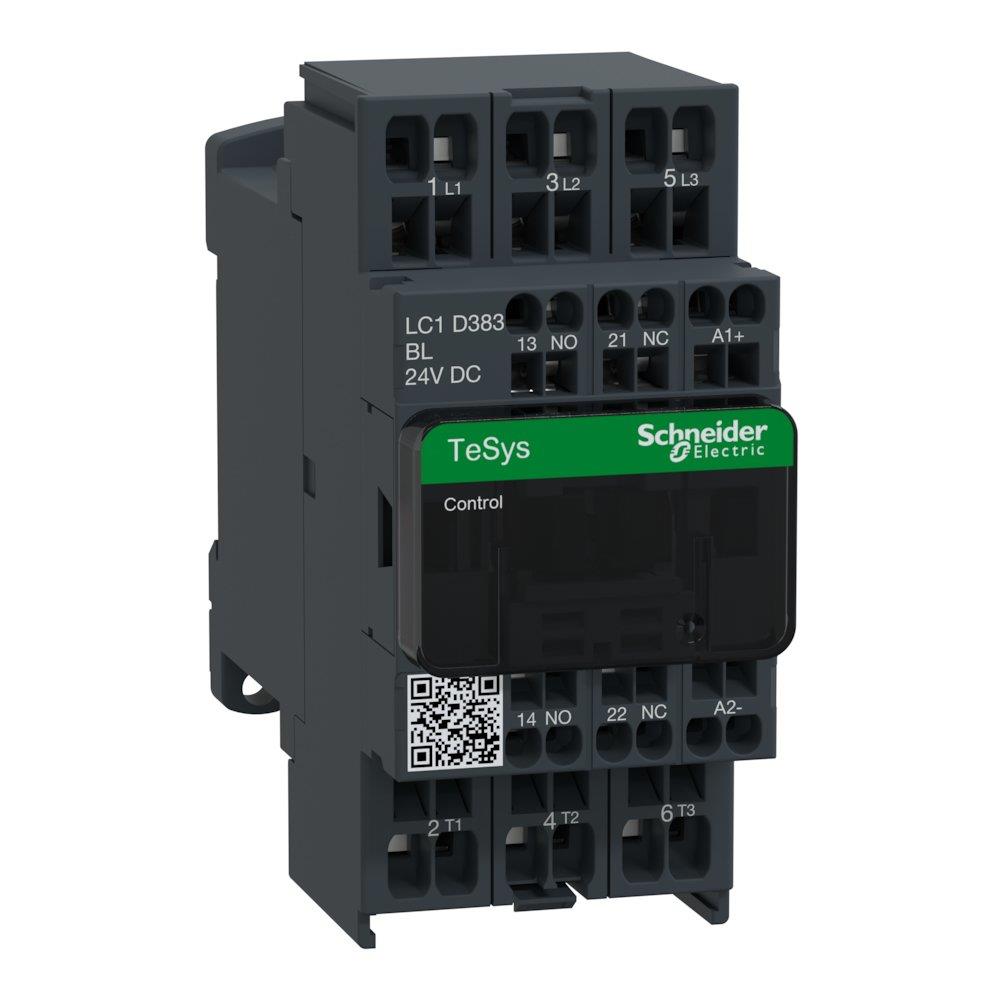

Schneider LC1D Contactor - TeSys D, 38A, 3P, 24 DCV

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 38 A, number of poles 3P, voltage 24 V DC. Supplied under manufacturer part number LC1D383BL, EAN 3389110809268, HS code 8536.49, country of origin France.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D Current: 38 A Number of poles: 3P Voltage: 24 V DC REACH SVHC substance above 0.1%: Lead Carbon footprint (EPD): 4.3737 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: LC1D383BL Range: TeSys; TeSys Deca Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load; Motor control Utilisation category: AC-1; AC-3; AC-3e Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage: 24 V DC Motor power kW: 18.5 kW at 380...400 V AC 50 Hz (AC-3); 18.5 kW at 500 V AC 50 Hz (AC-3); 18.5 kW at 660...690 V AC 50 Hz (AC-3); 18.5 kW at 415...440 V AC 50 Hz (AC-3); 9 kW at 220...230 V AC 50 Hz (AC-3); 7.5 kW at 400 V AC 50 Hz (AC-4); 18.5 kW at 380...400 V AC 50 Hz (AC-3e); 18.5 kW at 500 V AC 50 Hz (AC-3e); 18.5 kW at 660...690 V AC 50 Hz (AC-3e); 18.5 kW at 415...440 V AC 50 Hz (AC-3e); 9 kW at 220...230 V AC 50 Hz (AC-3e) Motor power hp: 2 hp at 115 V AC 60 Hz for 1 phase motors; 5 hp at 230/240 V AC 60 Hz for 1 phase motors; 10 hp at 200/208 V AC 60 Hz for 3 phases motors; 10 hp at 230/240 V AC 60 Hz for 3 phases motors; 20 hp at 460/480 V AC 60 Hz for 3 phases motors; 25 hp at 575/600 V AC 60 Hz for 3 phases motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit; 50 A (at 60 °C) for power circuit Irms rated making capacity: 250 A DC for control circuit conforming to IEC 60947-5-1; 550 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 550 A at 440 V for power circuit conforming to IEC 60947 Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1; 63 A at <= 690 V coordination type 1 for power circuit; 63 A at <= 690 V coordination type 2 for power circuit Average impedance: 2 mOhm - Ith 50 A 50 Hz for power circuit Power dissipation per pole: 3 W AC-3; 5 W AC-1; 3 W AC-3e [Ui] rated insulation voltage: Control circuit: 600 V CSA certified; Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Control circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 690 V conforming to IEC 60947-4-1 Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 30 Mcycles Control circuit type: DC low consumption Coil technology: Built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.1...0.3 Uc (-40…70 °C):drop-out DC; 0.8...1.25 Uc (-40…60 °C):operational DC; 1...1.25 Uc (60…70 °C):operational DC Inrush power in W: 2.4 W (at 20 °C) Hold-in power consumption in W: 2.4 W at 20 °C Operating time: 77 ±15 % ms closing; 25 ±20 % ms opening Time constant: 28 ms Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: spring terminals 1 2.5 mm² - cable stiffness: flexible without cable end; Control circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end; Power circuit: spring terminals 1 4 mm² - cable stiffness: flexible without cable end; Power circuit: spring terminals 2 4 mm² - cable stiffness: flexible without cable end Auxiliary contact composition: 1 NO + 1 NC minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts; 1.5 ms on energisation between NC and NO contacts Mounting support: Plate; Rail Standards: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 60947-4-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; CSA C22.2 No 60947-4-1 Product certifications: UL; CCC; CSA; Marine; UKCA; EAC; CB Scheme IP degree of protection: IP2X conforming to IEC 60529; IP2X conforming to VDE 0106 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor closed (15 Gn for 11 ms) ; Shocks contactor opened (8 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) Height: 99 mm Width: 45 mm Depth: 101 mm Product weight: 0.54 kg Warranty (in months): 18 EAN: 3389110809268

HS Code

8536.49

• EAN 3389110809268
• MPN LC1D383BL
