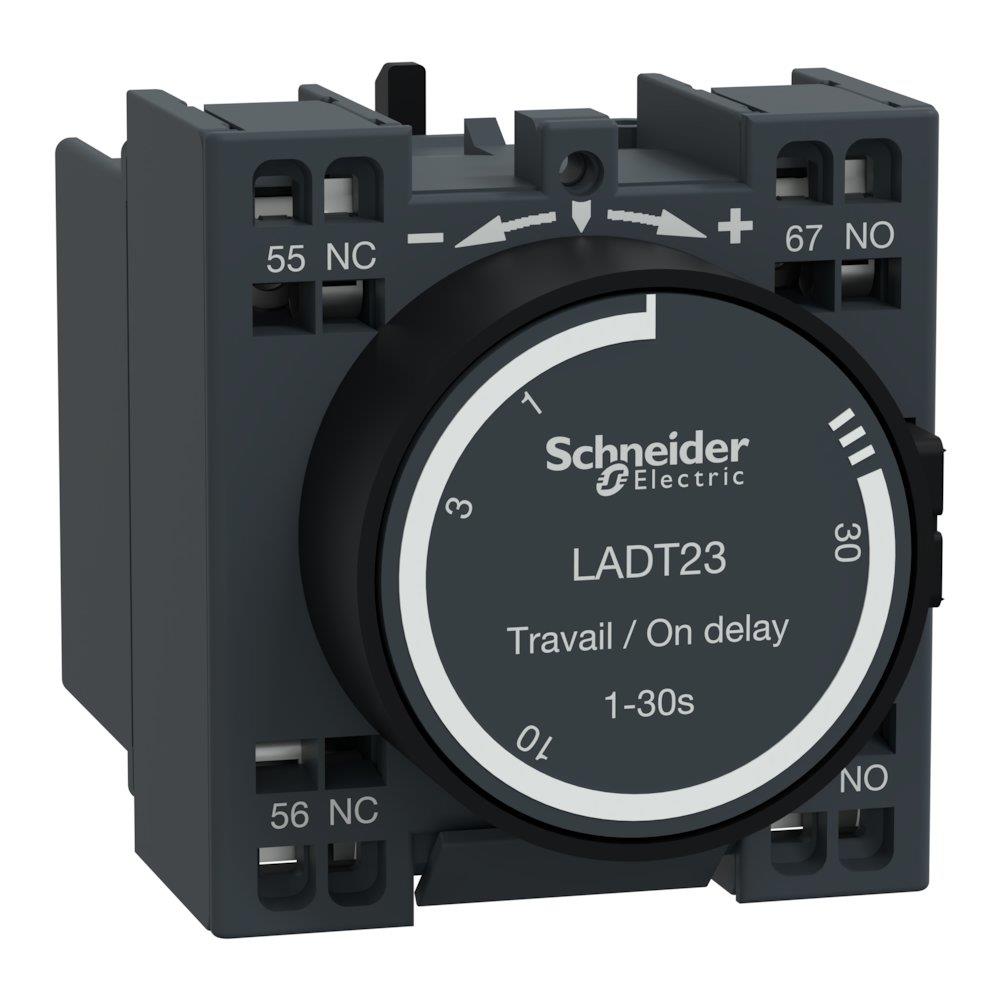

Schneider LADT Time Block - TeSys D 3389110821437

Schneider LADT Time Block. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LADT23, EAN 3389110821437, HS code 8536.50, country of origin France.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D REACH SVHC substance above 0.1%: Lead Carbon footprint (EPD): 0.8419 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85365080 HS code: 8536.50 Manufacturer part number: LADT23 Range: TeSys; TeSys Deca Product name: TeSys Deca Product or component type: Time delay auxiliary contact block Range compatibility: TeSys D CAD; TeSys D LC1D; TeSys Deca CAD; TeSys Deca LC1D Mounting location: Front Pole contact composition: 1 NO + 1 NC Contacts operation: Time delay Timer type: On delay Time delay range: 1...30 s [Ue] rated operational voltage: 690 V AC 25...400 Hz [Ie] rated operational current: 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13 [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1; 600 V conforming to UL; 600 V conforming to CSA [Ith] conventional free air thermal current: 10 A (at 60 °C) Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; EN 50012; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ Product certifications: CB; UL; CSA; CCC; EAC; UKCA Irms rated making capacity: 140 A AC; 250 A DC Permissible short-time rating: 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms Protection type: GG fuse 10 A Mechanical durability: 5 Mcycles minimum switching current: 5 mA minimum switching voltage: 17 V Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact Insulation resistance: > 10 MOhm Connections - terminals: Spring terminals 2 cable(s) 2.5 mm²flexible without cable end; Spring terminals 2 cable(s) 2.5 mm²rigid Height: 48 mm Width: 44 mm Depth: 61 mm Colour: Dark grey Environmental characteristic: Normal environment IP degree of protection: IP2X conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -40…70 °C Operating altitude: 3000 m Warranty (in months): 18 EAN: 3389110821437

HS Code

8536.50

• EAN 3389110821437
• MPN LADT23
