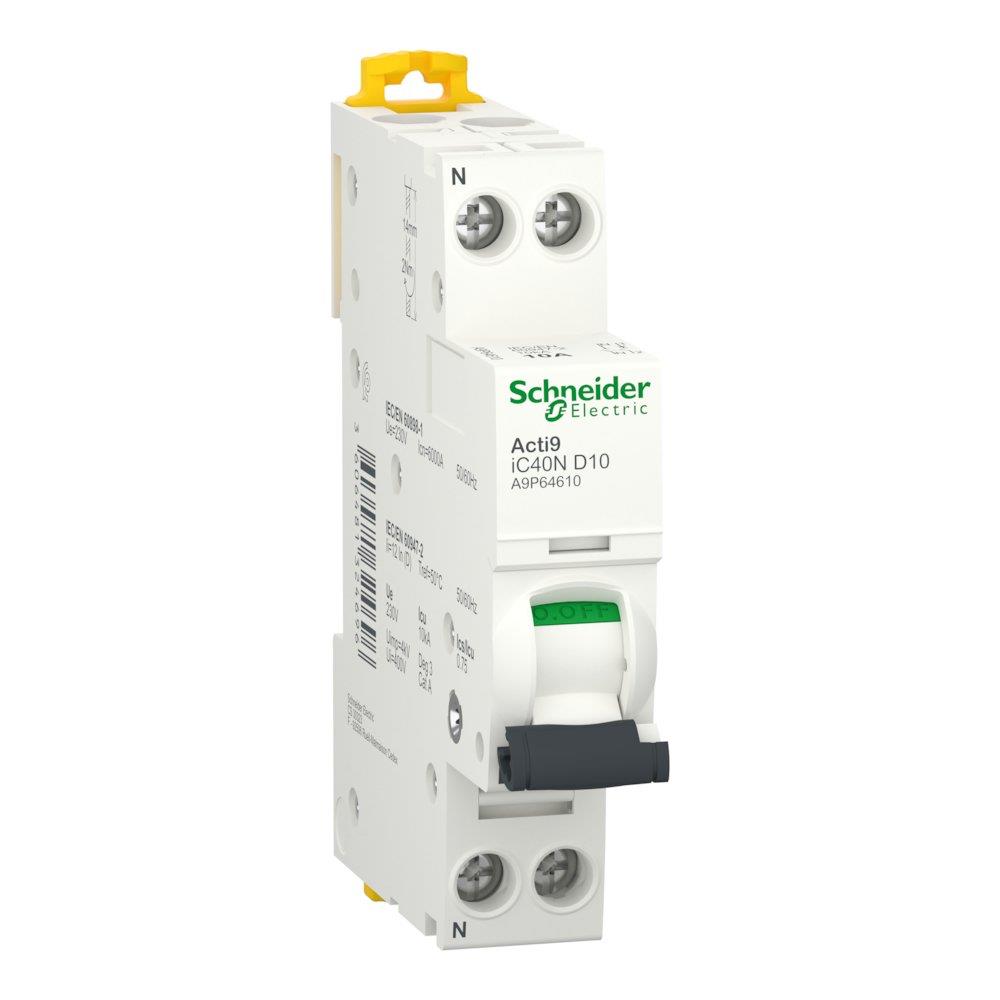

Schneider ACTI9 IC40N Circuit breaker - ACTI9 IC40, 10A, 1P + N, D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 iC40N Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC40, current rating 10 A, number of poles 1P + N, tripping characteristic D. Supplied under manufacturer part number A9P64610, EAN 3606481324696, HS code 8536.20, country of origin France.
Technical Specifications
- Product type
- Circuit breakers
- Product group
- Components for panels and boxes
- Series
- Acti9 iC40
- Current rating
- 10 A
- Number of poles
- 1P + N
- Tripping characteristic
- D
- Breaking capacity
- 6/10 kA
- Width
- 18 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.8190 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- France
- Customs tariff code (EU CN)
- 85362010
- HS code
- 8536.20
- Manufacturer part number
- A9P64610
- Range
- Acti9
- Product name
- Acti9 iC40
- Product or component type
- Miniature circuit-breaker
- Device short name
- iC40N
- Device application
- Distribution
- Poles description
- 1P + N
- Number of protected poles
- 1
- Neutral position
- Left
- [In] rated current
- 10 A
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- D
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- OVE; AENOR
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 230 V AC 50/60 Hz
- Magnetic tripping limit
- 10...14 x In conforming to EN/IEC 60898-1; 12 x In +/- 20 % conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1; 7.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Ui] rated insulation voltage
- 400 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 85 mm
- Depth
- 74 mm
- Product weight
- 120 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Separate block
- Standards
- EN/IEC 60898-1; EN/IEC 60947-2
- Product certifications
- CE; BV; RINA; DNV
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- EAN
- 3606481324696
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606481324696
- MPN A9P64610
More from Schneider Electric
Schneider Electric
Schneider Spacial SMX Base - PanelSet SMX, 500 x 100mm, PanelSet SMX, stainless steel 304L
NSYSPSX5100
Schneider Electric

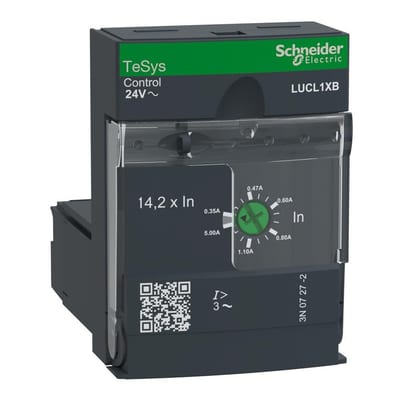

Schneider LUCL Short Circuit Release - TeSys Ultra 3389119408028
LUCL1XB
Schneider Electric

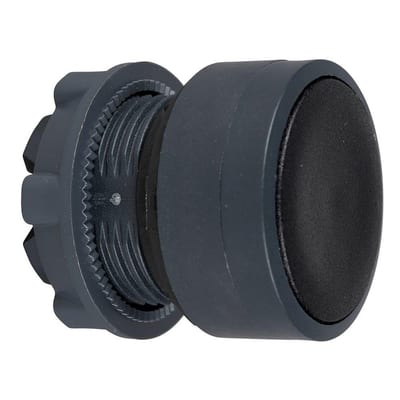

Schneider ZB5 Push Button Head with spring return - Harmony XB5, black
ZB5AA24
Schneider Electric

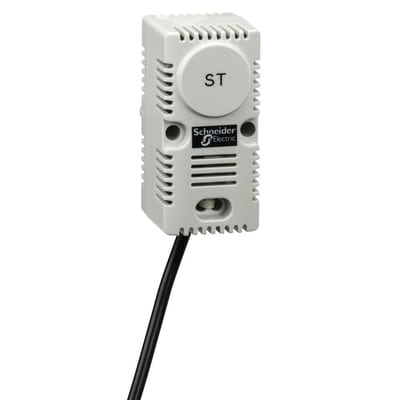

Schneider ClimaSys CC Temperature sensor
NSYCCASTE
Schneider Electric

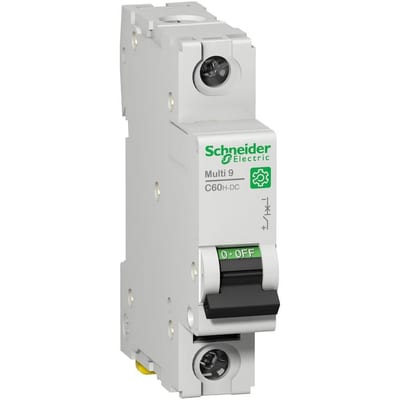

Schneider MULTI9 C60H-DC Circuit breaker - MULTI9 C60, 1A, 2P, C
M9U21101
Schneider Electric
Schneider NSX100F Maximum breaker - 3606481997029
C10F3TM040
Schneider Electric

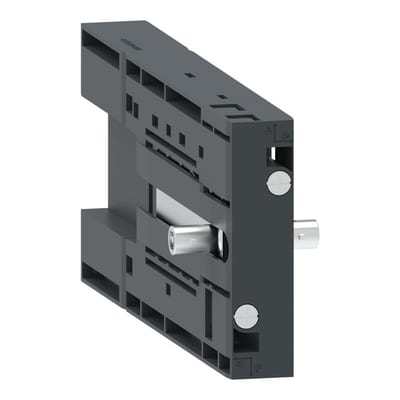

Schneider LA9G Mechanical Interlock - TeSys G
LA9G973
Schneider Electric

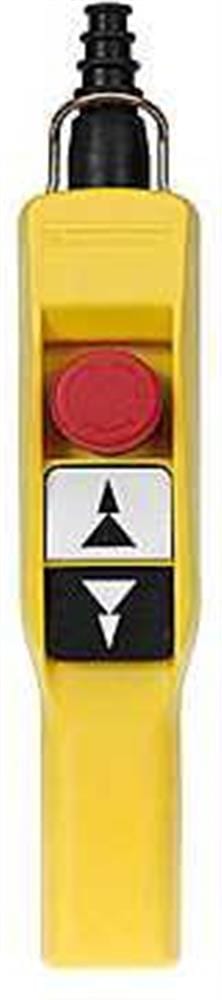

Schneider XACA Hanging pressure 2-Step with emergency stop - Harmony XAC, yellow, 2NO - 2NO - 1NC
