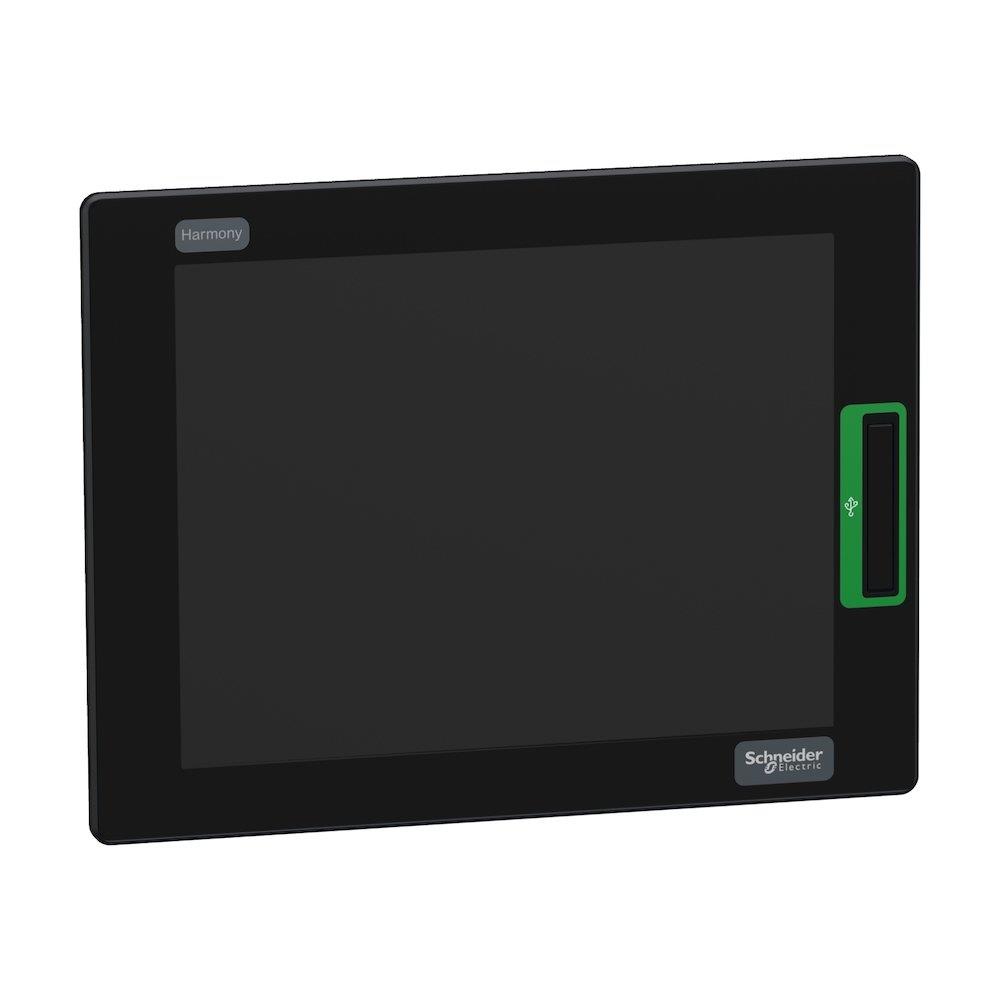

Schneider Harmony P6 Screen - HMIDM6600TM

Schneider Harmony P6 Screen. Industrial PC (Electrical Engineering / Industry and automation). Principal data: type HMIDM6600TM. Supplied under manufacturer part number HMIDM6600TM, EAN 3606481808370, HS code 8529.90, country of origin France.

Product type

Industrial PC

Product group

Industry and automation

Type

HMIDM6600TM

Carbon footprint (EPD)

14.7835 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85299096

HS code

8529.90

Manufacturer part number

HMIDM6600TM

Range of product

Harmony P6

Product or component type

Touch panel screen

Display size

12.1 inch

Aspect ratio

4:3

Display colour

16 million colours

Pixel resolution

1024 x 768

Inrush current

30 A

Cut-out dimensions

301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm

Width

241 mm

Height

30 mm

Product weight

2.4 kg

Pollution degree

2

Product certifications

RCM; KC; UKCA; DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot); ATEX zone 22 dust (DC model, front USB cover must be locked with screw); ATEX zone 2 (DC model, front USB cover must be locked with screw); CULus Class 1 Division 2 (without DIO option); IECEx zone 2 (DC model, front USB cover must be locked with screw); IECEx zone 22 (DC model, front USB cover must be locked with screw)

Operating altitude

2000 m

Ambient air temperature for operation

0…60 °C

Shock resistance

147 m/s² conforming to IEC 61131-2; 147 m/s² 3 shocks in each direction X, Y and Z

Number of Units in Package 1

1

Number of Units in Package 2

28

Warranty (in months)

18

EAN

3606481808370

HS Code

8529.90

• EAN 3606481808370
• MPN HMIDM6600TM
