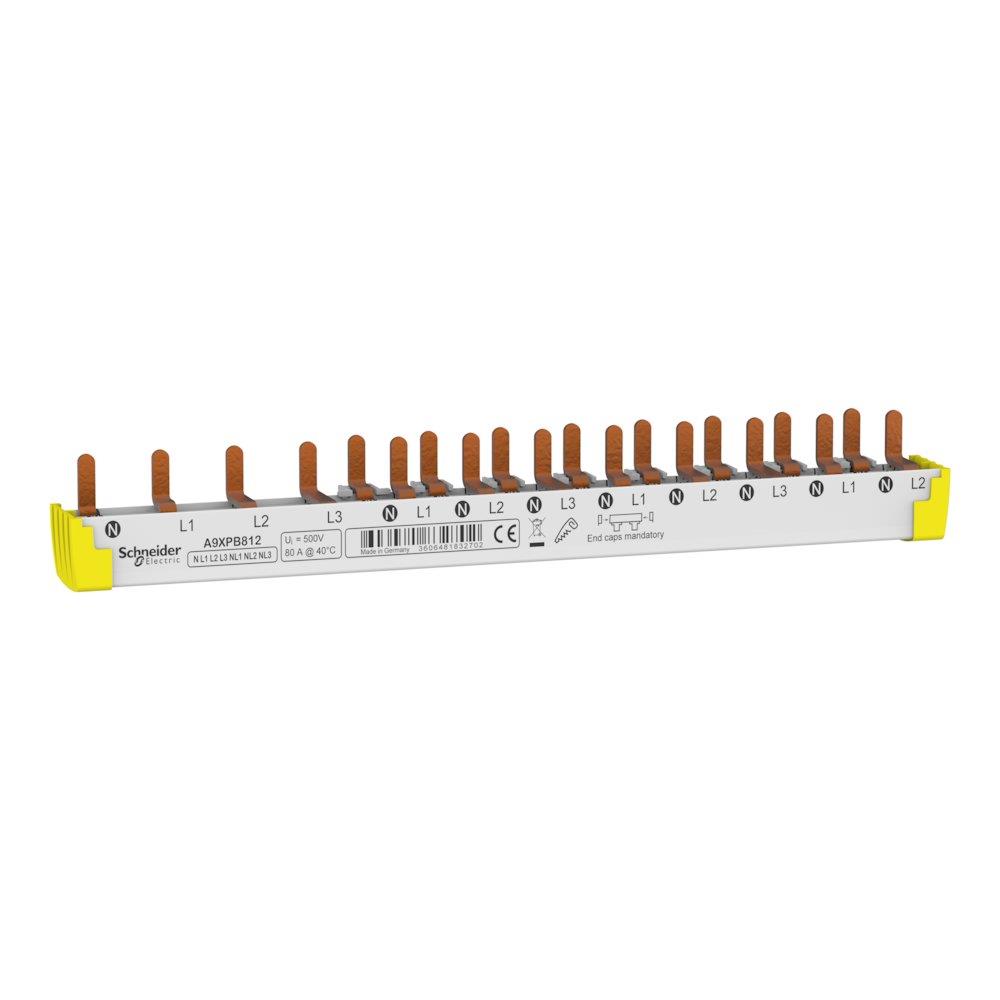

Schneider ACTI9 iLDK RCCB Loop Rail

Schneider Acti9 iLDK RCCB Loop Rail. Various machine installations (Electrical Engineering / Branching material). Supplied under manufacturer part number A9XPB812, EAN 3606481832702, HS code 8536.90, country of origin Germany.

Product type

Various machine installations

Product group

Branching material

Carbon footprint (EPD)

1.1004 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

85369095

HS code

8536.90

Manufacturer part number

A9XPB812

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

12

Standards

EN/IEC 61439-1

Number of ways

Incomer: 1 way N + 3 L; Outgoer: 8 ways N + L

Distribution type

N L1 L2 L3 N L1 N L2 N L3

Poles configuration for 1 way

Incomer: 1 x 4P; Outgoer: 1 x 1P + N; Outgoer: 0.33 x 3P + N; Outgoer: 0.33 x 3P

Connection pitch

Incomer: 18 mm; Outgoer: 9 mm between phase and neutral; Outgoer: 18 mm between phases

Connector type

Tooth

Distance between way

Incomer: 72 mm; Outgoer: 18 mm

Insulation

Insulated

Device presentation

Cuttable

Provided equipment

2 end piece

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC 50/60 Hz Ph/N; 400 V AC 50/60 Hz Ph/Ph

[Ui] rated insulation voltage

440 V AC conforming to IEC 61439-1

Mounting location

Bottom on tunnel type terminals

9 mm pitches

24

Height

30 mm

Width

218 mm

Depth

30 mm

Product weight

160 g

Colour

White (RAL 9003)

Range compatibility

Acti9 iC40; Acti9 iID; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40; Resi9

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

70

Warranty (in months)

18

EAN

3606481832702

HS Code

8536.90
