Schneider ACTI9 IC60 Motor Drive - 3606480097966

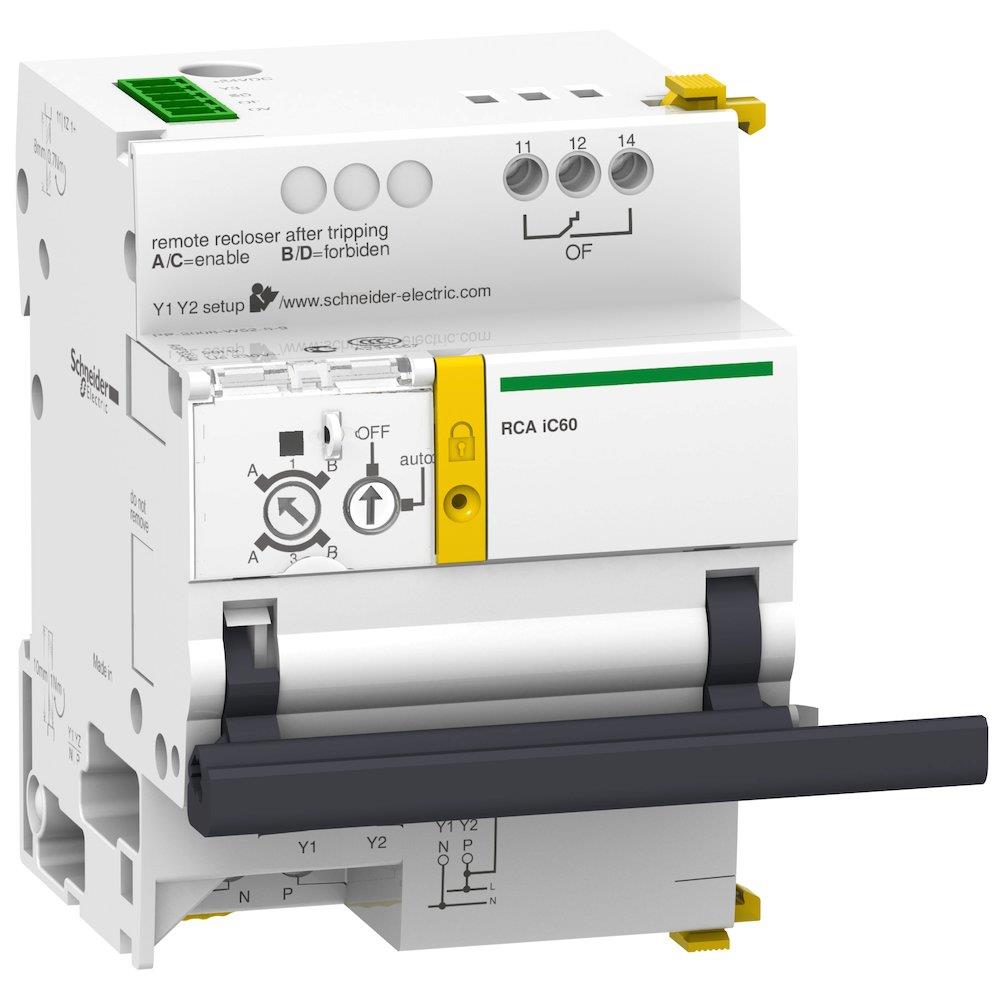

Schneider Acti9 iC60 Motor Drive. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number A9C70122, EAN 3606480097966, HS code 8536.50, country of origin Spain.

Product type

Accessories for fuses

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide, Lead tetroxide, Octrizole

Carbon footprint (EPD)

3.4284 kg CO2e per pcs

Country of origin

Spain

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

A9C70122

range of product

Acti9

Product or component type

Remote control auxiliary

Device short name

RCA iC60

Signal contacts composition

1 OF volt-free contacts; 1 OF Ti24; 1 SD Ti24

Signalling circuit voltage

Volt-free contact 24...230 V 0.01…1 A AC; Ti24 24 V 100 mA DC

Control type

Remote control impulse and maintained 230 V AC 50/60 Hz; Remote control maintained Ti24 24 V DC

Input current

5 mA impulse; 5 mA maintained; 5.5 mA maintained very low voltage

Impulse duration

>= 200 ms control circuit

Response time

< 500 ms

[Us] rated supply voltage

230 V AC 50/60 Hz

Power consumption in W

1 W

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

6 kV

Value of setting

Auto: remote control authorized; Off: remote control inhibited; Mode 1: central control; Mode 3: central control and local override; Position A: reclosing authorized after tripping; Position B: reclosing inhibited after tripping

Local signalling

Flashing green LED: ready to operate; Flashing orange LED: not operational

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

7

Height

93 mm

Width

63 mm

Depth

75.5 mm

Product weight

400 g

Colour

White

Electrical durability

10000 cycles

Mechanical durability

10000 cycles

Provision for padlocking

Padlockable

Wire stripping length

Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection; Ti24 interface: 10 mm for terminal connection

Tightening torque

Auxiliary output: 0.7 N.m; Auxiliary supply: 1 N.m; Auxiliary input: 1 N.m

Physical interface

Ti24

Range compatibility

Acti9 iC60; Acti9 iC65; Acti9 iMDU voltage adaptor; Modicon PLC

Product compatibility

2P iC60; 1P + N iC60; 1P iC60; 1P iC65; 2P iC65; iMDU; PLC

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947

Overvoltage category

II

Tropicalisation

2

Relative humidity

93 % at 40 °C

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

EAN

3606480097966

HS Code

8536.50

• EAN 3606480097966
• MPN A9C70122
