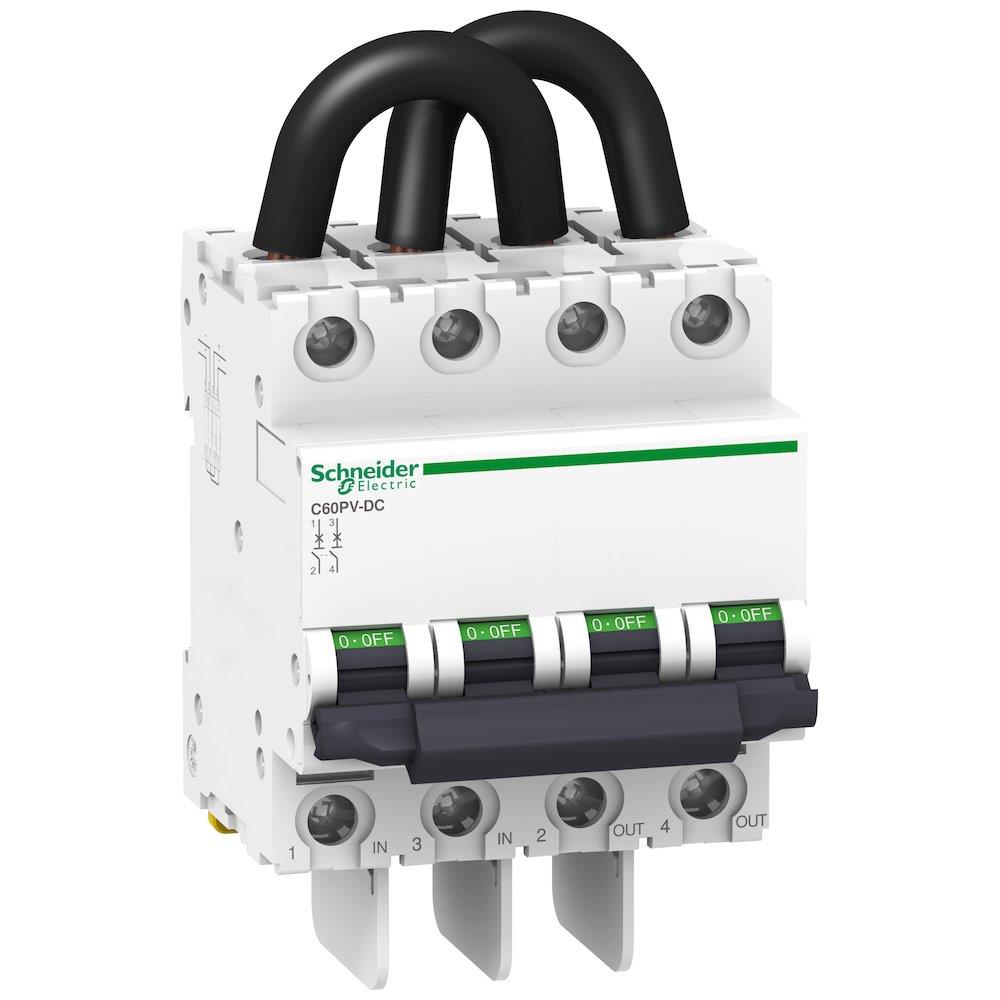

Schneider ACTI9 C60PV-DC Circuit breaker - ACTI9 C60, 15A, 2P, B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 C60PV-DC Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 C60, current rating 15 A, number of poles 2P, tripping characteristic B. Supplied under manufacturer part number A9N61659, EAN 3606480504082, HS code 8536.20, country of origin China.
Technical Specifications
- Product type
- Circuit breakers
- Product group
- Components for panels and boxes
- Series
- Acti9 C60
- Current rating
- 15 A
- Number of poles
- 2P
- Tripping characteristic
- B
- Width
- 72 mm
- Carbon footprint (EPD)
- 0.8500 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- China
- Customs tariff code (EU CN)
- 85362010
- HS code
- 8536.20
- Manufacturer part number
- A9N61659
- GTIN (EAN)
- 3606480504082
- Range of product
- C60
- Product or component type
- Miniature circuit-breaker
- Device short name
- C60PV-DC
- Poles description
- 2P
- Number of protected poles
- 2
- Network type
- DC
- Curve code
- B
- Utilisation category
- Category A conforming to EN/IEC 60947-2
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- [In] rated current
- 15 A
- Voltage Drop
- 600 mV 40 mOhm 9 W 15 A
- [Ue] rated operational voltage
- 800 V DC
- Magnetic tripping limit
- 5.5 x In
- Breaking capacity
- 3 kA Icu at 650 V DC; 1.5 kA Icu at 800 V DC
- [Ics] rated service breaking capacity
- 1.5 kA 100 % - 800 V DC; 3 kA 100 % - 650 V DC
- [Ui] rated insulation voltage
- 1000 V DC
- [Uimp] rated impulse withstand voltage
- 6 kV
- Polarity sensitivity
- No (can protect against bi-directional current)
- Contact position indicator
- Yes
- Control type
- Toggle
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 8
- Height
- 132.7 mm
- Depth
- 77.4 mm
- Product weight
- 0.545 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 1500 cycles L/R = 2 ms
- Locking options description
- Padlocking in OFF position
- Connections - terminals
- Tunnel terminal (downside) 1…25 mm² rigid; Tunnel terminal (downside) 1…16 mm² flexible; Pre-wired cable (upside)
- Wire stripping length
- 14 mm
- Tightening torque
- 2.5 N.m
- Market segment
- Small commercial; Residential
- Compatibility code
- C60PV-DC
- Standards
- EN/IEC 60947-2
- Pollution degree
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606480504082
- MPN A9N61659
