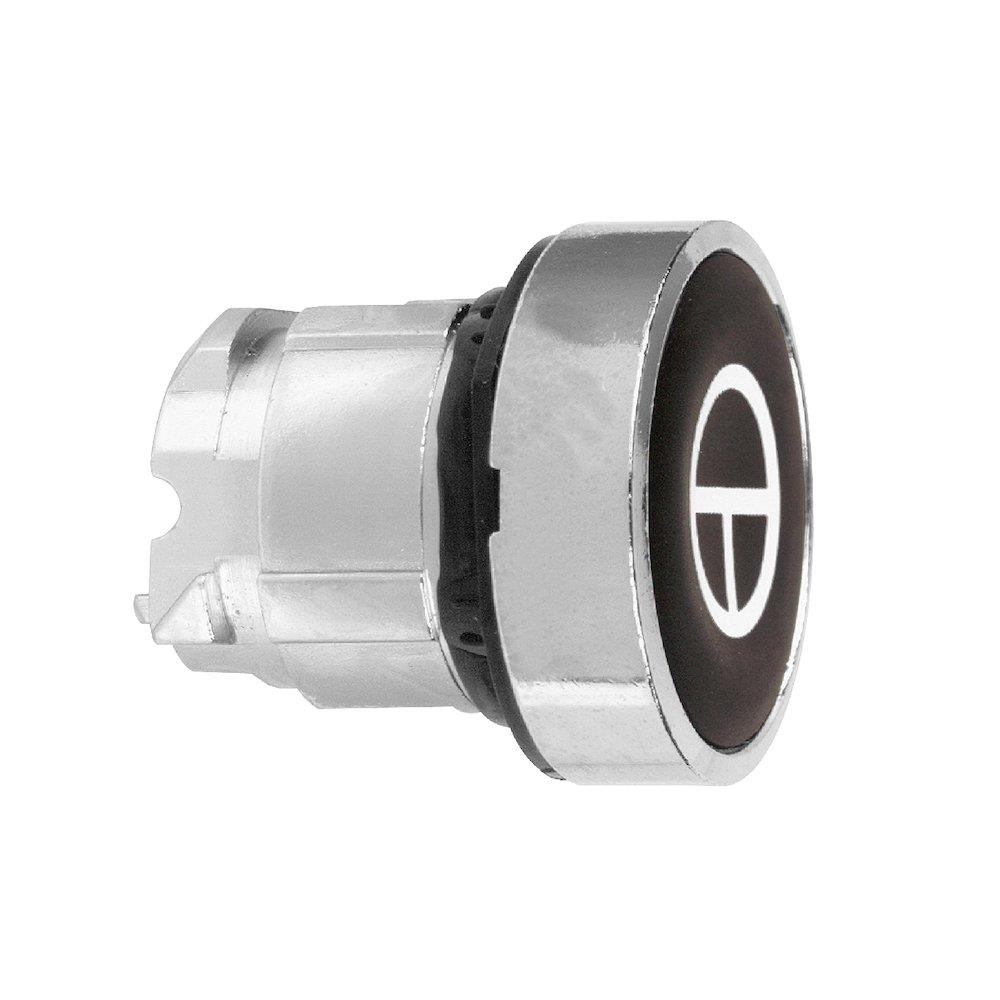

Schneider ZB4 Push Button - Harmony XB4, black
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ZB4 Push Button. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB4, color Black. Supplied under manufacturer part number ZB4BA245, EAN 3389110841947, HS code 8538.90, country of origin France.
Technical Specifications
- Product type
- Push buttons
- Product group
- Push buttons and signal units
- Series
- Harmony XB4
- Color
- Black
- REACH SVHC substance above 0.1%
- Octamethylcyclotetrasiloxane
- Carbon footprint (EPD)
- 0.1751 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85389099
- HS code
- 8538.90
- Manufacturer part number
- ZB4BA245
- Range of product
- Harmony XB4
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black flush, T (white)
- Cap/operator or lens colour
- Black
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 28 mm
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- JIS C8201-5-1; IEC 60947-5-5; UL 508; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; JIS C8201-1
- Product certifications
- BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
- EAN
- 3389110841947
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110841947
- MPN ZB4BA245
More from Schneider Electric
Schneider Electric
Schneider NSX630H Maximum breaker
C63H42D630
Schneider Electric
Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 25A, 1P, D
M9F23125
Schneider Electric
Schneider LADT Barrier - TeSys D 3389110272215
LADT9R1
Schneider Electric
Schneider ACTI9 iCT Contactor on/off - 63A, 2P, 2NO, 24 ACV, 18
A9C21162
Schneider Electric
Schneider RXM Plug-in Relay with LED and test button - Harmony RXM, 230V, 12A, 2CO
3389119403535
Schneider Electric
Schneider NSX630F Maximum breaker - 3606482002630
C63F32M500
Schneider Electric
Schneider ACTI9 REDs Residual current circuit breaker PFI with recloser - ACTI9 REDs, 40A, 4P, A, 300MA
18267
Schneider Electric
Schneider Modicon TM5 Expansion Module - 3595864074832
TM5SE1IC02505
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB4BA245?
- ZB4BA245 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ZB4BA245.
- What is the HS code for ZB4BA245?
- The customs tariff (HS) code for ZB4BA245 is 8538.90.
- Who manufactures ZB4BA245?
- ZB4BA245 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ZB4BA245?
- Yes — the ZB4BA245 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB4BA245?
- The minimum order quantity is 1.
- Is ZB4BA245 available?
- Yes — ZB4BA245 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
