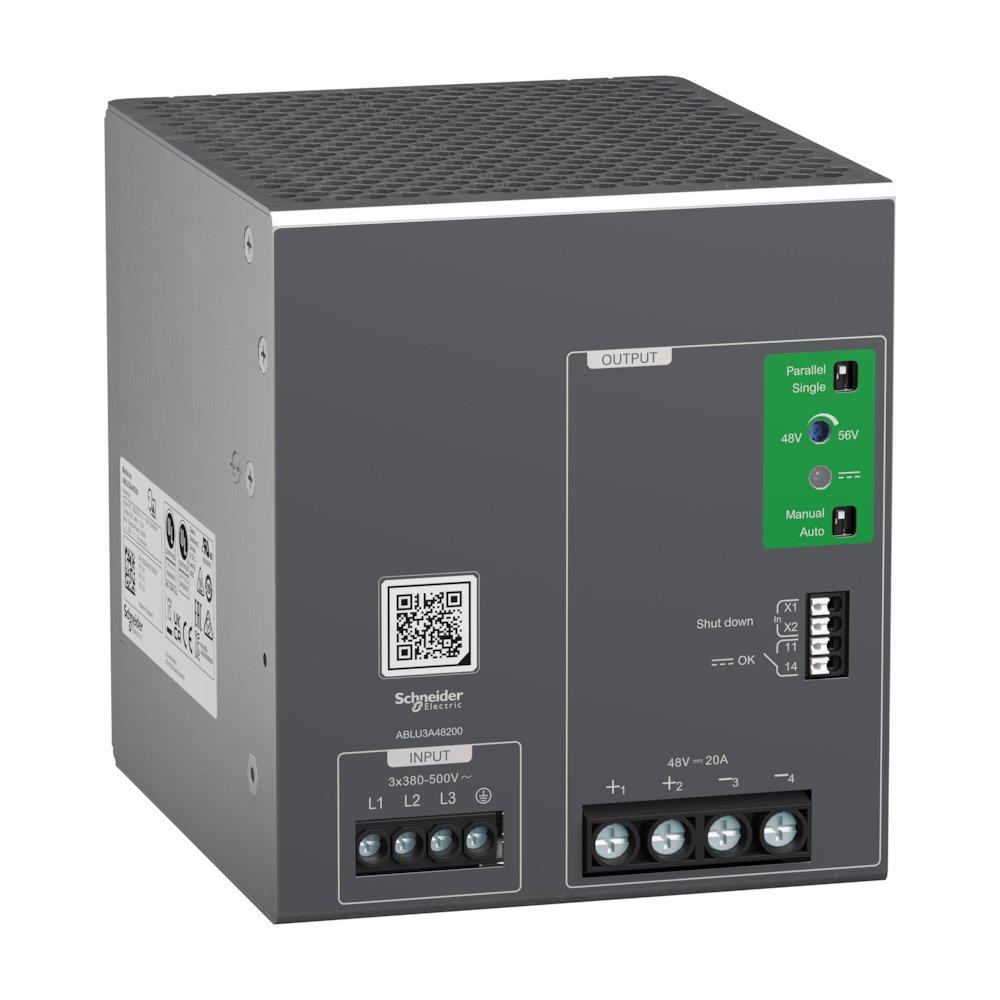

Schneider ABLU Power Supply - Modicon Switchmode ABLU, 48, 20A, 3PCS

Schneider ABLU Power Supply. Transformers and power supplies (Electrical Engineering / Components for panels and boxes). Principal data: series Modicon Switchmode ABLU, primary voltage ac 48, current 20 A, phase 3 pcs. Supplied under manufacturer part number ABLU3A48200, EAN 3606482185289, HS code 8504.40, country of origin Thailand.

Product type

Transformers and power supplies

Product group

Components for panels and boxes

Series

Modicon Switchmode ABLU

Primary voltage AC

48

Current

20 A

Phase

3 pcs

REACH SVHC substance above 0.1%

Lead, Lead-monoxide

Carbon footprint (EPD)

37.2016 kg CO2e per pcs

Country of origin

Thailand

Customs tariff code (EU CN)

85044095

HS code

8504.40

Manufacturer part number

ABLU3A48200

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Variant option

Universal

Enclosure material

Metal

Nominal input voltage

380...500 V AC three phase

Rated power in W

960 W

Output voltage

48 V DC

Power supply output current

20 A

Permissible temporary current boost

1.5 x In (for 5 seconds)

Input voltage limits

320...575 V AC 3 phases

Nominal network frequency

50…60 Hz

Network system compatibility

TN; TT; IT

Maximum leakage current

2 mA 500 V AC

Input protection type

Integrated fuse (not interchangeable) 3.15 A; External protection (recommended)

Inrush current

35 A at 380 V; 35 A at 500 V

Power factor

0.90 at 380 V AC; 0.90 at 500 V AC

Efficiency

95 % at 380 V AC; 95 % at 500 V AC

Output voltage adjustment

48…56 V

Power dissipation in W

49 W

Current consumption

< 1.9 A 380 V AC; < 1.7 A 500 V AC

Turn-on time

< 2 s

Holding time

> 20 ms 380 V AC; > 20 ms 500 V AC

Startup with capacitive loads

200000 µF

Residual ripple

< 200 mV

Meantime between failure [MTBF]

912400 h at 25 °C, full load conforming to SR 332; 382500 h at 55 °C, 80 % load conforming to SR 332

Output protection type

Against overload and short-circuits, protection technology: manual or automatic reset by switch; Against over temperature, protection technology: automatic reset; Against overvoltage, protection technology: manual reset

Connections - terminals

Screw connection: 4 x 10 mm², (12 AWG...8 AWG) with wire end ferrule for output; Screw connection: 4...16 mm², (12 AWG...6 AWG) without wire end ferrule for output; Screw connection: 0.75…6 mm², (18 AWG...10 AWG) without wire end ferrule for input; Screw connection: 0.75...4 mm², (18 AWG...12 AWG) with wire end ferrule for input; Cage clamp: 0.2...1.5 mm², (22 AWG...16 AWG) without wire end ferrule for diagnostic relay; Cage clamp: 0.2...1.5 mm², (22 AWG...16 AWG) without wire end ferrule for shut down input; Cage clamp: 0.2...0.75 mm², (22 AWG...18 AWG) with wire end ferrule for diagnostic relay; Cage clamp: 0.2...0.75 mm², (22 AWG...18 AWG) with wire end ferrule for shut down input

Line and load regulation

< 0.17 % at 100 % load in line at 25 °C; < 0.6 % +/- 0.5 % at 100 % load at 25 °C for single mode; 4 % at 150 % load at 25 °C for parallel mode

Status LED

1 LED (green and red) product status

Depth

128.7 mm

Height

124 mm

Width

110 mm

Product weight

2.29 kg

Output coupling

Single/parallel by switch

Marking

CE; UKCA

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; Double-profile DIN rail

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

4000 V AC with input to output; 2000 V AC with input to ground; 1500 V AC with output to ground; 4000 V AC with input to diagnostic relay; 500 V AC with output to diagnostic relay; 1500 V AC with diagnostic relay to ground; 4000 V AC with shutdown input to input; 1500 V AC with shutdown input to ground; with shutdown input not isolated from output

Shutdown input

Non isolated input, dry contact 0.3 mA 4 V

Diagnostic relay

Electromechanical relay 1000.0 mA 30 V

Service life

10 year(s) 40 °C 80 % load

Overvoltage category

III; II

Standards

IEC 62368-1; EN/IEC 61204-3; IEC 61000-6-1; IEC 61000-6-2; IEC 61000-6-3; IEC 61000-6-4; IEC 61000-3-2; EN 61000-3-3; UL 62368-1; CSA C22.2 No 62368-1; CSA C22.2 No 107.1

Product certifications

CE; CUL listed; CUL recognized; RCM; CB Scheme; EAC; KC; UKCA; CURus

Operating altitude

< 5000 m overvoltage category III; overvoltage category II

Shock resistance

150 m/s² for 11 ms

IP degree of protection

IP20

Ambient air temperature for operation

-25…55 °C without current derating mounting position A < 2000 m; 55…70 °C with current derating of 3.3 % per °C mounting position A < 2000 m

Electrical shock protection class

Class I

Pollution degree

2

Vibration resistance

3.5 mm (f= 3…11.9 Hz) conforming to IEC 60068-2-6; 20 m/s² (f= 11.9…150 Hz) conforming to IEC 60068-2-6

Electromagnetic immunity

Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3; Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3; Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1

Electromagnetic emission

Conducted emissions conforming to IEC 61000-6-3; Radiated emissions conforming to IEC 61000-6-4

Number of Units in Package 1

1

Number of Units in Package 2

2

Number of Units in Package 3

48

Warranty (in months)

18

EAN

3606482185289

HS Code

8504.40

• EAN 3606482185289
• MPN ABLU3A48200
