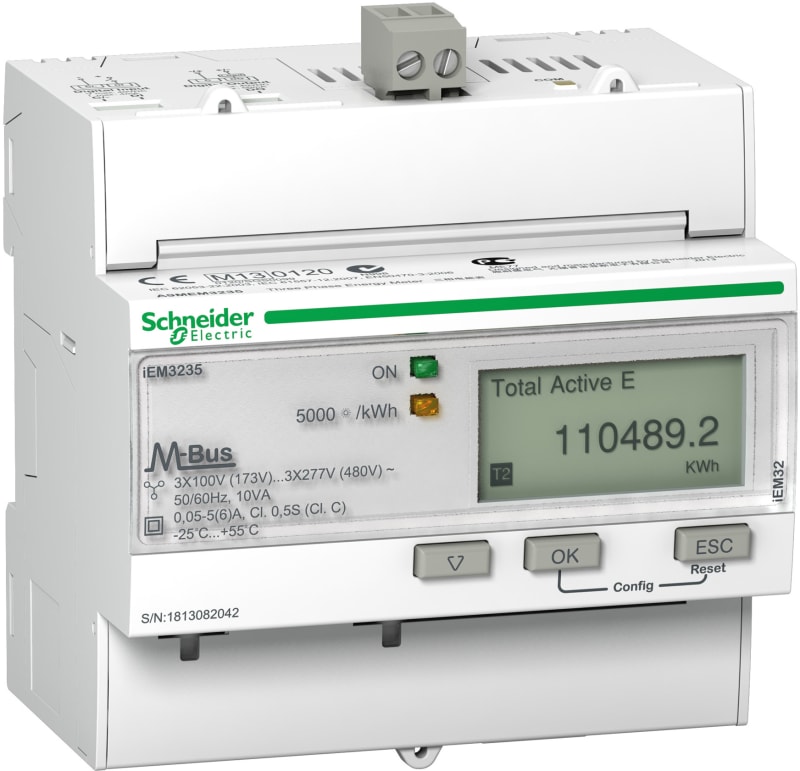

Schneider Electric A9MEM3235 IEM3235 energy meter - CT - M-bus - 1 digital I - 1 digital O - multi-tariff - MID

Schneider Electric A9MEM3235 IEM3235 energy meter - CT - M-bus - 1 digital I - 1 digital O - multi-tariff - MID is listed under Sensors & Instrumentation / Energy Meters. Sales unit: pcs; Package quantity: 30 pcs; Range: Acti9; range of product: Acti9 iEM3000; Product or component type: Energy meter; Device short name: iEM3235.

Manufacturer part number (MPN)

A9MEM3235

EAN / GTIN

3606480616501

Sales unit

pcs

Package quantity

30 pcs

Range

Acti9

range of product

Acti9 iEM3000

Product or component type

Energy meter

Device short name

iEM3235

Market segment

Buildings small building cost management: billing: main incomer; Buildings small building cost management: billing: sub feeder; Buildings small building cost management: billing: panelboard; Buildings medium building cost management: billing: main incomer; Buildings medium building cost management: billing: sub feeder; Buildings medium building cost management: billing: panelboard; Buildings large building cost management: billing: main incomer; Buildings large building cost management: billing: sub feeder; Buildings large building cost management: billing: panelboard; Buildings multi-site cost management: billing: main incomer; Buildings multi-site cost management: billing: sub feeder; Buildings multi-site cost management: billing: panelboard; Data center cost management: billing; Healthcare cost management: billing; Industry cost management: billing; Buildings small building cost management: cost allocation: main incomer; Buildings small building cost management: cost allocation: sub feeder; Buildings small building cost management: cost allocation: panelboard; Buildings medium building cost management: cost allocation: main incomer; Buildings medium building cost management: cost allocation: sub feeder; Buildings medium building cost management: cost allocation: panelboard; Buildings large building cost management: cost allocation: main incomer; Buildings large building cost management: cost allocation: sub feeder; Buildings large building cost management: cost allocation: panelboard; Buildings multi-site cost management: cost allocation: main incomer; Buildings multi-site cost management: cost allocation: sub feeder; Buildings multi-site cost management: cost allocation: panelboard; Data center cost management: cost allocation; Healthcare cost management: cost allocation; Industry cost management: cost allocation

Poles description

3P; 1P + N; 3P + N

Type of measurement

Active and reactive energy; Active and reactive power; Current; Voltage

Metering type

Active, reactive, apparent energy (signed, four quadrant)

Device application

Sub billing; Partial meter; Multi-tariff

Accuracy class

Class 0.5S active energy conforming to IEC 62053-22; Class 0.5S active energy conforming to IEC 61557-12; Class C active energy conforming to EN 50470-3

input type

Current transformer 1 A or 5 A

[In] rated current

5 A; 1 A

Rated voltage

100…277 V; 173…480 V

Network frequency

60 Hz; 50 Hz

Technology type

Electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

1…32767000 mA

Maximum value measured

99999999 MWh

tariff input

Tariff (4)

Communication port protocol

M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds, insulation 3750 V

Communication port support

Screw terminal block: M-Bus

Typical current consumption

Communication M-bus: 2.3 mA at state 1

Local signalling

Green indicator light: power ON; Yellow flashing LED: accuracy checking; alarm: overload

Number of inputs

1 digital 0...5 V/11...40 V 24 V DC

Number of outputs

1 digital (static)

Output voltage

5...40 V DC@50 mA

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Current circuit: screw terminals 6 mm² cable(s) ; Voltage circuit: screw terminals 2.5 mm² cable(s)

Overvoltage category

III

Standards

BS EN 61557-12:2021; IEC 61557-12:2021; EN 61557-12:2021; BS EN 61326-1; IEC 61326-1; EN 61326-1; BS EN 62052-11:2020; IEC 62052-11:2020; EN 62052-11:2020; BS EN 62053-21; IEC 62053-21; EN 62053-21; BS EN 62052-22; IEC 62053-22:2020; EN 62052-22; BS EN 62052-23; IEC 62053-23:2020; EN 62052-23; BS EN 62052-31:2015; IEC 62052-31:2015; EN 62052-31:2015; BS EN 61010-1:2010; EN 61010-1:2010; IEC 61010-1:2010; UL 61010-1:2010; BS EN 61010-2-30; IEC 61010-2-30; EN 61010-2-30; UL 61010-2-30; BS EN 50470-3; EN 50470-3; BS EN 50470-1; EN 50470-1; ANSI C12.20

Product certifications

CE conforming to IEC 61010-1 (safety); CE conforming to EN 61557-12 (power monitor); CE conforming to EN/IEC 61326-1 (EMC); UKCA conforming to BS EN 61010-1 (safety); UKCA conforming to BS EN 61557-12 (power monitor); UKCA conforming to BS EN 61326-1 (EMC); CULus conforming to UL 61010-1 (safety); CULus conforming to EN 61010-1 (safety); EAC conforming to EN 50470-3 (sub-meter); RCM conforming to EN 62052 (sub-meter); KZ conforming to EN 50470-3 (sub-meter); METAS conforming to EN 50470-1 (sub-meter); MID conforming to EN 50470-3 (sub-meter); MID conforming to EN 50470-1 (sub-meter); NMI conforming to NMI M 6-1

Compatibility code

IEM3235

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 body: conforming to IEC 60529

Pollution degree

2

Relative humidity

5…95 % at 50 °C

Ambient air temperature for operation

-25…70 °C - IEC

Ambient air temperature for storage

-40…85 °C

Operating altitude

< 3000 m

Colour

White

9 mm pitches

10

Width

90 mm

Height

95 mm

Depth

69 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.800 cm

Package 1 Width

9.400 cm

Package 1 Length

10.500 cm

Package 1 Weight

358.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

30

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

11.317 kg

Unit Type of Package 3

P12

Number of Units in Package 3

480

Package 3 Height

80.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

198.096 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Measurement transformer

Suitable for

Purchase/supply

Type of indication

Digital

Frequency

50–60 Hz

Max. current (Imax)

6 A

Width in number of modular spacings

5

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

M-bus (wired)

Energy type

Effective power and reactive power

Tariff type

Multi-tariff

Tariff control

Internal/external

Escapement mechanism

No

Calibrated

No

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

D0

Pulse rate

0–500 Imp/kWh (kvarh)

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

100–277 V

Nominal voltage (Un) L-L

173–480 V

Nominal current (In)

5 A

HS Code

9028.30
