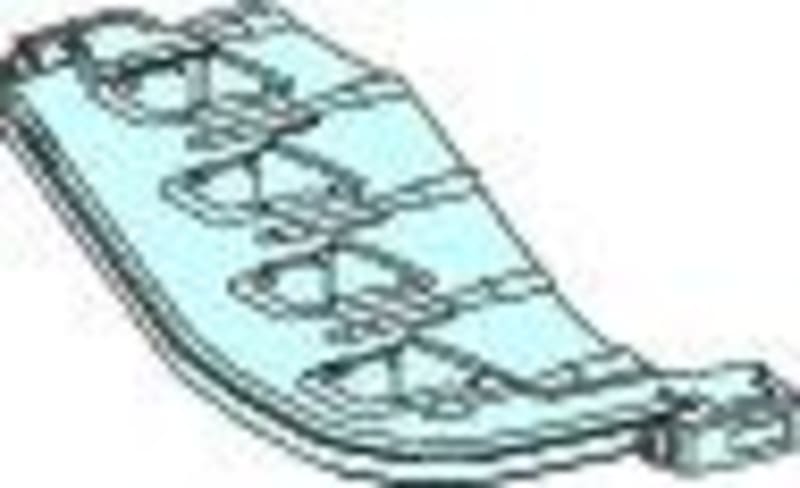

Shield clamp Linergy LGY Side-mounted
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04651 — LINERGY LGY LATERAL BUSBAR SUPPORT.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04651
- EAN / GTIN
- 3606481867063
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar support
- Product name
- Linergy LGY
- Range compatibility
- Linergy Linergy LGY busbar; PrismaSeT PrismaSeT P enclosure
- Provided equipment
- Supplied with 8.8 class mounting hardware
- Cubicle-device connection
- lateral Linergy busbar
- installation description
- Cubicle - width 150 mm
- Product weight
- 1.248 kg
- Quantity per set
- Set of 1
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 18.200 cm
- Package 1 Length
- 38.000 cm
- Package 1 Weight
- 1.500 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 4
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.334 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 192
- Package 3 Height
- 99.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 303.152 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481867063
- SAP 1200547007
- Code 82879626
