Schneider Electric Unica System+ Large Metal Floor Box
Pricing
Request a quote
We reply within 24 hours
Product Description

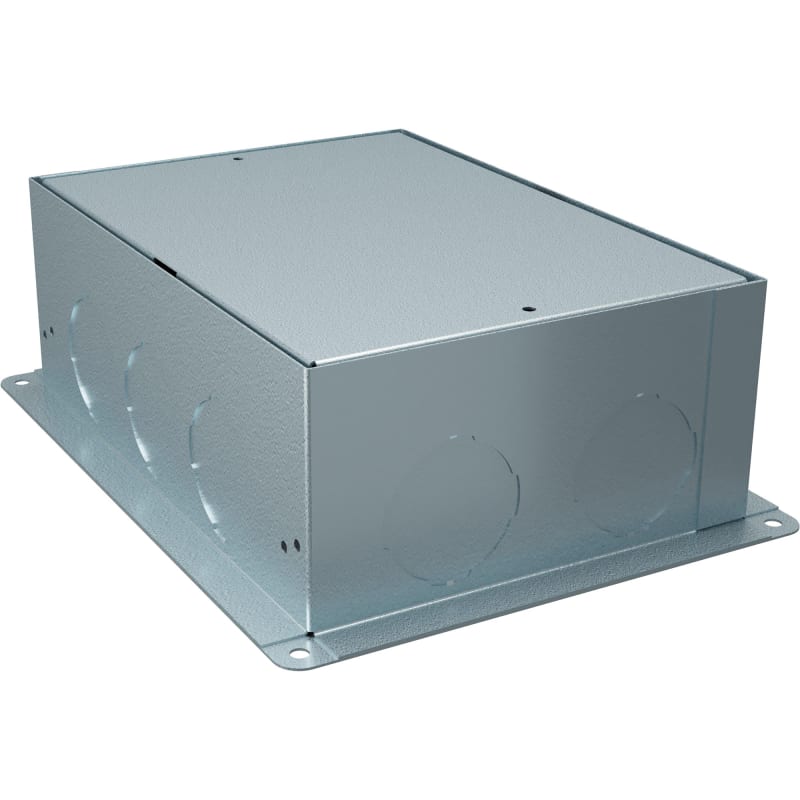

The Schneider Electric INS52002 is a large metal floor box from the Unica System+ range, cast into concrete floors of at least 100 mm depth. The 304 mm nominal enclosure has a levelling range of 100–125 mm, a rectangular cover and steel side walls, suited to raised or in-slab service outlets. Typical applications include office floors and public spaces where power and data outlets sit flush with the finished surface.
Technical Specifications
- Manufacturer part number (MPN)
- INS52002
- EAN / GTIN
- 3606481457370
- Sales unit
- pcs
- Nominal dimension
- 304 mm
- Bottom plate
- Yes
- Suitable for placing of sealing
- No
- Mounting cover insertion
- No
- Levelling range
- 100–125 mm
- Duct height
- 20–50 mm
- Suitable for subfloor duct countersunk (closed)
- No
- Suitable for subfloor duct overhead closed
- Yes
- Decoupling possibility cover from base unit
- Yes
- Duct width
- 20–50 mm
- Min. height finishing layer
- 0 mm
- Material side wall
- Steel
- Cover model
- Rectangular
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481457370
- SAP 1200478148
- Code 82564113
Product Documentation
More from Schneider Electric
Schneider Electric
Plinth EBI-12 Intellia
FFS06720012
Schneider Electric
Schneider Electric XACA9411 round head for pushbutton - spring return - XAC-A - white - booted
Schneider Electric

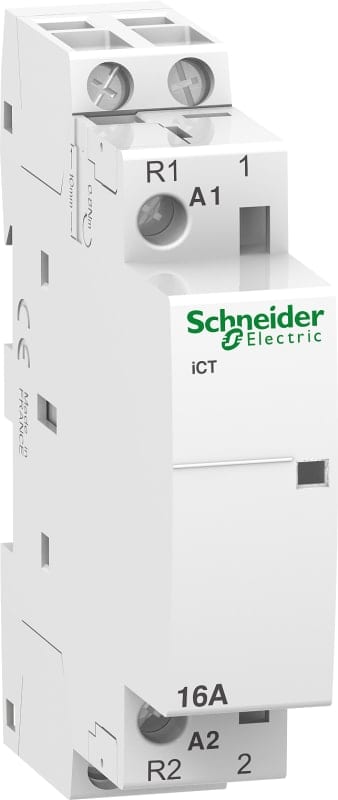

Schneider Electric iCT 16A 1NO 1NC 230...240V 50Hz contactor A9C22715
