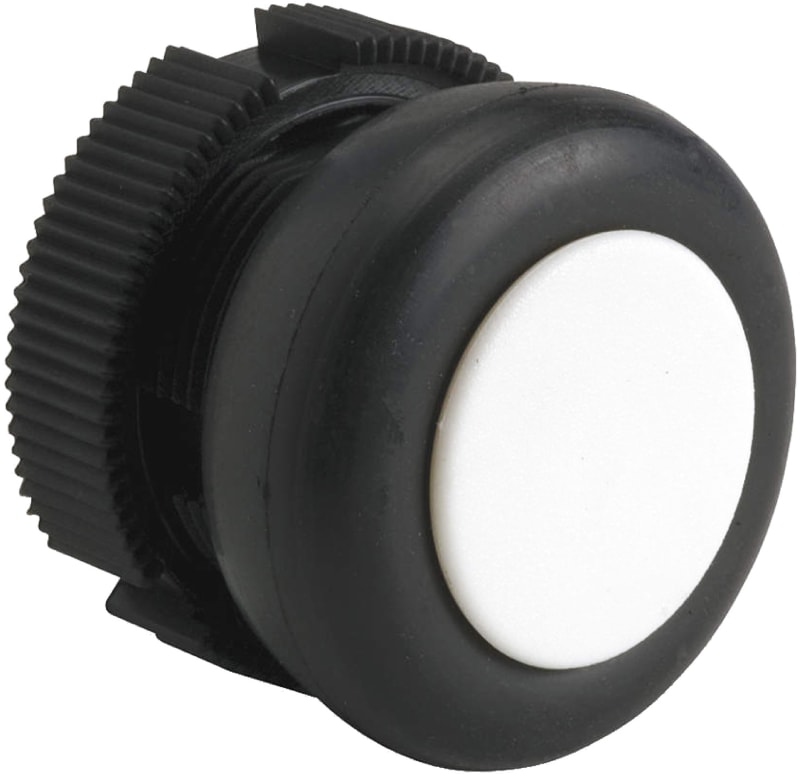

Schneider Electric XACA9411 round head for pushbutton - spring return - XAC-A - white - booted
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric XACA9411 round head for pushbutton - spring return - XAC-A - white - booted is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony XAC; Product or component type: Head for push-button; Component name: XACA; Marking: Unmarked.
Technical Specifications
- Manufacturer part number (MPN)
- XACA9411
- EAN / GTIN
- 3389110645132
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XAC
- Product or component type
- Head for push-button
- Component name
- XACA
- Marking
- Unmarked
- Operator additional information
- Booted
- Cap/operator or lens colour
- White
- Product compatibility
- XACA..
- Mounting location
- Front of enclosure
- Sale per indivisible quantity
- 10
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32; UL 508
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Product weight
- 0.01 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 11.000 cm
- Package 1 Length
- 5.000 cm
- Package 1 Weight
- 9.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 3.000 cm
- Package 2 Width
- 11.000 cm
- Package 2 Length
- 10.000 cm
- Package 2 Weight
- 95.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 700
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 7.110 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- White
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110645132
- SAP 1000061209
- Code 8547912
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iCT 16A 1NO 1NC 230...240V 50Hz contactor A9C22715
Schneider Electric
Schneider Electric variable speed drive, ATV320, 0.55 kW, 200…240 V, 1 phase, book ATV320U06M2B
Schneider Electric
Schneider Electric A9F07610 ACTI9 IC60H Miniature Circuit Breaker 1P+N 10 A, Curve C
Schneider Electric
Linergy Screws/bolts/NUTS-20 pcs 39mm
LVS04767
Schneider Electric
Screw Clip TCS-C5M 14-18 White
2191512
Schneider Electric
Interpact INS250 160A 3P
31104
Schneider Electric
Ultra MINI 2540 Channel PVC White 2M
ETK40325
Schneider Electric
Bordenh S, currentoutlet + USB-hv
INS44050
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XACA9411?
- XACA9411 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XACA9411.
- What is the HS code for XACA9411?
- The customs tariff (HS) code for XACA9411 is 8538.90.
- Who manufactures XACA9411?
- XACA9411 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XACA9411?
- Yes — the XACA9411 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XACA9411?
- The minimum order quantity is 1.
- Is XACA9411 available?
- Yes — XACA9411 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
