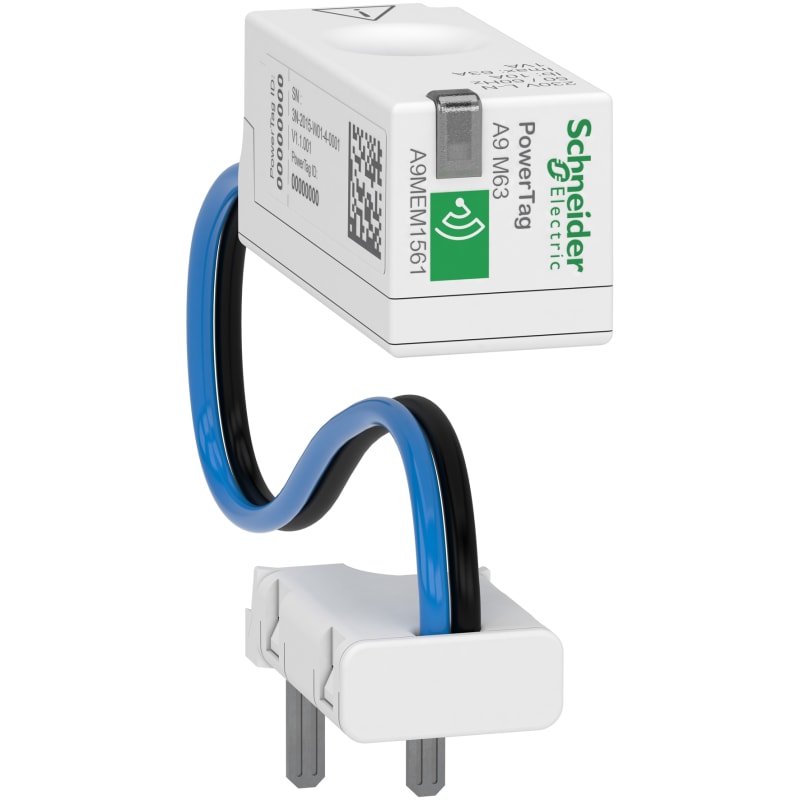

Schneider Electric energy sensor, PowerTag phaseNeutral 63A 1P+N top position A9MEM1561
Part numberA9MEM1561EAN / GTIN3606481380401HS code8536.49
Sensors & Instrumentation
Energy Meters
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9MEM1561 PowerTag iC40 1PN 63A above.
Technical Specifications
- Manufacturer part number (MPN)
- A9MEM1561
- EAN / GTIN
- 3606481380401
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- PowerLogic
- Product name
- PowerTag A9 P63
- Product or component type
- Energy sensor
- Poles
- 1P + N
- Maximum current [Imax]
- 63 A
- [Ib] Basic current
- 10 A
- Starting current
- 40 mA
- Saturation current
- 130 A
- Product specific application
- Overload alarm; Cost allocation; Load monitoring; Circuit monitoring; Energy management
- Concentrator compatibility
- EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD
- Application
- Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm
- Range compatibility
- DuoLine DuoLine ID'clic XP; Acti9 Acti9 DT40 Vigi; Acti9 Acti9 DT40; Acti9 Acti9 iC40; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iDPN (China version); Easy9 Easy9 RCBO; Acti9 Acti9 iCV40; Easy9 Easy9 MCB; DuoLine DuoLine D'clic Vigi; Multi9 Multi9 N40; Acti9 Acti9 IDc; Acti9 Acti9 C40; Acti9 Acti9 iDPN Vigi; Acti9 Acti9 ITG40; Acti9 Acti9 iDPN; DuoLine DuoLine D'clic XP; Acti9 Acti9 C40 Vigi; Acti9 Acti9 ID C40; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40
- Type of measurement
- Voltage; Active energy; Current; Active power; Power factor
- Accuracy class
- Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12
- Mounting location
- Top
- Mounting support
- On circuit breaker
- Connection pitch
- 9 mm Ph/N
- Product destination
- Switchboard
- Event management
- Voltage loss with measured current at voltage loss
- Transmission support medium
- Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
- Emission power
- 10 mW
- Form factor
- PhaseNeutral
- Mounting mode
- By screws (terminals)
- Electrical connection (voltage sensing & power supply)
- Connector tooth
- Cable cross section
- 1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²
- supply voltage
- 200...240 V AC, +/- 20 %
- Network frequency
- 50 Hz; 60 Hz
- Maximum power consumption
- 1 VA
- Standards
- IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1
- Product certifications
- IEC; DNV Marine
- Height
- Sensor element: 20 mm; Base unit: 8 mm
- Width
- Sensor element: 18 mm; Base unit: 18 mm
- Depth
- Sensor element: 44.5 mm; Base unit: 28 mm
- Product weight
- 18 g
- Colour
- White (RAL 9003)
- Compatibility code
- PowerTag A9 P63
- Quality labels
- CE
- Directives
- 2014/53/EU - radio equipment directive
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Overvoltage category
- III conforming to IEC 61010-1
- Measurement category
- Category III conforming to IEC 61010-2-030
- IP degree of protection
- IP20 conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Relative humidity
- 0…95 % at 45 °C conforming to IEC 60721-3-3
- Vibration resistance
- 3M4 conforming to IEC 60721-3-3
- Electromagnetic compatibility
- Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311
- environmental characteristics
- Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 48
- Warranty (in months)
- 18
- Mounting method
- Plug-in technique
- Model
- Direct measurement
- Suitable for
- Purchase
- Type of indication
- None
- Max. current (Imax)
- 63 A
- Width in number of modular spacings
- 1
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Energy type
- Effective power and reactive power
- Tariff type
- One-tariff
- Escapement mechanism
- No
- Calibrated
- Yes
- Approval
- Domestic
- Pulse output
- None
- Pole type
- Single phase
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- No
- Nominal current (In)
- 63 A
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3606481380401
- SAP 1200285215
- Code 82253528
Product Documentation
Document preview: Schneider Electric A9MEM1561 — OEM Product Page
More from Schneider Electric
Schneider Electric

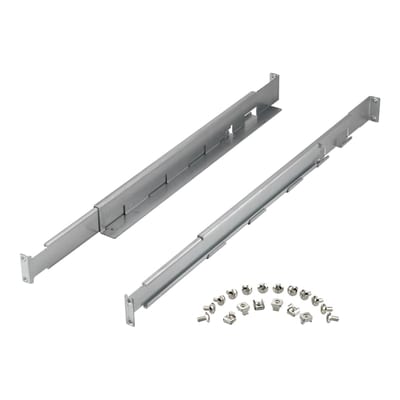

Schneider Electric APC Easy UPS On-Line SRV 19" Rail Kit, 780mm depth SRVRK1
Schneider Electric

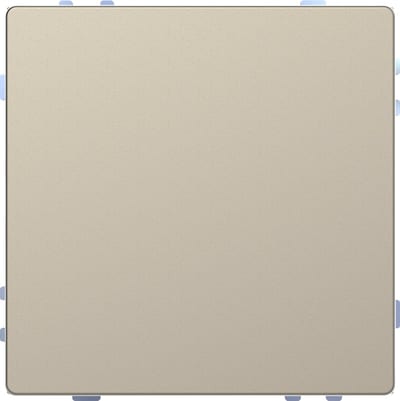

Schneider Electric Push-button Pro T, Merten System Design, sahara, Temperature sensor, Touchless, Supply KNX 20 mA MTN6185-6033
