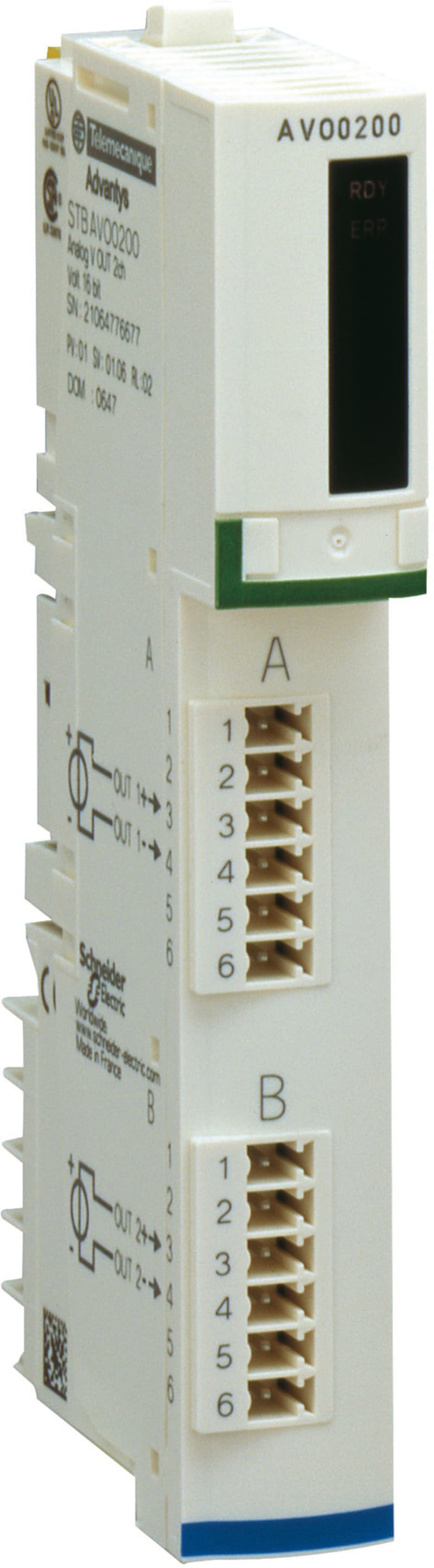

Schneider Electric standard analog output kit STB - +/- 10 V - 2 O - 15 bits + sign STBAVO0200K
Part numberSTBAVO0200KEAN / GTIN3595863948950HS code8538.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBAVO0200K STB kit 2 out analog, voltage, 16bit.
Technical Specifications
- Manufacturer part number (MPN)
- STBAVO0200K
- EAN / GTIN
- 3595863948950
- Sales unit
- pcs
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Standard analog output kit
- Kit composition
- STBAVO0200 module; STBXTS2100, 6-terminal spring clamp connector; STBXBA2000 base; STBXTS1100, 6-terminal screw type connector
- Product compatibility
- Mounting base STBXBA2000; Power distribution module STBPDT3100/3105
- Analogue input number
- 0
- Analogue output number
- 2
- Analogue output current
- 0.0015 A
- Update time
- 8 ms
- Analogue output type
- Voltage: +/- 10 V; Voltage: +/- 5 V; Voltage: 0...10 V; Voltage: 0...5 V; Voltage: 1...5 V
- Height
- 18.4 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Product weight
- 0.116 kg
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 13.500 cm
- Package 1 Weight
- 146.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 28
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.619 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 10 V
- Voltage type (supply voltage)
- DC
- Input, current
- Yes
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- Yes
- Resolution of the analogue inputs
- 15 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Resolution of the analogue outputs
- 15 Bit
- Number of analogue outputs
- 2
- Analogue inputs configurable
- Yes
- Analogue outputs configurable
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863948950
- SAP 1000015715
- Code 8131887
Product Documentation
Document preview: Schneider Electric STBAVO0200K — OEM Product Page
More from Schneider Electric
Schneider Electric

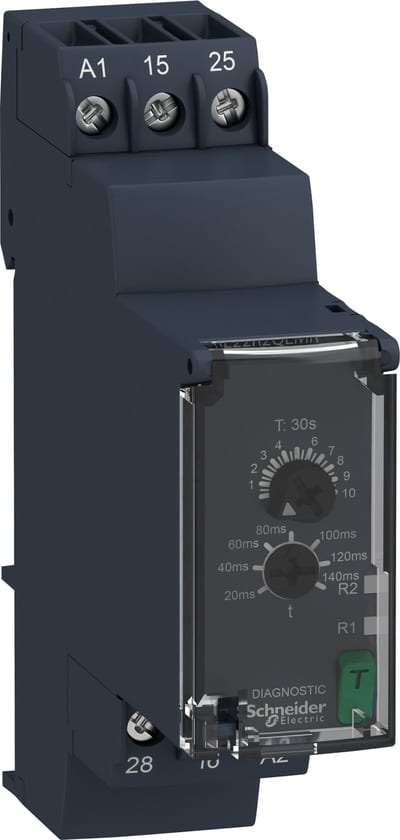

Schneider Electric Star-Delta Timing Relay - 0.3S…30S - 24…240V AC/DC - 2C/O RE22R2QEMR
