ATV630 IP00 90kW 690V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description

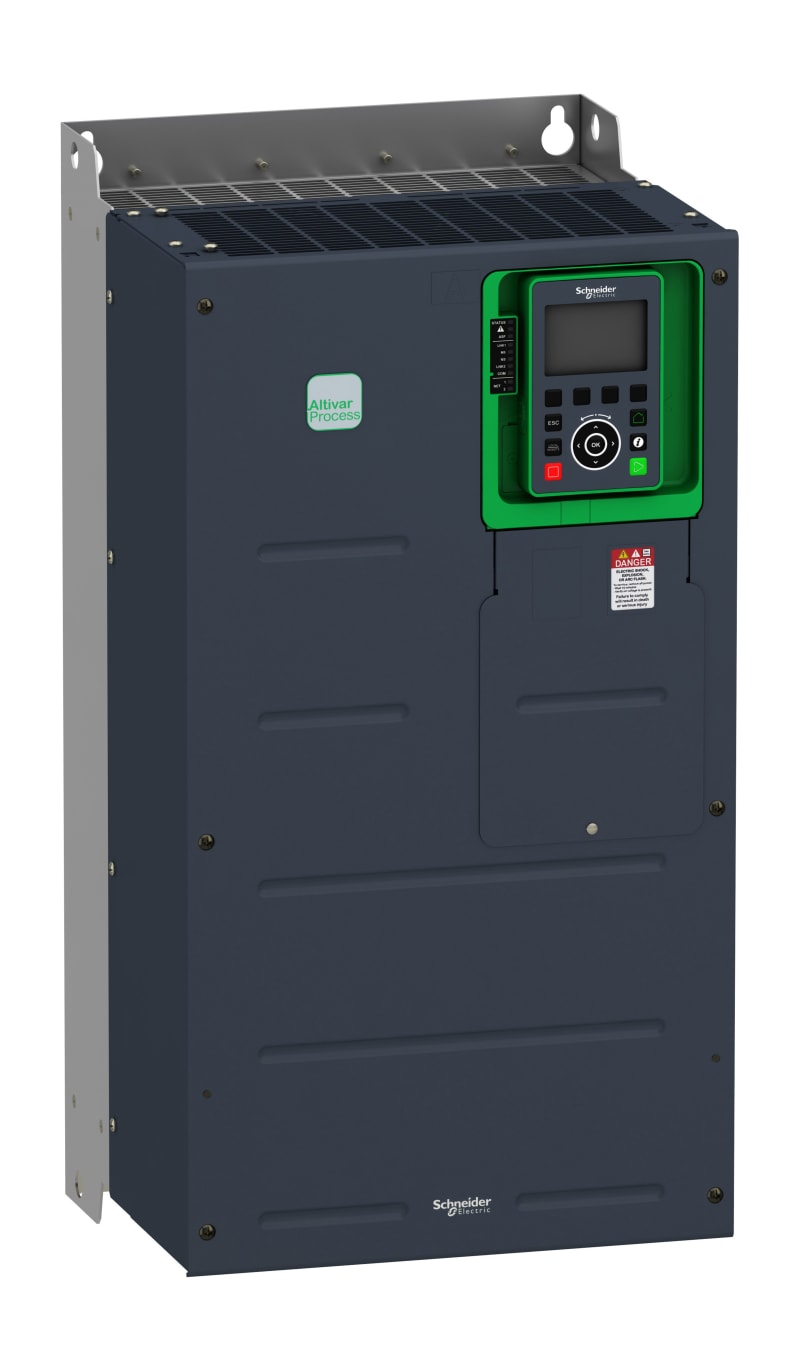

Schneider Electric ATV630D90Y6428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 90kW 690V marine certificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV630D90Y6428
- EAN / GTIN
- 3606481714893
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 690 V
- IP rating
- IP00
- Power
- 90 kW
- Width
- 331 mm
- Height
- 630 mm
- Depth
- 297 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces RS-485
- 2
- Degree of protection (IP)
- IP21
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 2
- Number of phases input
- 3
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 90 kW
- Max. output at quadratic load at rated output voltage
- 90 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 690 V
- Nominal output current I2N
- 108 A
- Country of origin
- India
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481714893
- SAP 1200722517
- Code 83865962
Product Documentation
More from Schneider Electric
Schneider Electric
PLA127 DLPMod insert 7035 198M
NSYDLP198PG
Schneider Electric
Schneider Electric PanelSet SF partition panel - galvanised steel - 1800X500 mm NSYPPS185
Schneider Electric
16 O, 8 PR.GR, Relay 10mm, SIKR
ABE7P16T215
Schneider Electric
Spacer M6 height 50 (NSYEX506)
Schneider Electric

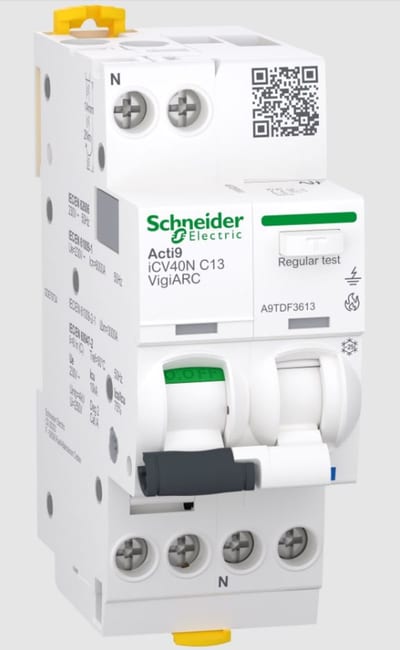

ICV40N Rcbo+afd 1PN 13A C
A9TDF3613
Schneider Electric

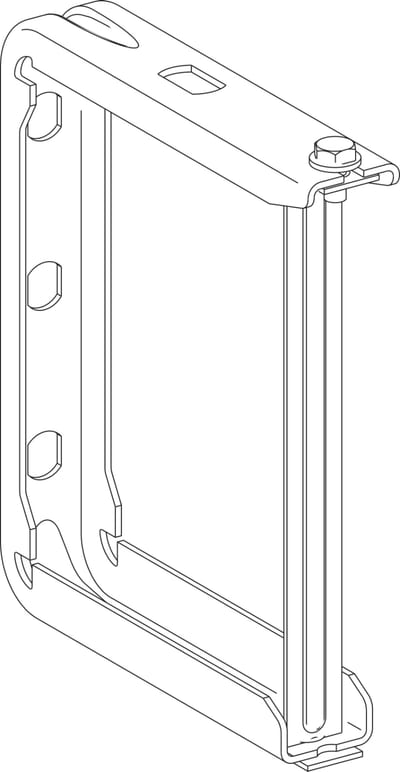

Schneider Electric Universal fixing brackets, Canalis KS 500A to 1000A, wall or suspended on threaded rod KSB1000ZF1
Schneider Electric

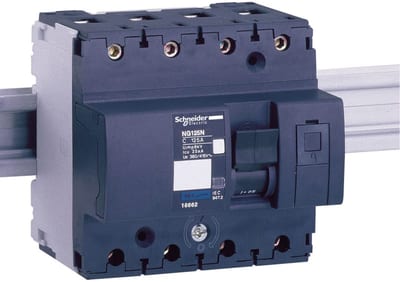

NG125N/C 10-4 Modular Power Switch
18649
Schneider Electric

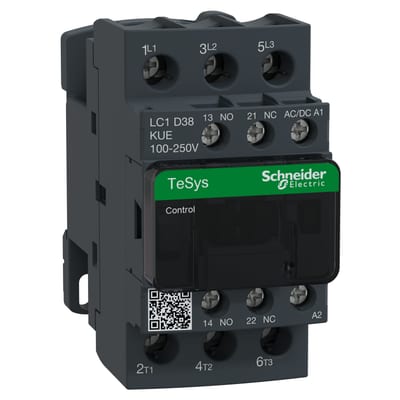

Schneider TeSys D Contactor LC1D38 38A 3P 100-250V AC/DC Coil
